Wastewater/Activity/PacpInspection/1.0Oct 1, 2018, 09:11 AM
H 0630_H 0629_10012018_021420.mp4
- Date
- 10/01/2018
- W/O
- 729980
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00183
- PipeID
- P21384
- Time
- 2:11 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6052
- Sewer Name
- H JOINT OUTFALL H - UNIT 7B
- City
- CITY OF INDUSTRY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729980_TV15231_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Width
- 39 in.
- Upstream MH
- H 0630
- Downstream MH
- H 0629
- Dir. of Survey
- Downstream
- Length Surveyed
- 379.2 ft.
- Total Length
- 379.2 ft.
- Structural Index
- 3
- Structural Quick
- 513N
- Structural Rating
- 380
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 150
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 530
Observation photos (4)

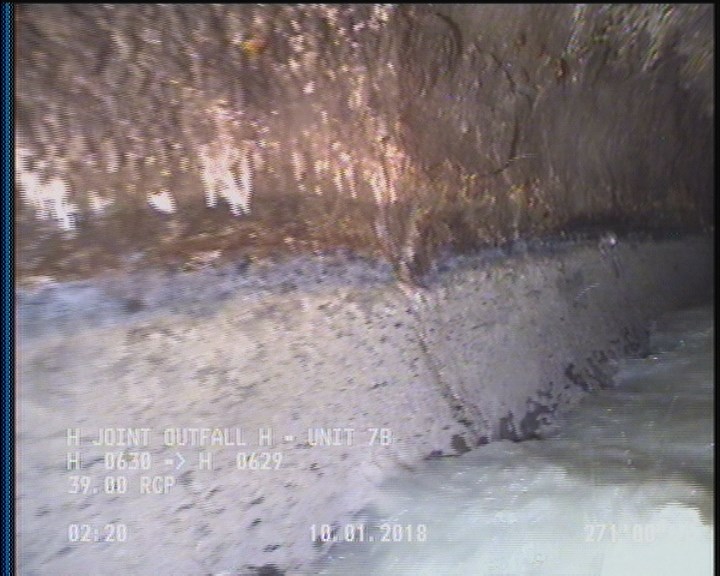

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

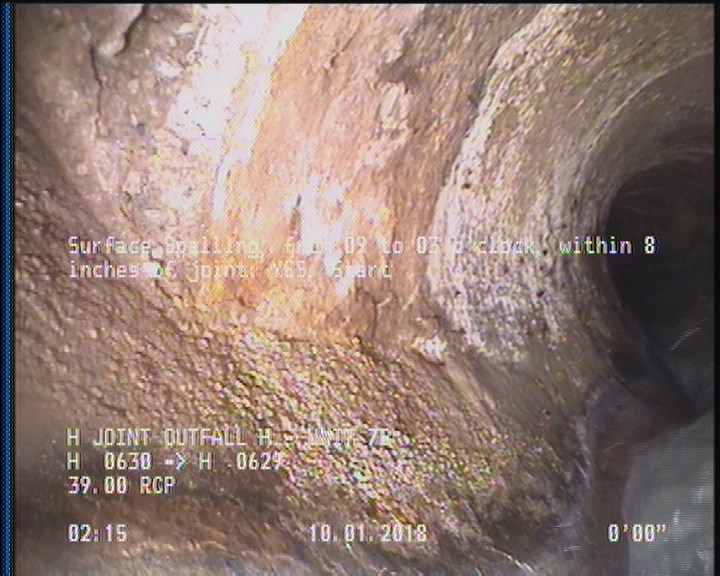

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

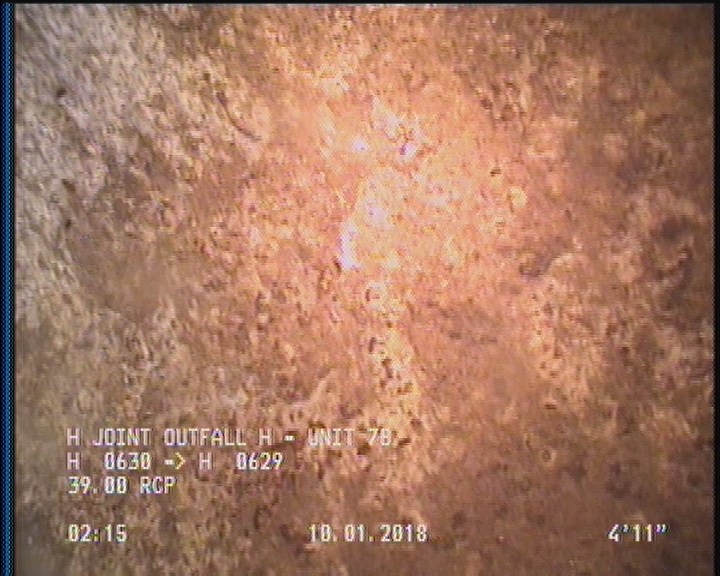

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

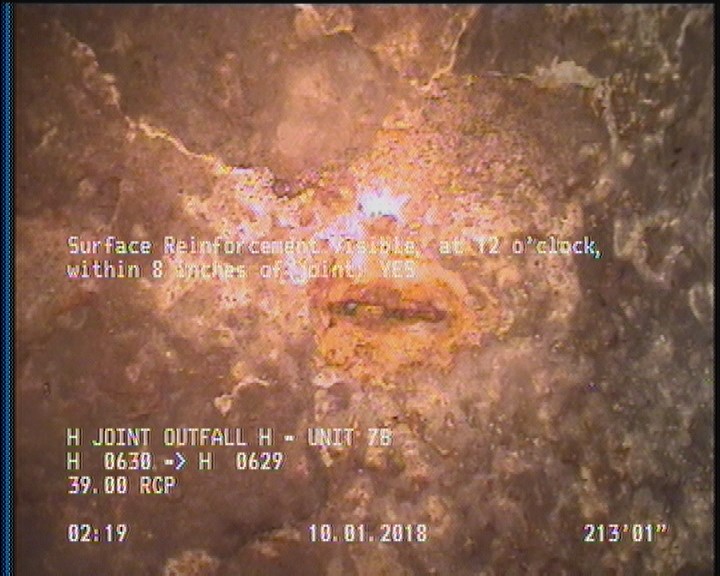

213.1 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 376.8 | DAGS | — |
| 379.2 | AMH | H 0629 |
| 376.8 | SSS | — |
| 2 | DAGS | — |
| 2 | SSS | — |
| 376.8 | SAP | — |
| 0 | AMH | H 0630 |
| 207.9 | TBA | — |
| 2 | SAP | — |
| 376.8 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 0 | MWL | — |
| 213.1 | SRV | — |
Properties (4)
- additional_info
- SC365115
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-01T02:11:51-07:00
