Wastewater/Activity/PacpInspection/1.0Oct 11, 2018, 07:34 AM
02 1981_02 1178 _11102018_003435.mp4
- Date
- 10/11/2018
- W/O
- 729453
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00236
- PipeID
- P04174
- Time
- 12:34 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6143
- Sewer Name
- 02 ATLANTIC AVENUE RELIEF TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729453_TV02017_OCT2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1981
- Downstream MH
- 02 1178
- Dir. of Survey
- Downstream
- Length Surveyed
- 220.3 ft.
- Total Length
- 220.3 ft.
- Structural Index
- 3
- Structural Quick
- 3H2G
- Structural Rating
- 213
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 213
Observation photos (2)

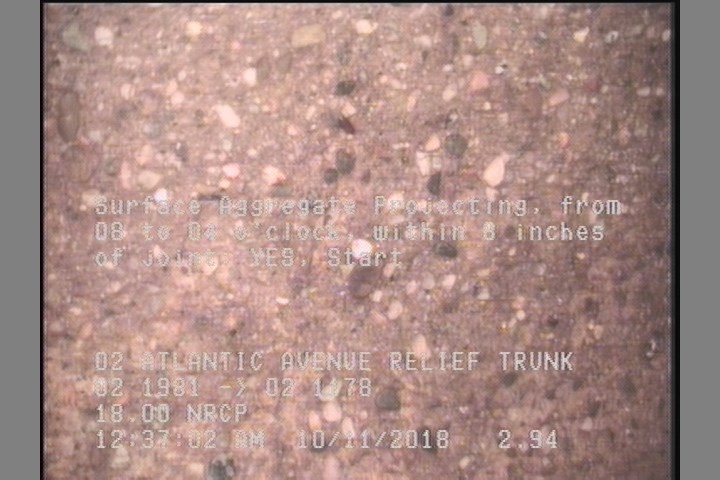

2.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

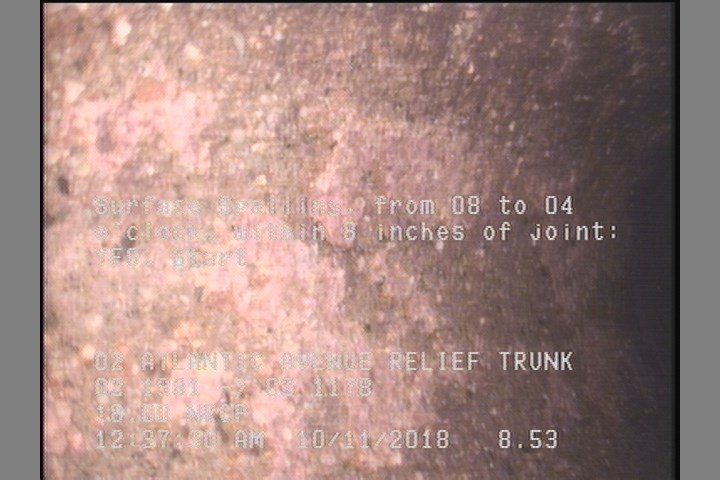

8.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 8.5 | SSS | — |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 220.3 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 220.3 | SAP | — |
| 0 | MWM | — |
| 220.3 | SSS | — |
| 0 | AMH | 02 1981 |
| 220.3 | AMH | 02 1178 |
| 2.9 | SAP | — |
Properties (4)
- additional_info
- SC365210
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-11T00:34:10-07:00
