Wastewater/Activity/PacpInspection/1.0Mar 23, 2018, 05:19 AM
B 0229_B 0228 _22032018_225733.mp4
- Date
- 03/22/2018
- W/O
- 619315
- Weather
- Heavy Rain
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00085
- PipeID
- P08809
- Time
- 10:19 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5509
- Sewer Name
- B JOINT OUTFALL B - UNIT 2B
- City
- SOUTH EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_691315_TV15102_MAR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Width
- 57 in.
- Upstream MH
- B 0229
- Downstream MH
- B 0228
- Dir. of Survey
- Downstream
- Length Surveyed
- 1324 ft.
- Total Length
- 1324 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

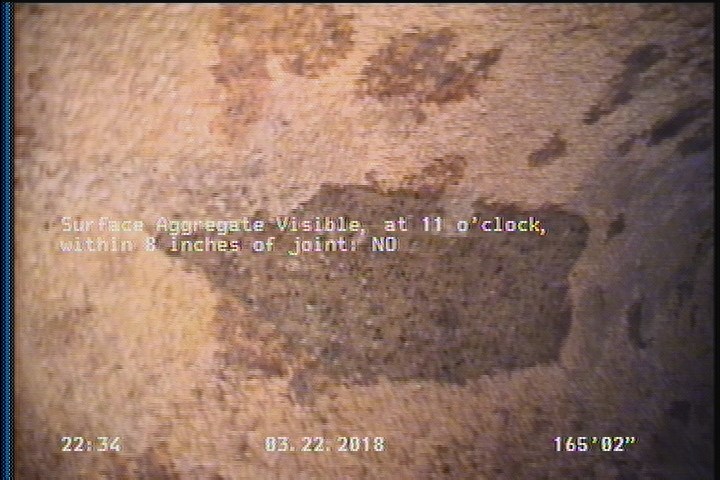

165.1 ft. - Surface Aggregate Visible, at 11 o'clock, within 8 inches of joint: NO

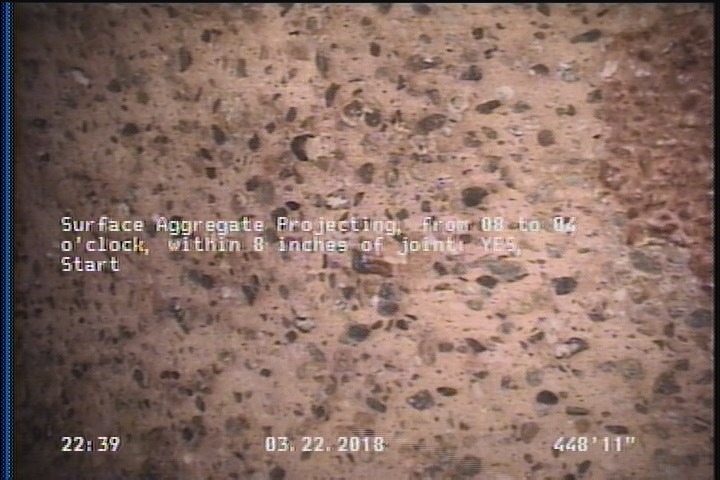

448.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 0229 |
| 2.1 | MGO | MAG COAT |
| 1320.1 | MGO | LATERAL AT MH 9 OCLOCK |
| 1324 | AMH | B 0228 |
| 0 | MWM | — |
| 0 | MWL | — |
| 1270.2 | SAP | — |
| 448.9 | SAP | — |
| 165.1 | SAV | — |
Properties (5)
- additional_info
- SC358714
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-03-22T22:19:03-07:00
- is_lateral_inspection
- false
