Wastewater/Activity/PacpInspection/1.0Jan 26, 2017, 04:01 PM
21 0276_21 0275A _26012017_081022.mpg
- Date
- 01/26/2017
- W/O
- 613609
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00763
- PipeID
- P25924
- Time
- 8:01 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4134
- Sewer Name
- 21 DISTRICT #21 OUTFALL TRUNK
- City
- WALNUT
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- WO_613609_TV21044_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 21 0276
- Downstream MH
- 21 0275A
- Dir. of Survey
- Downstream
- Length Surveyed
- 386.6 ft.
- Total Length
- 386.6 ft.
- Structural Index
- 3
- Structural Quick
- 3N2C
- Structural Rating
- 266
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 266
Observation photos (3)

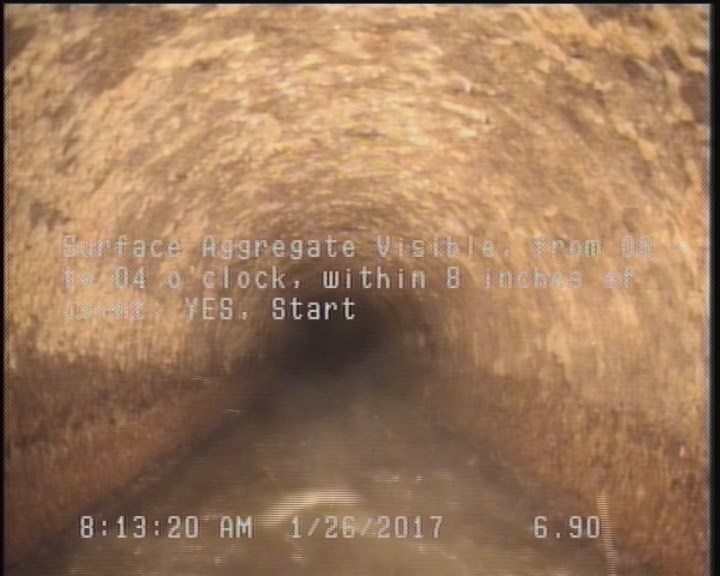

6.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

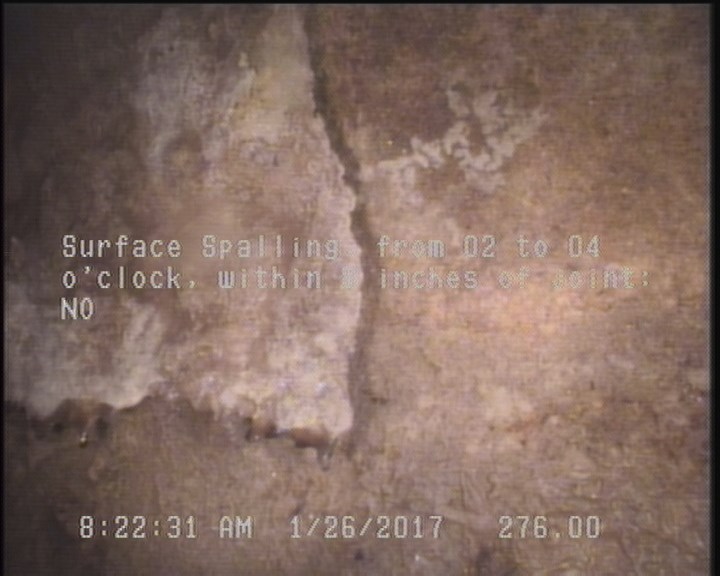

276 ft. - Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO

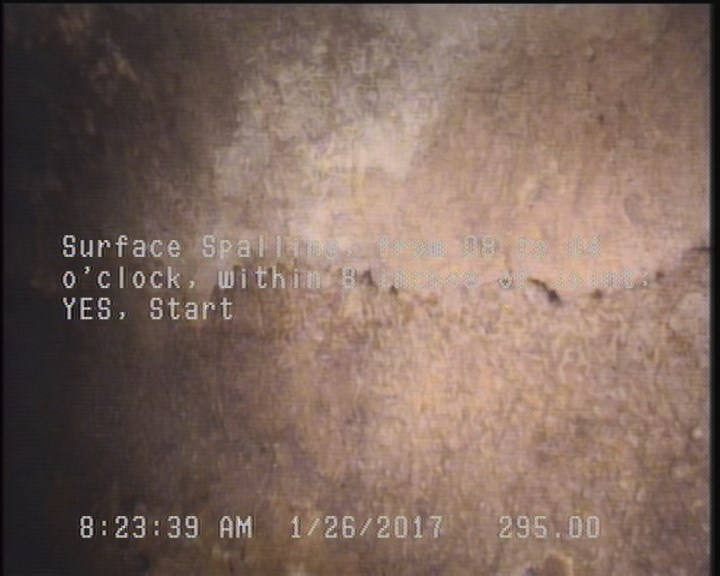

295 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 77 | TF | — |
| 0 | MWM | — |
| 386.6 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 386.6 | AMH | 21 0275a |
| 0 | MWL | — |
| 6.9 | SAV | — |
| 386.6 | SSS | — |
| 295 | SSS | — |
| 386.6 | SAV | — |
| 0 | AMH | 21 0276 |
| 276 | SSS | — |
Properties (6)
- additional_info
- SC306490
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-01-26T08:01:55-08:00
- is_lateral_inspection
- false
- year_laid
- 39052
