Wastewater/Activity/PacpInspection/1.0Oct 15, 2018, 07:56 AM
H 0295_H 0294 _15102018_011421.mp4
- Date
- 10/15/2018
- W/O
- 729712
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00174
- PipeID
- P10750
- Time
- 12:56 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6149
- Sewer Name
- H JOINT OUTFALL H - UNIT 3
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_729712_TV02323_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Width
- 57 in.
- Upstream MH
- H 0295
- Downstream MH
- H 0294
- Dir. of Survey
- Downstream
- Length Surveyed
- 296.1 ft.
- Total Length
- 296.1 ft.
- Structural Index
- 4
- Structural Quick
- 5K3K
- Structural Rating
- 472
- O&M Index
- 3
- O&M Quick
- 3K00
- O&M Rating
- 177
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 649
Observation photos (3)

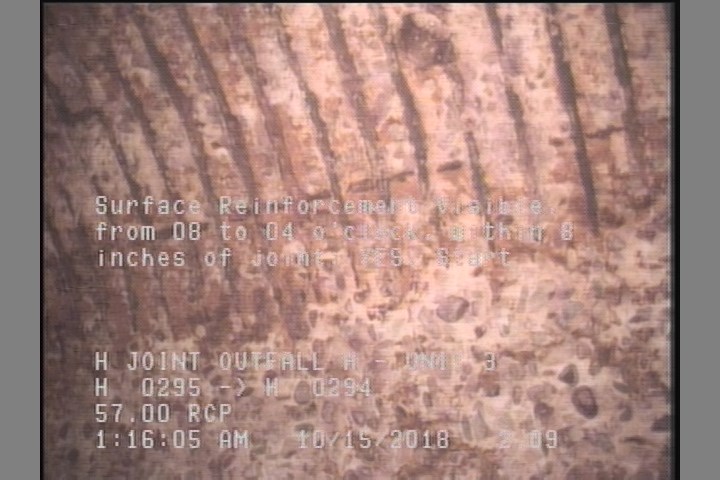

2.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

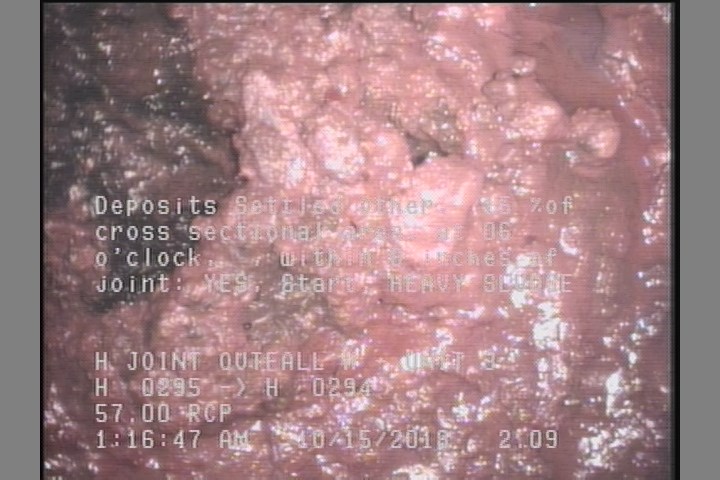

2.1 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start - HEAVY SLUDGE

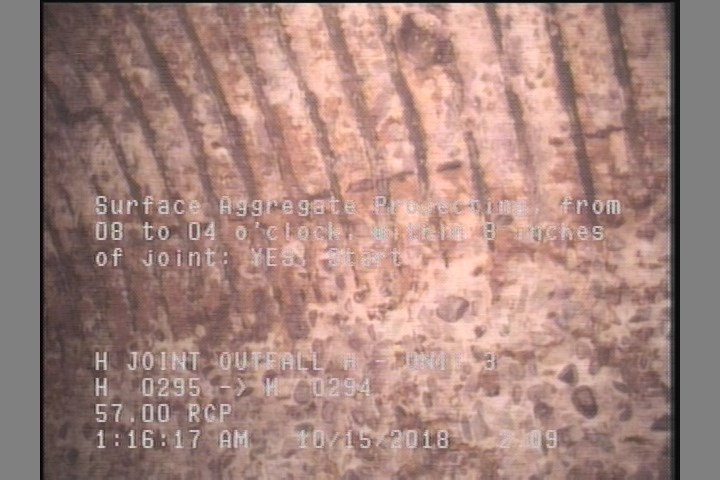

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 295.8 | TF | — |
| 0 | MWL | — |
| 296.1 | DSZ | — |
| 0 | MWM | — |
| 2.1 | SRV | — |
| 2.1 | DSZ | HEAVY SLUDGE |
| 296 | SRV | — |
| 296.1 | MSA | CAM BLKD BY HEAVY SLUDGE |
| 2.1 | SAP | — |
| 296 | SAP | — |
| 0 | AMH | H 0295 |
Properties (4)
- additional_info
- SC365216
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-10-15T00:56:48-07:00
