Wastewater/Activity/PacpInspection/1.0Oct 15, 2018, 09:20 AM
H 0292_H 0291 _15102018_022103.mp4
- Date
- 10/15/2018
- W/O
- 729712
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00174
- PipeID
- P10747
- Time
- 2:20 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6149
- Sewer Name
- H JOINT OUTFALL H - UNIT 3
- City
- PICO RIVERA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_729712_TV02323_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 57 in.
- Width
- 57 in.
- Upstream MH
- H 0291
- Downstream MH
- H 0292
- Dir. of Survey
- Upstream
- Length Surveyed
- 479.3 ft.
- Total Length
- 479.3 ft.
- Structural Index
- 4
- Structural Quick
- 5O3R
- Structural Rating
- 695
- O&M Index
- 3
- O&M Quick
- 3R00
- O&M Rating
- 285
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 980
Observation photos (4)

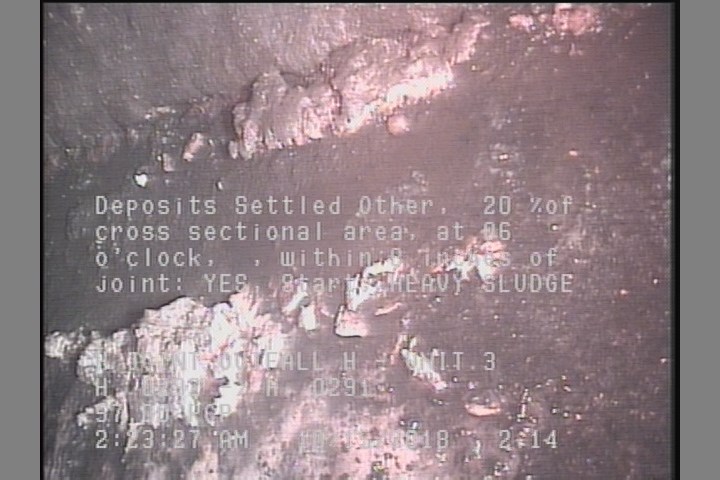

2.1 ft. - Deposits Settled Other, 20 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start - HEAVY SLUDGE

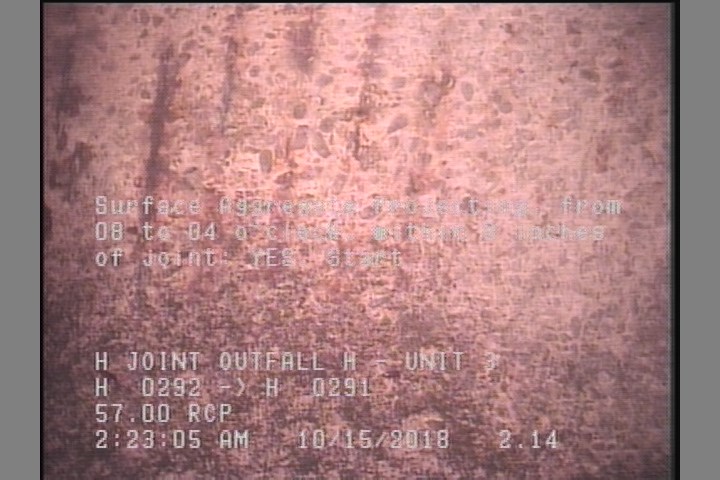

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

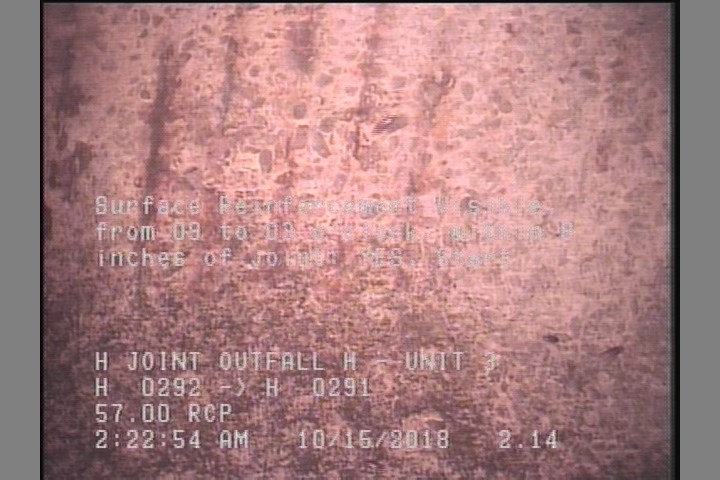

2.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

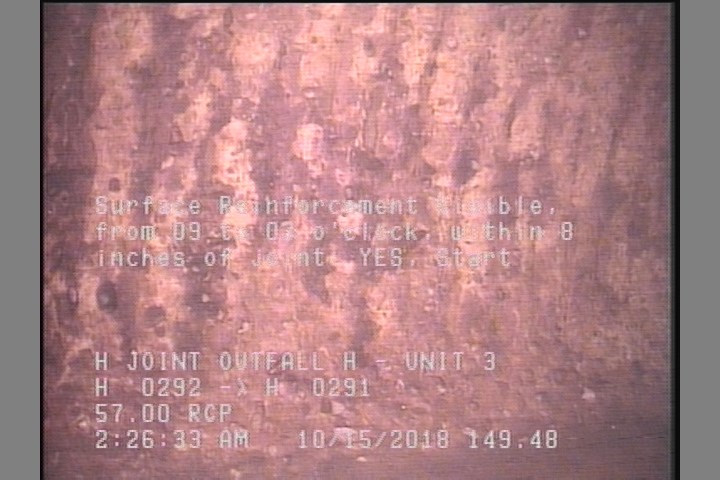

149.5 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 479.2 | DSZ | — |
| 467.4 | TFC | — |
| 2.1 | DSZ | HEAVY SLUDGE |
| 0 | MWM | — |
| 81.4 | SRV | — |
| 2.1 | SAP | — |
| 479.2 | SRV | — |
| 149.5 | SRV | — |
| 0 | MWL | — |
| 479.3 | AMH | H 0292 |
| 0 | AMH | H 0291 |
| 479 | SAP | — |
| 2.1 | SRV | — |
Properties (4)
- additional_info
- SC365216
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-15T02:20:29-07:00
