Wastewater/Activity/PacpInspection/1.0Oct 16, 2018, 06:35 AM
16 0161_16 0160_15102018_233614.mp4
- Date
- 10/15/2018
- W/O
- 729608
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00648
- PipeID
- P13193
- Time
- 11:35 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6168
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 5
- City
- SOUTH PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_729608_TV30018_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0161
- Downstream MH
- 16 0160
- Dir. of Survey
- Downstream
- Length Surveyed
- 415.9 ft.
- Total Length
- 415.9 ft.
- Structural Index
- 3
- Structural Quick
- 3N00
- Structural Rating
- 231
- O&M Index
- 2
- O&M Quick
- 2P00
- O&M Rating
- 168
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 399
Observation photos (3)

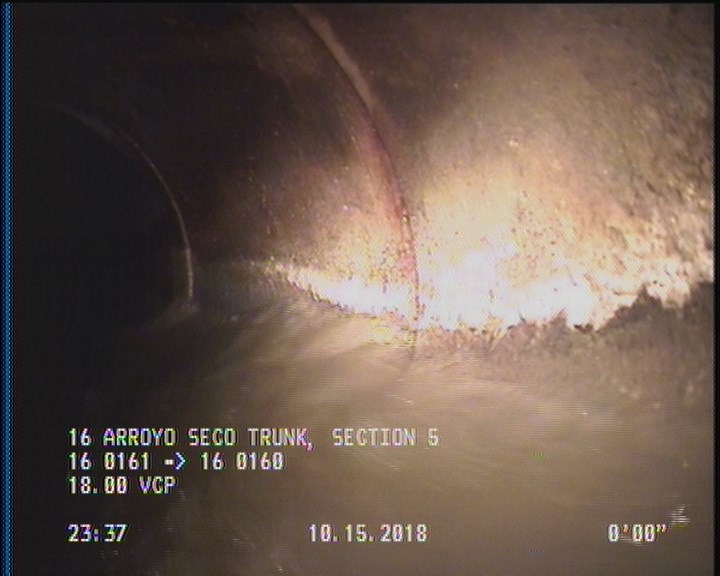

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

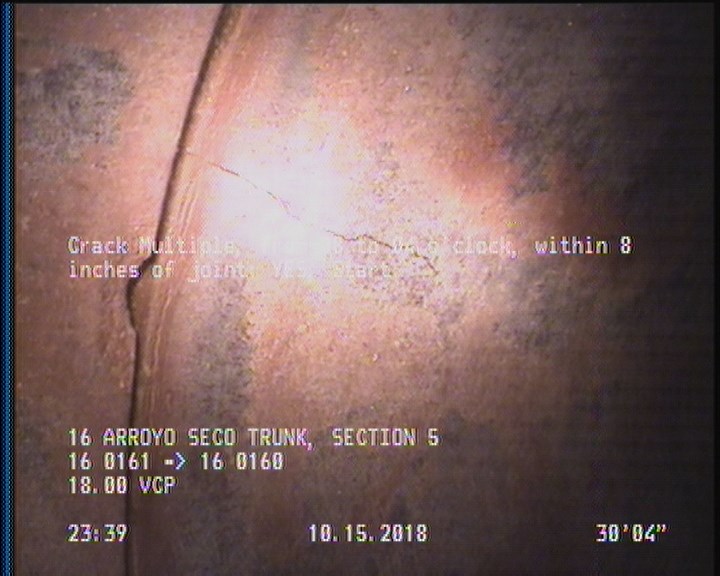

30.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

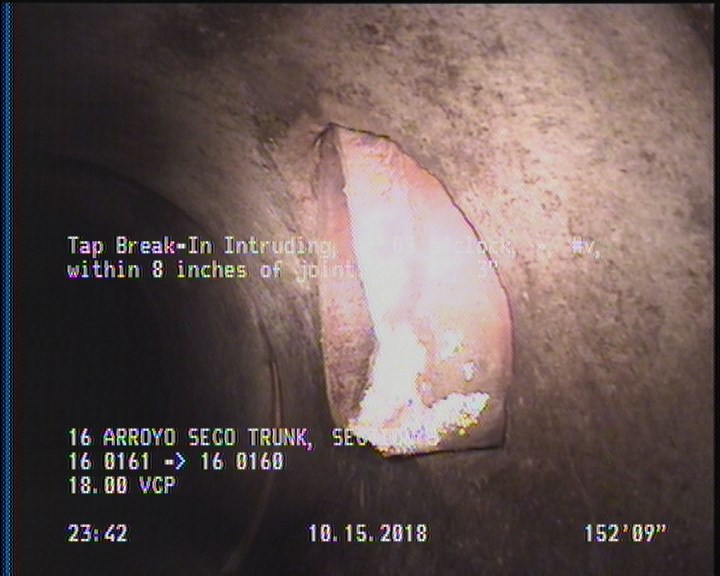

152.8 ft. - Tap Break-In Intruding, at 03 o'clock, -, #v, within 8 inches of joint: NO, 6", 3"
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 413.8 | CM | — |
| 0 | MWL | — |
| 0 | DAGS | — |
| 413.8 | DAGS | — |
| 0 | MWM | — |
| 415.9 | AMH | 16 0160 |
| 30.3 | CM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 10 O'CLOCK |
| 0 | AMH | 16 0161 |
| 152.8 | TBI | — |
Properties (4)
- additional_info
- SC365136
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-15T23:35:57-07:00
