Wastewater/Activity/PacpInspection/1.0Oct 18, 2018, 06:53 AM
16 0182_16 0181_17102018_235447.mp4
- Date
- 10/17/2018
- W/O
- 729608
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00648
- PipeID
- P13214
- Time
- 11:53 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6172
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 5
- City
- SOUTH PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_729608_TV30018_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 16 0182
- Downstream MH
- 16 0181
- Dir. of Survey
- Downstream
- Length Surveyed
- 130.8 ft.
- Total Length
- 130.8 ft.
- Structural Index
- 2
- Structural Quick
- 3121
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

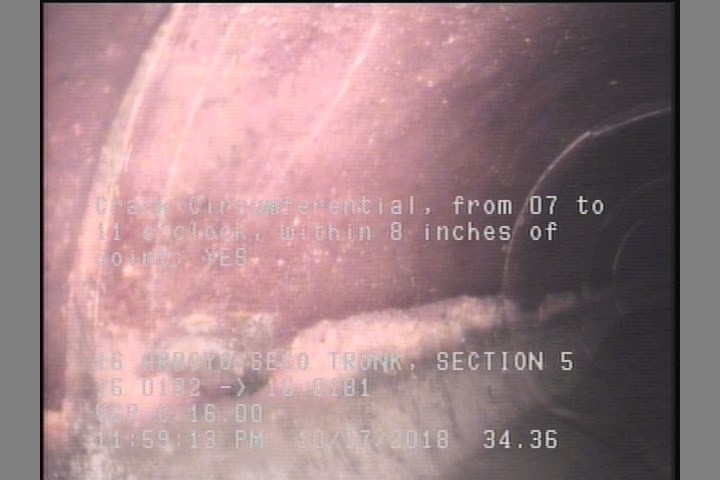

34.4 ft. - Crack Circumferential, from 07 to 11 o'clock, within 8 inches of joint: YES

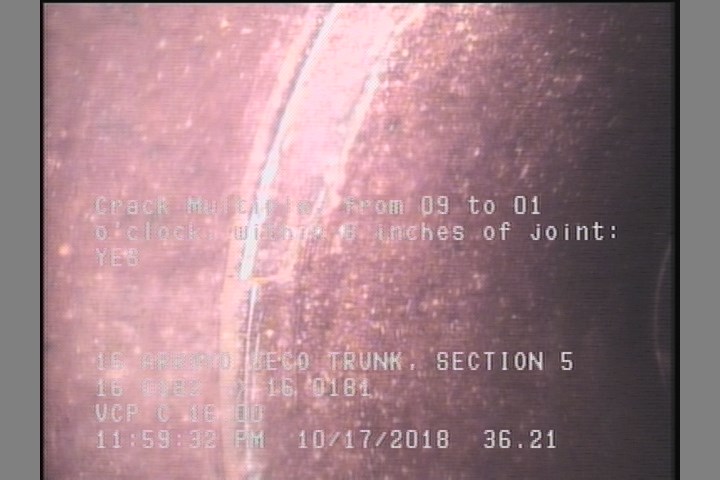

36.2 ft. - Crack Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES

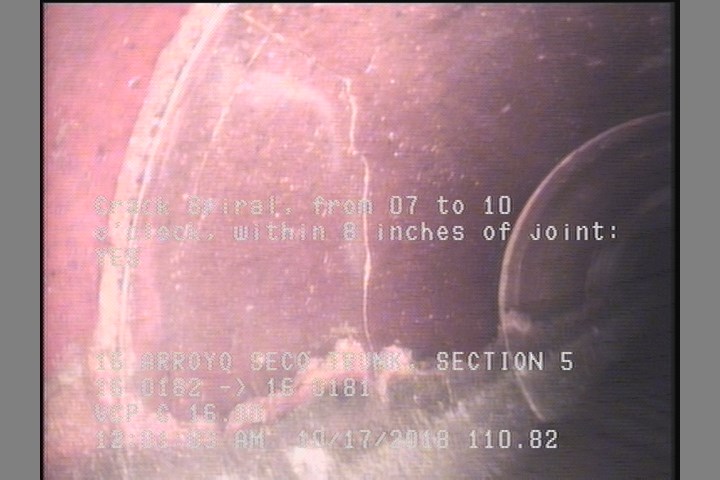

110.8 ft. - Crack Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 34.4 | CC | — |
| 130.8 | AMH | 16 0181 |
| 130.8 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 110.8 | CS | — |
| 0 | MWM | — |
| 0 | AMH | 16 0182 |
| 36.2 | CM | — |
Properties (4)
- additional_info
- SC365224
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-10-17T23:53:45-07:00
