Wastewater/Activity/PacpInspection/1.0Oct 16, 2018, 05:13 AM
16 0166_16 0165_15102018_221327.mp4
- Date
- 10/15/2018
- W/O
- 729608
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00648
- PipeID
- P13198
- Time
- 10:13 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6168
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 5
- City
- SOUTH PASADENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_729608_TV30018_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0166
- Downstream MH
- 16 0165
- Dir. of Survey
- Downstream
- Length Surveyed
- 368.7 ft.
- Total Length
- 368.7 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 216
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 146
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 362
Observation photos (3)

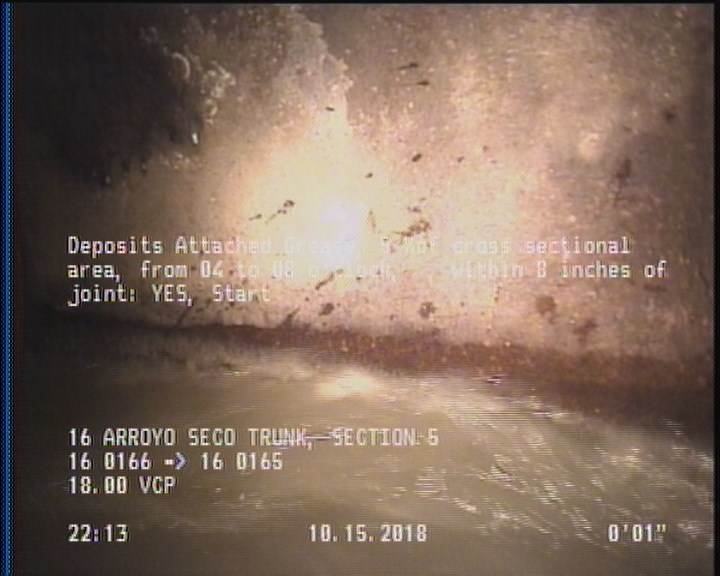

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

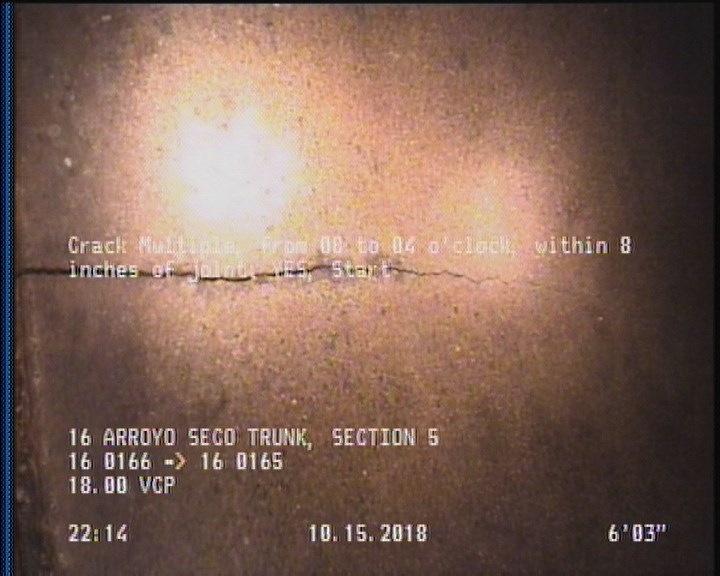

6.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

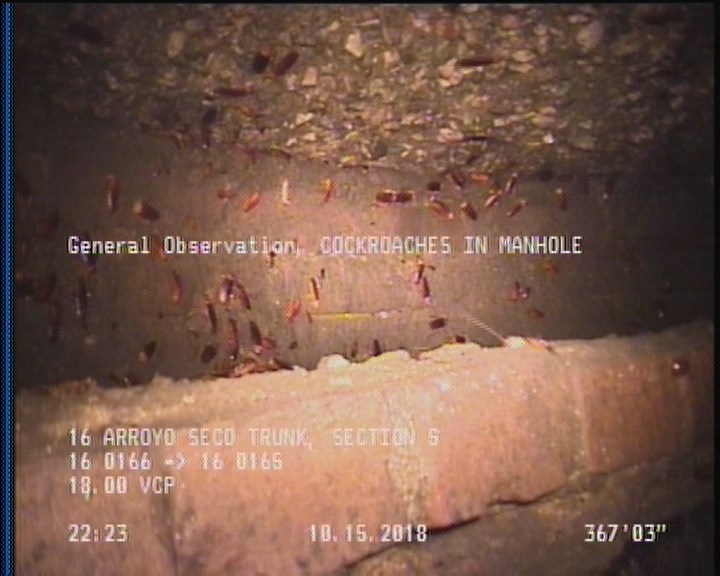

367.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWL | — |
| 6.3 | CM | — |
| 0 | MWM | — |
| 367.2 | DAGS | — |
| 0 | AMH | 16 0166 |
| 367.2 | MGO | COCKROACHES IN MANHOLE |
| 367.2 | CM | — |
| 368.7 | AMH | 16 0165 |
Properties (4)
- additional_info
- SC365136
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-15T22:13:09-07:00
