Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 16, 2018, 08:12 AM

  • 16 0150_16 0149_16102018_011338.mp4

Date
10/16/2018
W/O
729608
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00648
PipeID
P13182
Time
1:12 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6168
Sewer Name
16 ARROYO SECO TRUNK, SECTION 5
City
ALHAMBRA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
20
Purpose
Routine Assessment
Project
WO_729608_TV30018_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
16 0150
Downstream MH
16 0149
Dir. of Survey
Downstream
Length Surveyed
279.3 ft.
Total Length
279.3 ft.
Structural Index
3
Structural Quick
3C21
Structural Rating
62
O&M Index
2
O&M Quick
2J00
O&M Rating
110
Overall Index
2
Overall Quick
—
Overall Rating
172
Pipe schematic from manhole 16 0150 to 16 0149
MH: 16 0150MH: 16 0149downstream0 ft. AMH - Upstream Manhole, Survey Begins - 16 01500 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start8.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"43.9 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"56.4 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"103.8 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"105.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES111 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"150.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"175.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES183.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start193.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"202.1 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 6"204.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"277.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish277.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish279.3 ft. AMH - Downstream Manhole, Survey Ends - 16 0149

Observation photos (4)

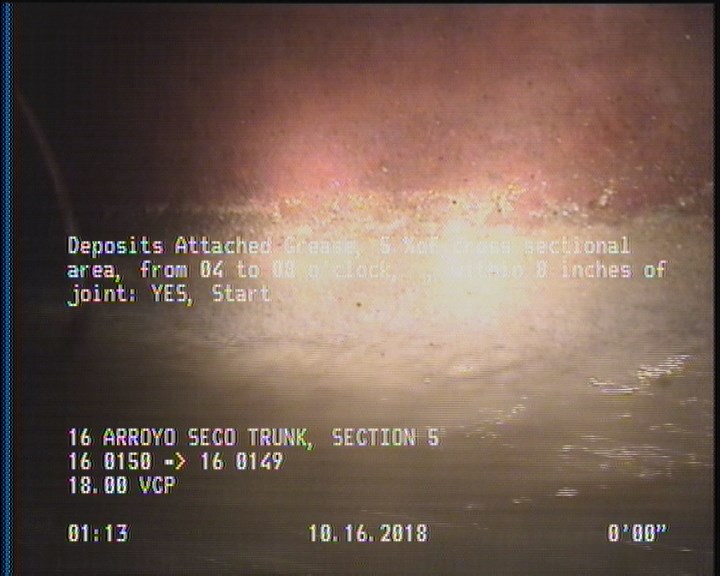

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

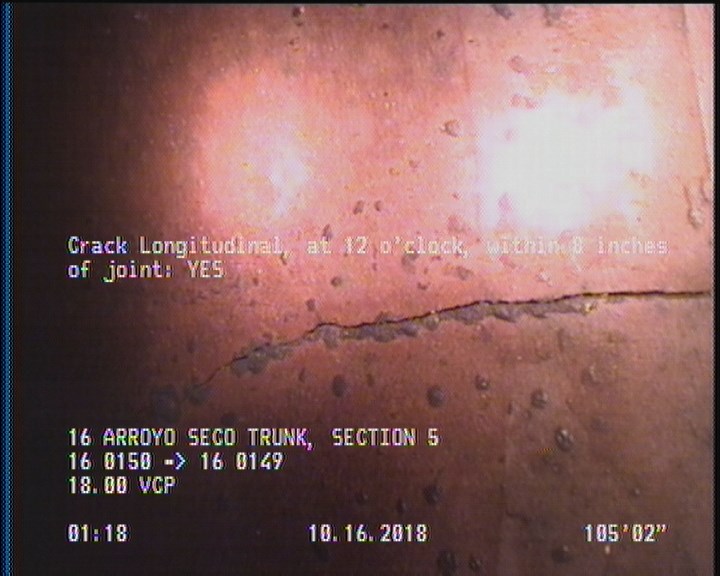

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    105.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

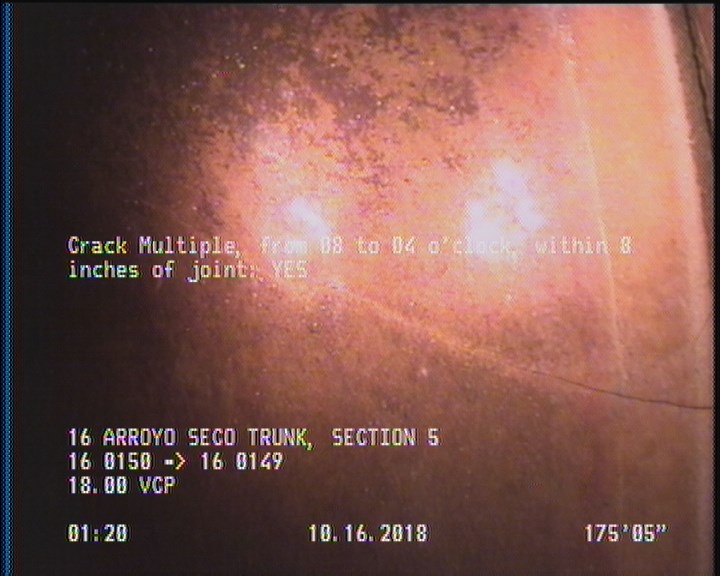

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    175.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

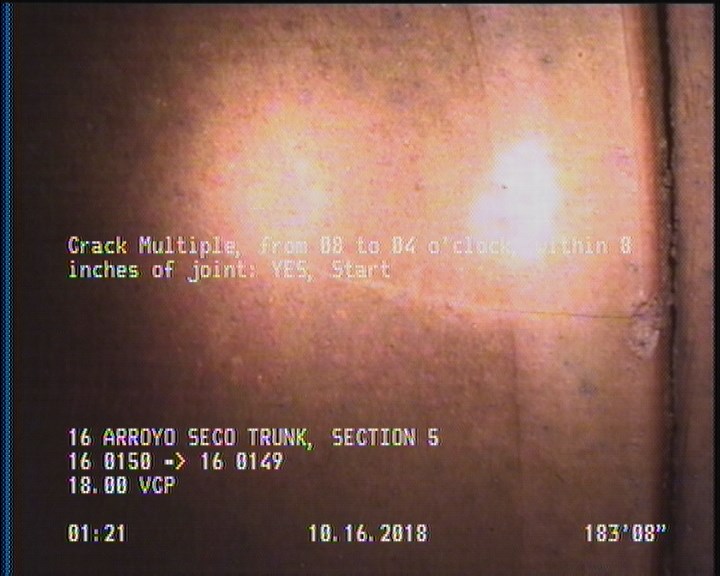

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    183.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P13182Work order 729608

Observations (19)

DistanceCodeObservation
0AMH16 0150
204.6TFC—
0MWL—
202.1TBA—
2DAGS—
277.6DAGS—
0MWM—
175.4CM—
56.4TFA—
103.8TFC—
105.2CL—
279.3AMH16 0149
183.7CM—
8.6TFA—
43.9TBA—
277.6CM—
111TFA—
150.5TFA—
193.7TF—

Properties (3)

additional_info
SC365136
customer
LACSD
datetime
2018-10-16T01:12:51-07:00
