Wastewater/Activity/PacpInspection/1.0Aug 29, 2018, 06:37 AM
14 1115_14 1114_08282018_233728.mp4
- Date
- 08/28/2018
- W/O
- 724009
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01179
- PipeID
- P26067
- Time
- 11:37 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6020
- Sewer Name
- 14 WEST SIDE RELIEF TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_724009_TV14056_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 14 1115
- Downstream MH
- 14 1114
- Dir. of Survey
- Downstream
- Length Surveyed
- 96.4 ft.
- Total Length
- 96.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 38
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 38
Observation photos (1)

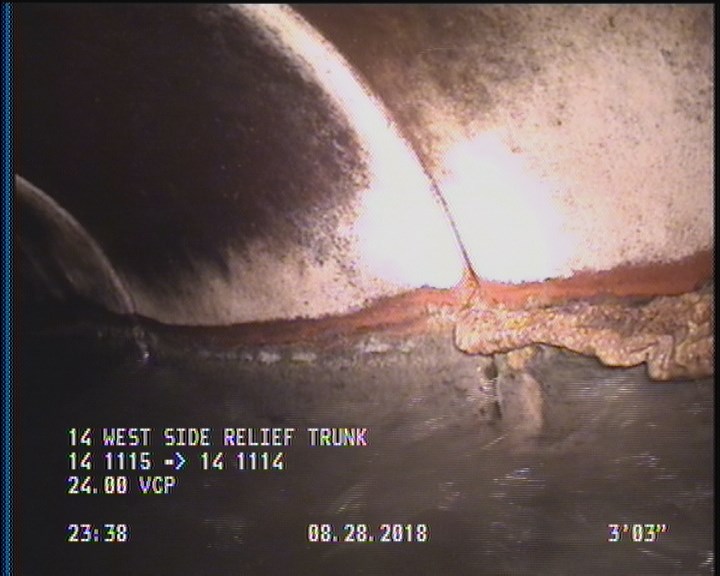

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 96.4 | MGO | ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK |
| 0 | MWL | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 95 | DAGS | — |
| 0 | AMH | 14 1115 |
| 96.4 | AMH | 14 1114 |
Properties (5)
- additional_info
- SC364784
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-08-28T23:37:12-07:00
- year_laid
- 40175
