Wastewater/Activity/PacpInspection/1.0Aug 28, 2018, 07:29 AM
14 1092_14 1091 _08282018_003003.mp4
- Date
- 08/28/2018
- W/O
- 724009
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01179
- PipeID
- P26044
- Time
- 12:29 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6019
- Sewer Name
- 14 WEST SIDE RELIEF TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_724009_TV14056_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 14 1092
- Downstream MH
- 14 1091
- Dir. of Survey
- Downstream
- Length Surveyed
- 198.2 ft.
- Total Length
- 198.2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 156
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 156
Observation photos (2)

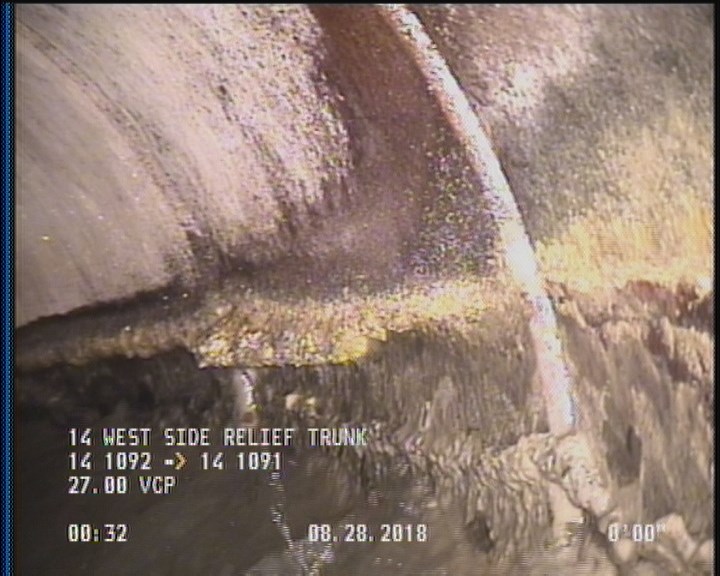

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

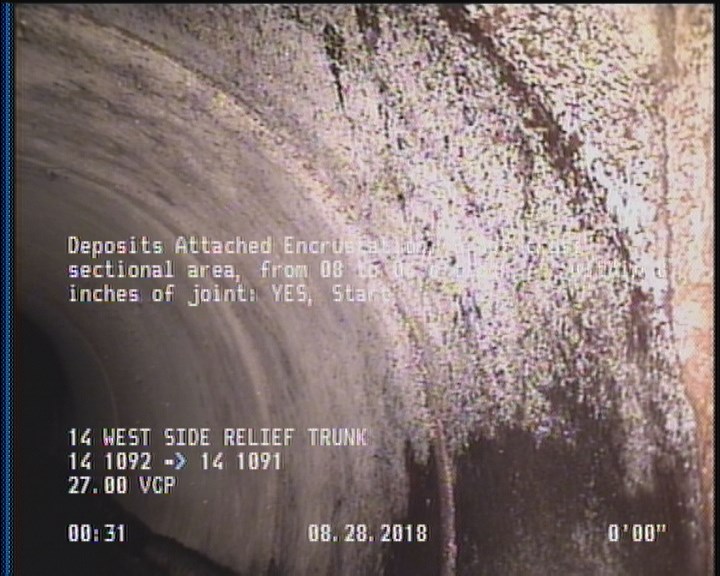

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK., |
| 178.1 | TFA | — |
| 0 | AMH | 14 1092 |
| 198.2 | AMH | 14 1091 |
| 99 | TFA | — |
| 2 | DAGS | — |
| 71.5 | TFA | — |
| 191.6 | TFA | — |
| 197.8 | DAE | — |
| 0 | MWM | — |
| 197.8 | DAGS | — |
| 0 | MWL | — |
| 2 | DAE | — |
Properties (5)
- additional_info
- SC364783
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-08-28T00:29:48-07:00
- year_laid
- 40175
