Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 27, 2018, 10:39 AM

  • 14 1106_14 1105_08272018_033927.mp4

Date
08/27/2018
W/O
724009
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01179
PipeID
P26058
Time
3:39 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6018
Sewer Name
14 WEST SIDE RELIEF TRUNK
City
LANCASTER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
10
Purpose
Routine Assessment
Project
WO_724009_TV14056_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
14 1105
Downstream MH
14 1106
Dir. of Survey
Upstream
Length Surveyed
331.4 ft.
Total Length
331.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2L00
O&M Rating
132
Overall Index
2
Overall Quick
—
Overall Rating
132
Pipe schematic from manhole 14 1105 to 14 1106
MH: 14 1105MH: 14 1106upstream0 ft. AMH - Upstream Manhole, Survey Ends - 14 11061.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish68.6 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"117 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"121.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"170.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"212.5 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"216.4 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 6"264.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"313.3 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"316.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"329.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start331.4 ft. MWL - Water Level, 20 %of cross sectional area331.4 ft. AMH - Downstream Manhole, Survey Begins - 14 1105331.4 ft. MWM - Water Mark, 25 %of cross sectional area

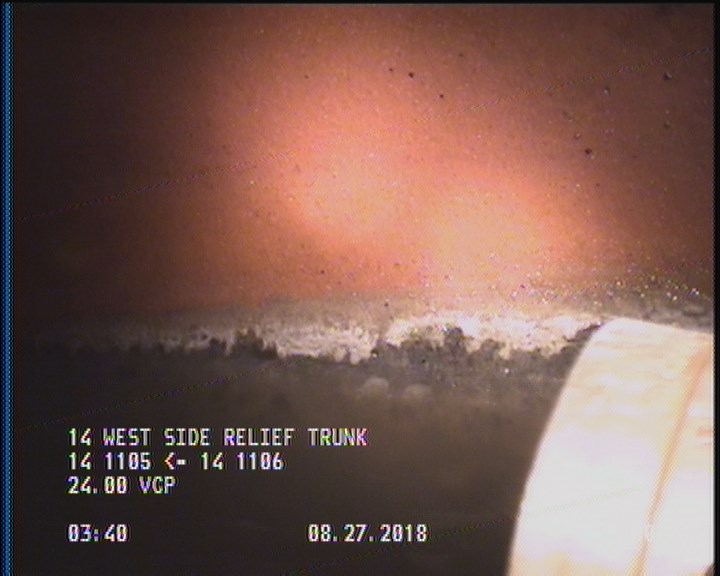

Observation photos (1)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P26058Work order 724009

Observations (15)

DistanceCodeObservation
0MWL—
214.4TFA—
118.9TFA—
262.8TFA—
210.2TFA—
14.7TFA—
329.8DAGS—
331.4AMH14 1106
67.1TFA—
0AMH14 1105
0MWM—
18.1TFA—
115TFA—
2DAGS—
160.9TF—

Properties (5)

additional_info
SC364782
custom_field_two
4
customer
LACSD
datetime
2018-08-27T03:39:04-07:00
year_laid
40175
