Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 11, 2018, 08:01 AM

  • 22 0518_22 0517 _11092018_010142.mp4

Date
09/11/2018
W/O
723897
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00791
PipeID
P16858
Time
1:01 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5999
Sewer Name
22 BEN LOMOND TRUNK
City
GLENDORA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
26
Purpose
Routine Assessment
Project
WO_723897_TV22102_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0518
Downstream MH
22 0517
Dir. of Survey
Downstream
Length Surveyed
330 ft.
Total Length
330 ft.
Structural Index
3
Structural Quick
423K
Structural Rating
185
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
185
Pipe schematic from manhole 22 0518 to 22 0517
MH: 22 0518MH: 22 0517downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 05180 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area6.9 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start8.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start13.3 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Finish19.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish34.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start36.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"41 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"163.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"208.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"213.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"264 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"314.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"324.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish330 ft. AMH - Downstream Manhole, Survey Ends - 22 0517

Observation photos (3)

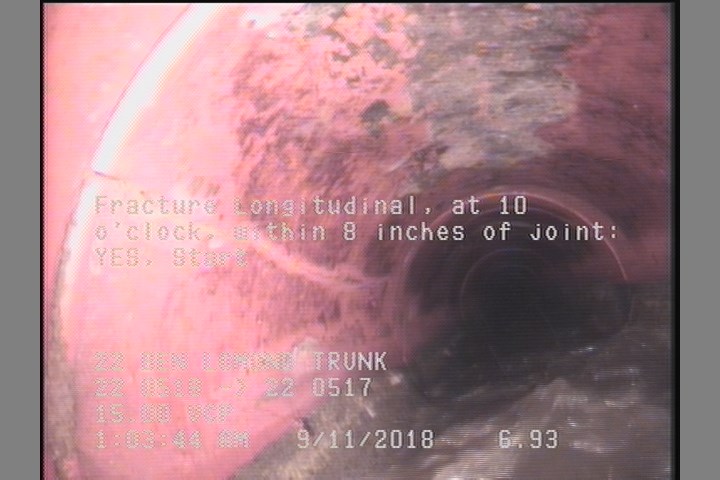

  • Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start

    6.9 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start

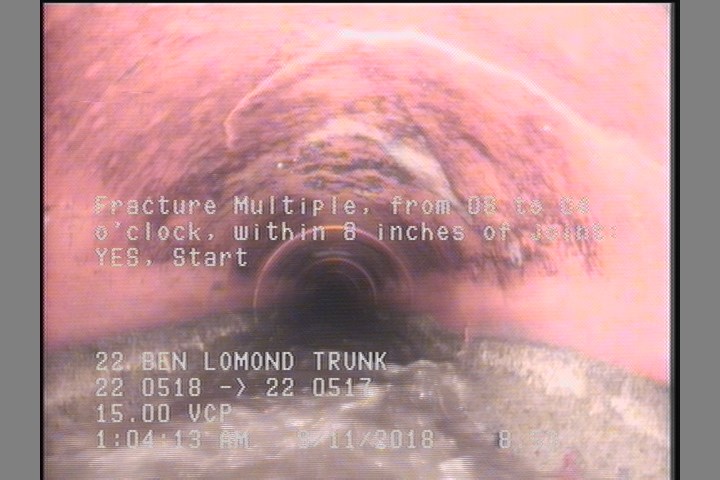

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

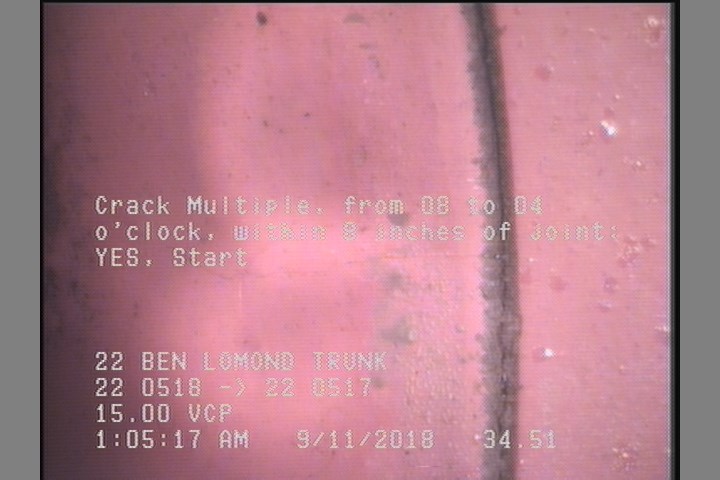

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    34.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P16858Work order 723897

Observations (17)

DistanceCodeObservation
0AMH22 0518
213.1TFC—
6.9FL—
13.3FL—
0MWL—
208.1TFC—
264TFC—
163.3TFC—
314.7TFC—
324.4CM—
36.3TFC—
8.4FM—
34.5CM—
41TFC—
19.2FM—
0MWM—
330AMH22 0517

Properties (4)

additional_info
SC364814
custom_field_two
2
customer
LACSD
datetime
2018-09-11T01:01:18-07:00
