Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 18, 2018, 04:57 AM

  • 02 1924_02 1923_17102018_215742.mp4

Date
10/17/2018
W/O
717878
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00238
PipeID
P04272
Time
9:57 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6171
Sewer Name
02 BELVEDERE TRUNK
City
EAST LOS ANGELES
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
05
Purpose
Routine Assessment
Project
WO_717878_TV02182_AUG2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1924
Downstream MH
02 1923
Dir. of Survey
Downstream
Length Surveyed
244 ft.
Total Length
244 ft.
Structural Index
3
Structural Quick
3G00
Structural Rating
120
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
120
Pipe schematic from manhole 02 1924 to 02 1923
MH: 02 1924MH: 02 1923downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 192421.3 ft. CM - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES42.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES42.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"45.2 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES58 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start223.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"242.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish244 ft. AMH - Downstream Manhole, Survey Ends - 02 1923

Observation photos (4)

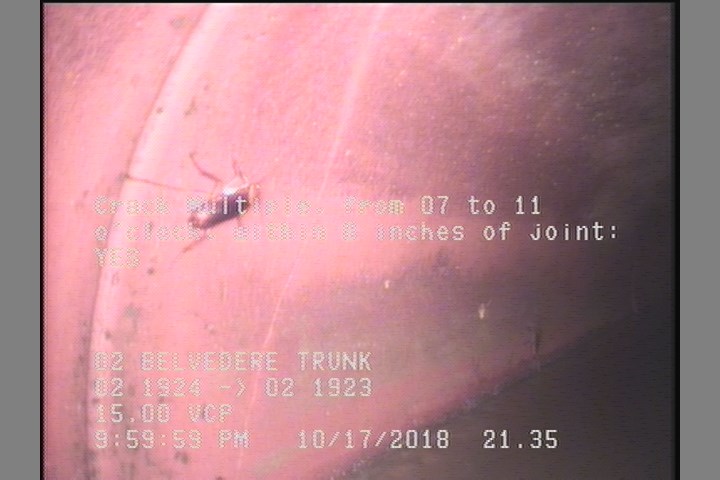

  • Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

    21.3 ft. - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

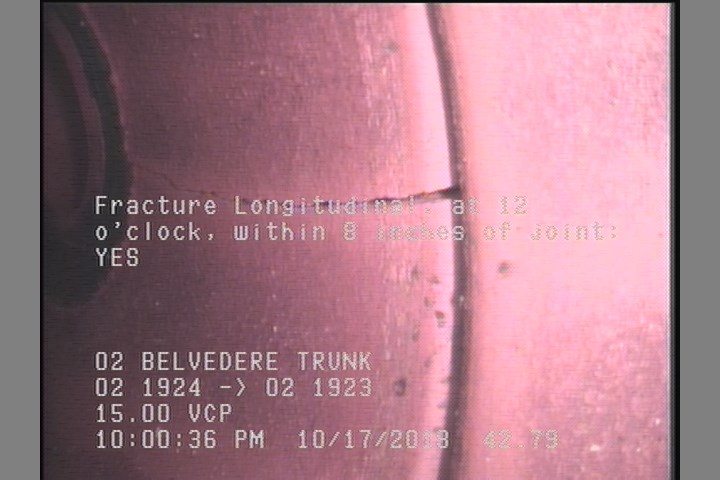

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    42.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

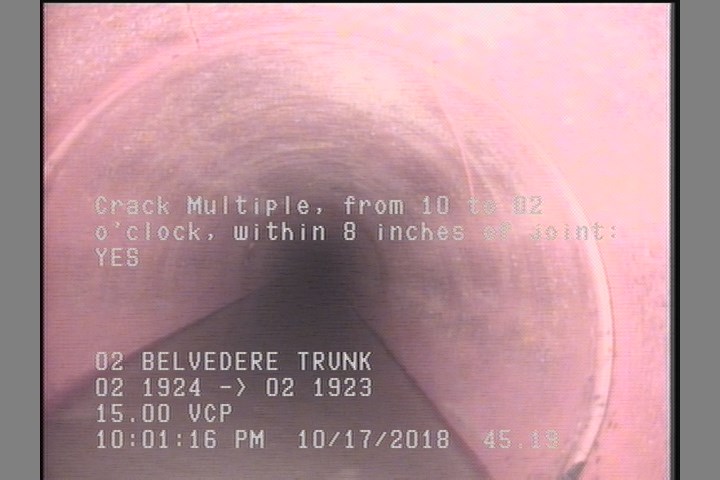

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    45.2 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

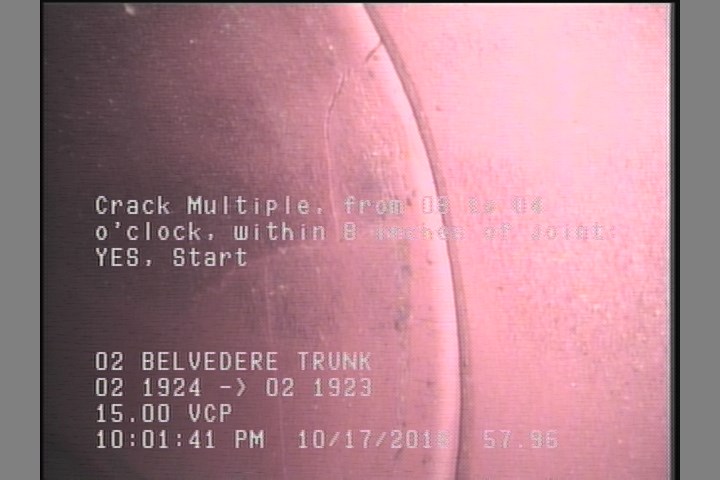

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    58 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P04272Work order 717878

Observations (11)

DistanceCodeObservation
244AMH02 1923
58CM—
0MWL—
0MWM—
242.3CM—
0AMH02 1924
45.2CM—
21.3CM—
223.5TFC—
42.8FL—
42.8TFC—

Properties (4)

additional_info
SC365223
custom_field_two
3
customer
LACSD
datetime
2018-10-17T21:57:36-07:00
