Wastewater/Activity/PacpInspection/1.0Oct 18, 2018, 05:26 AM
02 1930_02 1929_17102018_222734.mp4
- Date
- 10/17/2018
- W/O
- 717878
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00238
- PipeID
- P04716
- Time
- 10:26 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6171
- Sewer Name
- 02 BELVEDERE TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_717878_TV02182_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1930
- Downstream MH
- 02 1929
- Dir. of Survey
- Downstream
- Length Surveyed
- 248.8 ft.
- Total Length
- 248.8 ft.
- Structural Index
- 3
- Structural Quick
- 413H
- Structural Rating
- 147
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 147
Observation photos (3)

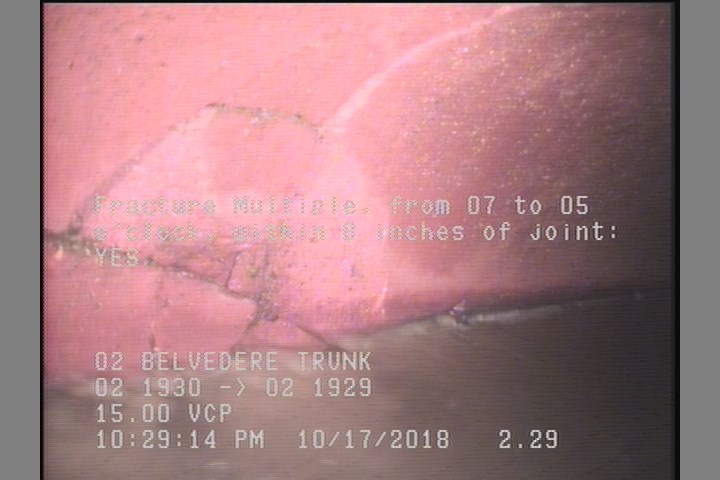

2.3 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

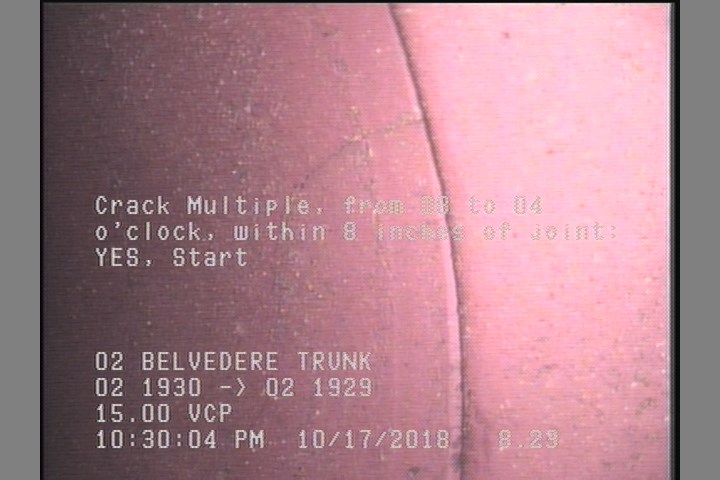

8.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

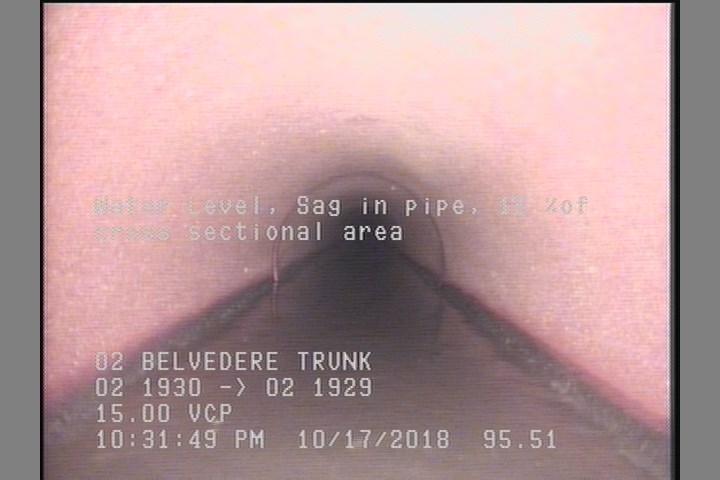

95.5 ft. - Water Level, Sag in pipe, 15 %of cross sectional area
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 1930 |
| 8.2 | CM | — |
| 0 | MWM | — |
| 245.2 | CM | — |
| 95.5 | MWLS | — |
| 248.8 | AMH | 02 1929 |
| 2.3 | FM | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC365223
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-17T22:26:18-07:00
