Wastewater/Activity/PacpInspection/1.0Oct 16, 2018, 07:40 AM
F 0068_F 0067 _16102018_004109.mp4
- Date
- 10/16/2018
- W/O
- 729741
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00035
- PipeID
- P10153
- Time
- 12:40 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6152
- Sewer Name
- F JOINT OUTFALL F - UNIT 3A
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729741_TV02363_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Width
- 60 in.
- Upstream MH
- F 0068
- Downstream MH
- F 0067
- Dir. of Survey
- Downstream
- Length Surveyed
- 228.5 ft.
- Total Length
- 228.5 ft.
- Structural Index
- 4
- Structural Quick
- 5H3H
- Structural Rating
- 360
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 360
Observation photos (2)

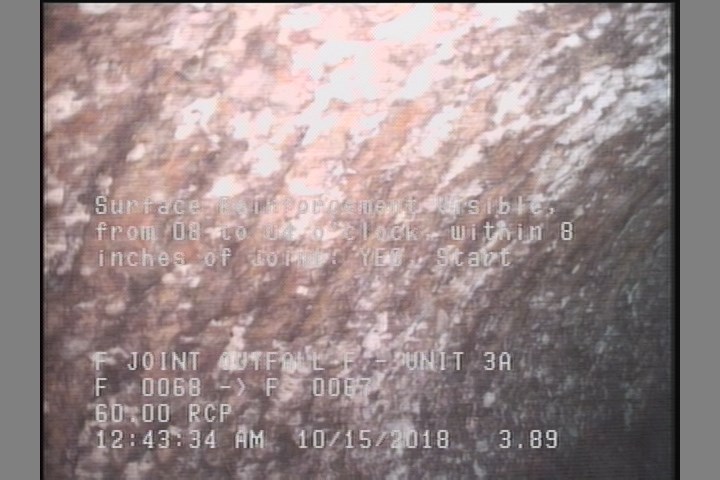

3.9 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

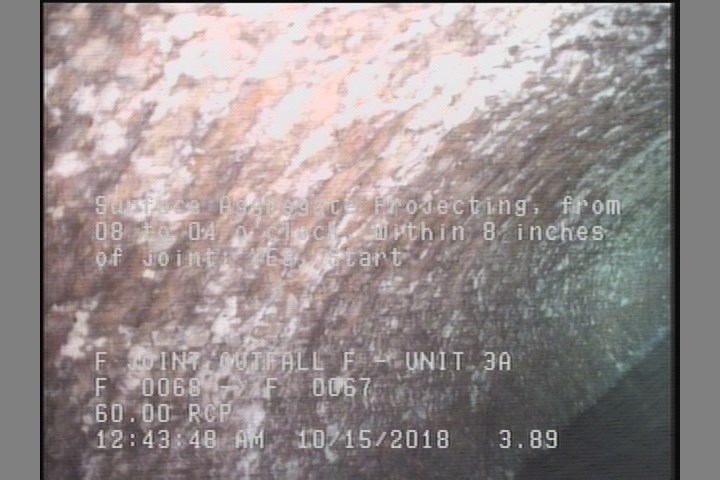

3.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 3.9 | SRV | — |
| 0 | MWL | — |
| 228.4 | SRV | — |
| 3.9 | SAP | — |
| 0 | AMH | F 0068 |
| 228.4 | AMH | F 0067 ZOOMED IN |
| 228.5 | SAP | — |
Properties (4)
- additional_info
- SC365219
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-16T00:40:23-07:00
