Wastewater/Activity/PacpInspection/1.0Oct 16, 2018, 09:08 AM
D 0159_D 0158 _16102018_020902.mp4
- Date
- 10/16/2018
- W/O
- 729710
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00157
- PipeID
- P10035
- Time
- 2:08 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6153
- Sewer Name
- D JOINT OUTFALL D - UNIT 6 RELIEF
- City
- LAWNDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729710_TV05337_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Width
- 39 in.
- Upstream MH
- D 0158
- Downstream MH
- D 0159
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

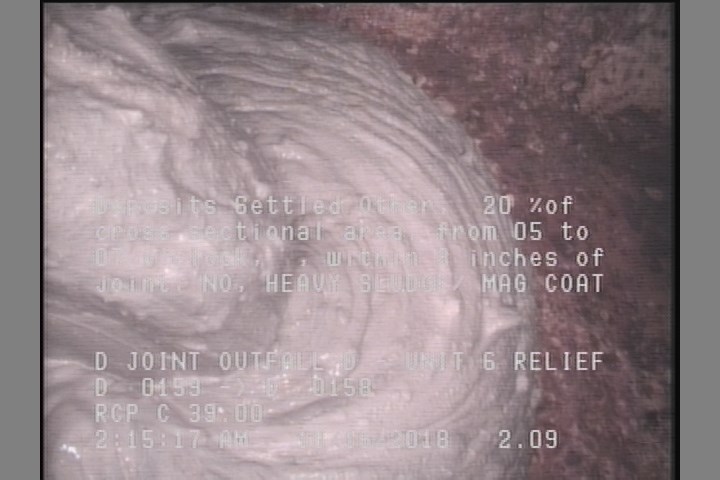

2.1 ft. - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - HEAVY SLUDGE/ MAG COAT

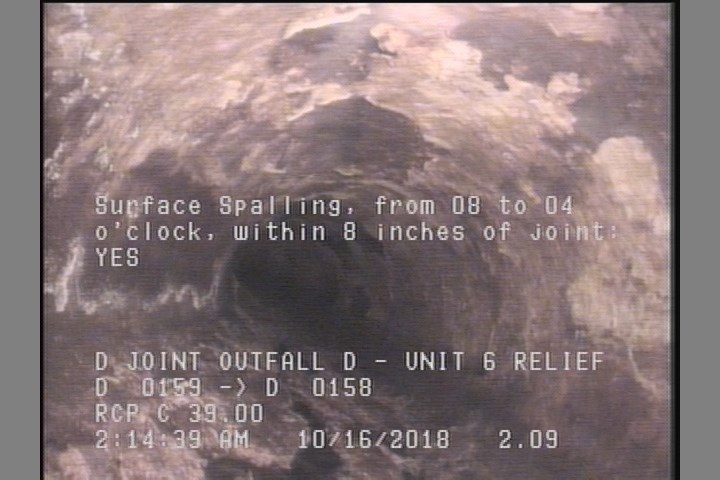

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 10 O'CLOCK |
| 2.1 | DSZ | HEAVY SLUDGE/ MAG COAT |
| 2.1 | SSS | — |
| 2.1 | MSA | CAM BLKD BY SLUDGE |
| 0 | AMH | D 0158 |
Properties (5)
- additional_info
- SC365220
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-10-16T02:08:51-07:00
- year_laid
- 29986
