Wastewater/Activity/PacpInspection/1.0Oct 15, 2018, 10:27 AM
H 0097_H 0096_15102018_032747.mp4
- Date
- 10/15/2018
- W/O
- 729709
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00165
- PipeID
- P10549
- Time
- 3:27 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6150
- Sewer Name
- H JOINT OUTFALL H - UNIT 1F
- City
- HUNTINGTON PARK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729709_TV01220_OCT2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- H 0097
- Downstream MH
- H 0096
- Dir. of Survey
- Downstream
- Length Surveyed
- 6 ft.
- Total Length
- 6 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

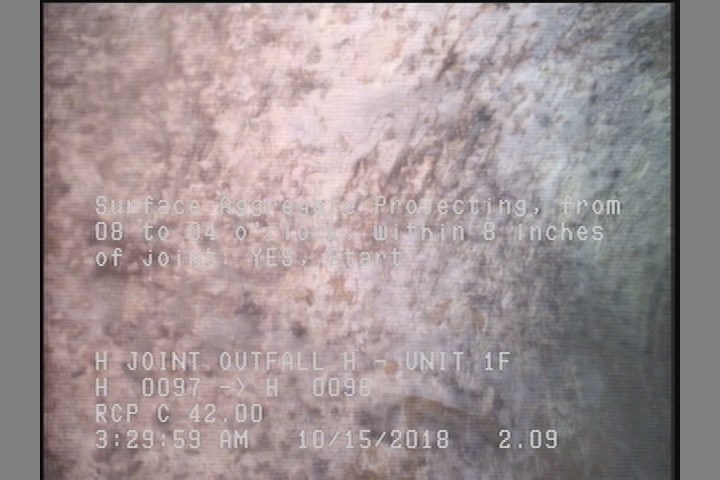

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

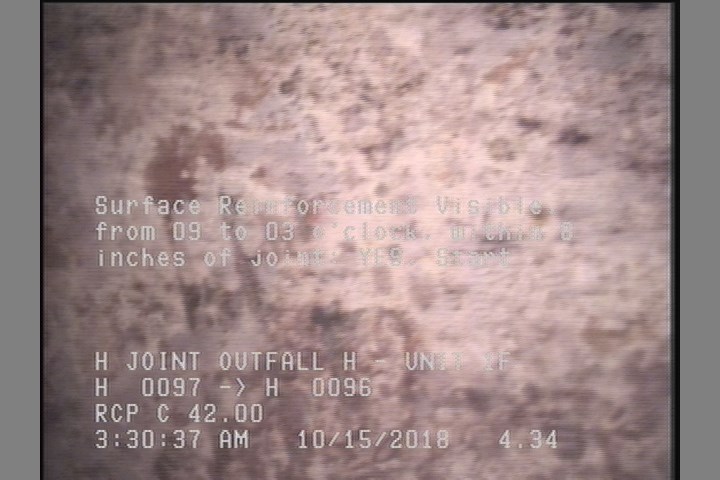

2.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

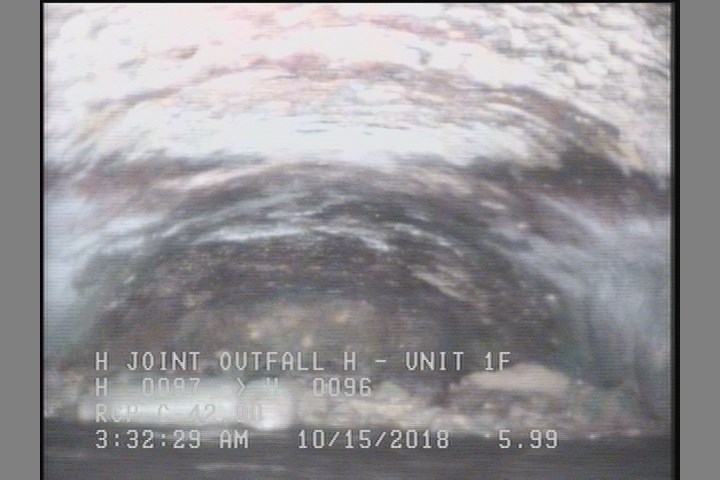

6 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SAP | — |
| 0 | MWL | — |
| 0 | AMH | H 0097 |
| 6 | SRV | — |
| 0 | MWM | — |
| 6 | SAP | — |
| 2.1 | SRV | — |
| 6 | MSA | DOWN LEG OF THE U/S SIPHON |
Properties (4)
- additional_info
- SC365217
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-15T03:27:03-07:00
