Wastewater/Activity/PacpInspection/1.0Oct 12, 2018, 05:56 AM
18 0796_18 0795 _11102018_225728.mp4
- Date
- 10/11/2018
- W/O
- 729694
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00706
- PipeID
- P14654
- Time
- 10:56 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6145
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
- City
- SANTA FE SPRINGS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729694_TV18182_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 18 0796
- Downstream MH
- 18 0795
- Dir. of Survey
- Downstream
- Length Surveyed
- 315.5 ft.
- Total Length
- 315.5 ft.
- Structural Index
- 4
- Structural Quick
- 4D3B
- Structural Rating
- 150
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 152
Observation photos (4)

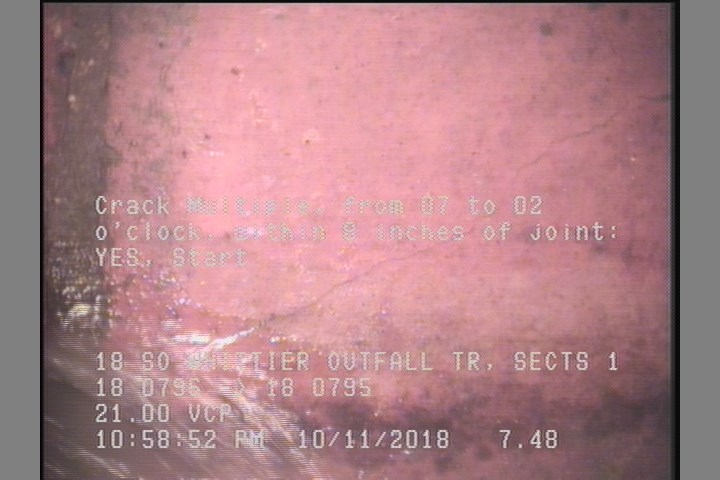

7.4 ft. - Crack Multiple, from 07 to 02 o'clock, within 8 inches of joint: YES, Start

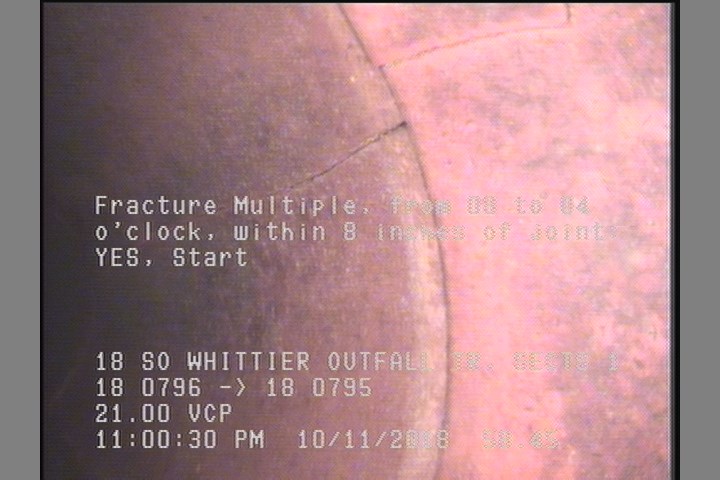

58.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

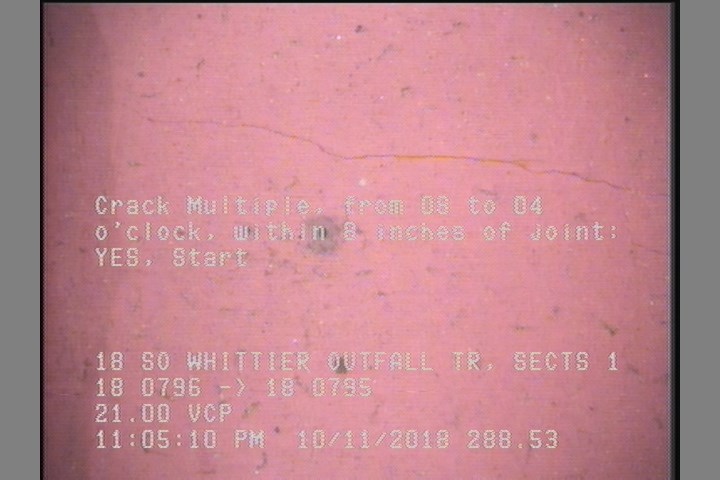

288.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

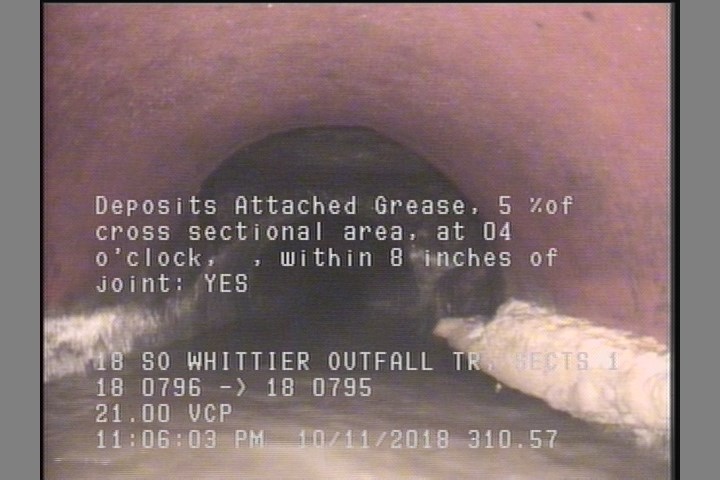

310.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 04 o'clock, , within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 7.4 | CM | — |
| 191.4 | FM | — |
| 0 | MWM | — |
| 0 | AMH | 18 0796 |
| 0 | MWL | — |
| 58.5 | FM | — |
| 288.5 | CM | — |
| 315.5 | AMH | 18 0795 |
| 315.5 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 310.6 | CM | — |
| 310.6 | DAGS | — |
| 58.4 | CM | — |
Properties (4)
- additional_info
- SC365212
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-11T22:56:54-07:00
