Wastewater/Activity/PacpInspection/1.0Oct 12, 2018, 06:08 AM
18 0794_18 0793 _11102018_230935.mp4
- Date
- 10/11/2018
- W/O
- 729694
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00706
- PipeID
- P14652
- Time
- 11:08 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6145
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
- City
- SANTA FE SPRINGS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729694_TV18182_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 18 0794
- Downstream MH
- 18 0793
- Dir. of Survey
- Downstream
- Length Surveyed
- 57.3 ft.
- Total Length
- 57.3 ft.
- Structural Index
- 3
- Structural Quick
- 3C00
- Structural Rating
- 63
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 63
Observation photos (2)

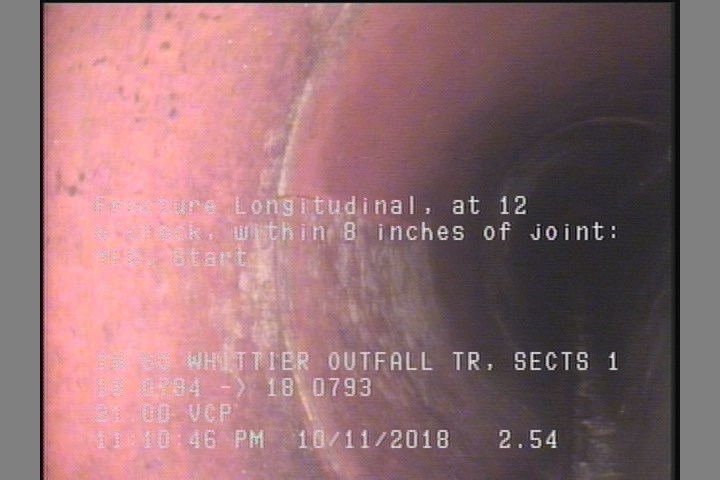

2.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

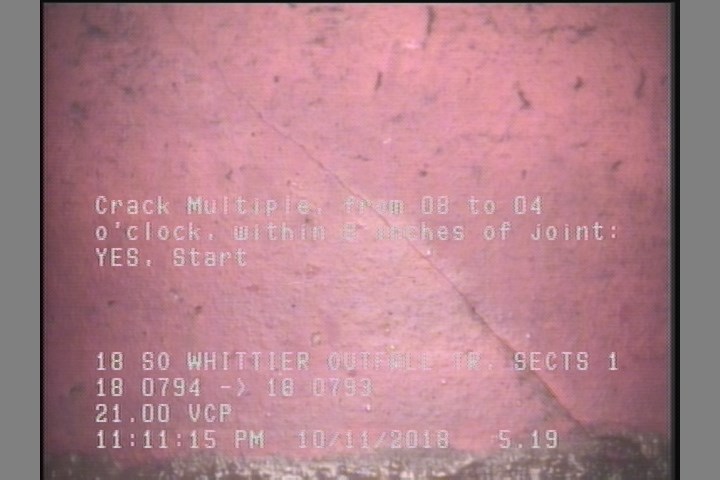

5.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 57.3 | CM | — |
| 0 | AMH | 18 0794 |
| 2.5 | FL | — |
| 0 | MWM | — |
| 5.2 | CM | — |
| 57.3 | AMH | 18 0793 |
| 57.3 | FL | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC365212
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-11T23:08:55-07:00
