Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 12, 2018, 04:53 AM

  • 18 0802A_18 0801 _11102018_220343.mp4

Date
10/11/2018
W/O
729694
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00706
PipeID
P14662
Time
9:53 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6145
Sewer Name
18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
City
SANTA FE SPRINGS
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
14
Purpose
Routine Assessment
Project
RFIR_WO_729694_TV18182_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
18 0802A
Downstream MH
18 0801
Dir. of Survey
Downstream
Length Surveyed
456.6 ft.
Total Length
456.6 ft.
Structural Index
4
Structural Quick
4M31
Structural Rating
311
O&M Index
2
O&M Quick
2B1B
O&M Rating
41
Overall Index
3
Overall Quick
—
Overall Rating
352
Pipe schematic from manhole 18 0802A to 18 0801
MH: 18 0802AMH: 18 0801downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 0802A0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 15 %of cross sectional area2.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start7.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish7.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start63.6 ft. MGO - General Observation - ABANDONED MH282.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish303.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start375.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish375.8 ft. FM - Fracture Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES, Start385.1 ft. RFB - Roots Fine Barrell, from 08 to 04 o'clock, Start387.7 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Start453.2 ft. FM - Fracture Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES, Finish453.2 ft. RFB - Roots Fine Barrell, from 08 to 04 o'clock, Finish453.2 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish456.5 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK456.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK456.6 ft. AMH - Downstream Manhole, Survey Ends - 18 0801

Observation photos (5)

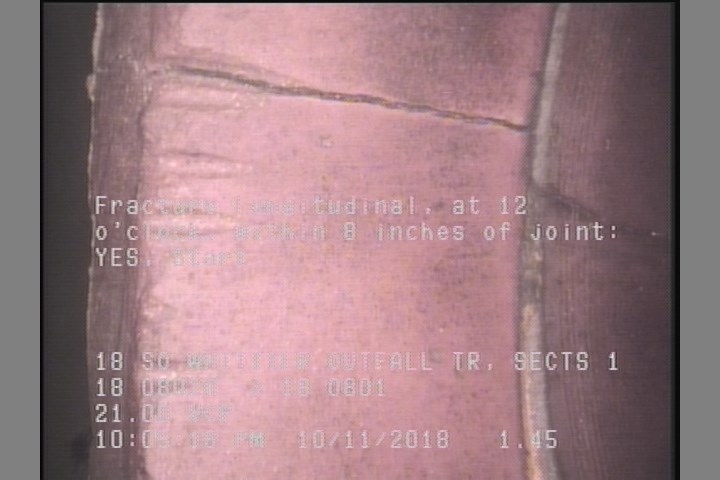

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    2.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

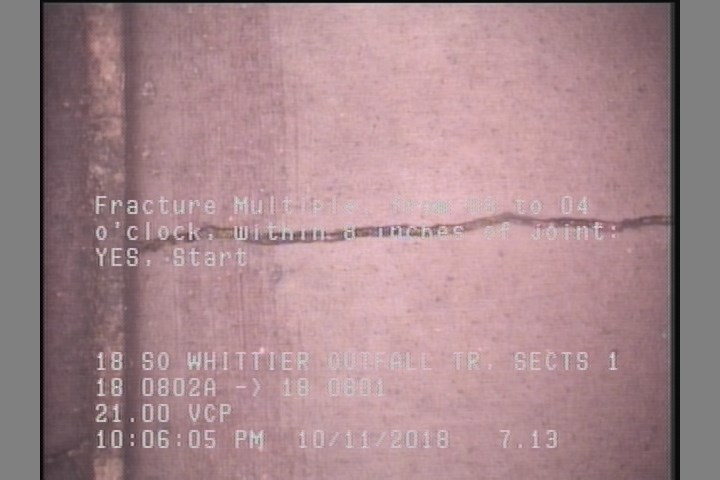

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

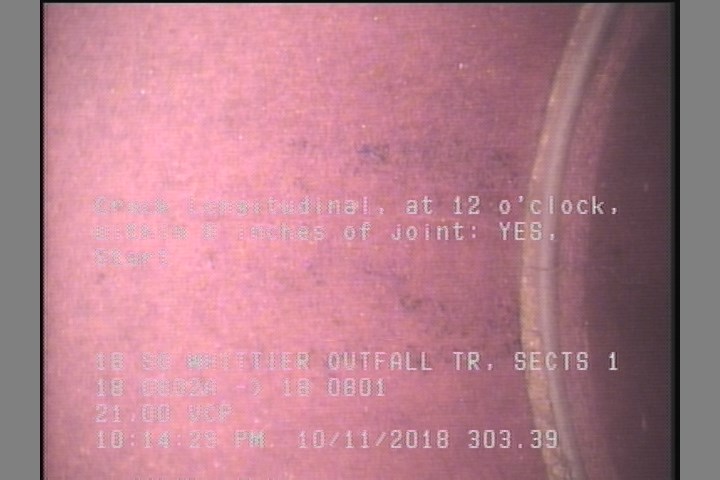

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    303.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

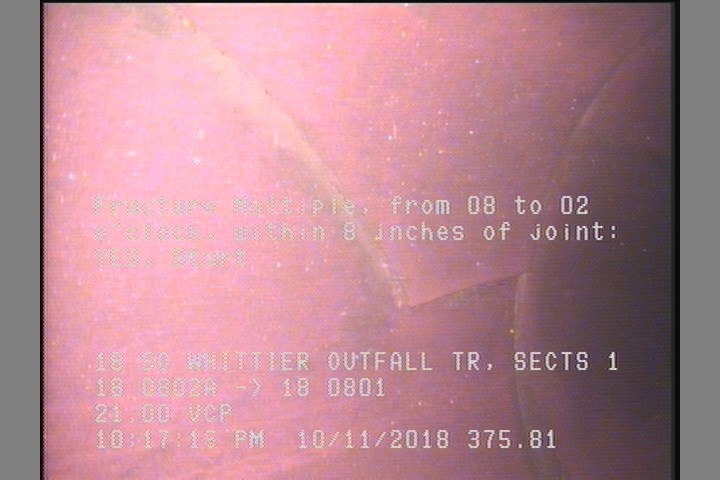

  • Fracture Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES, Start

    375.8 ft. - Fracture Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES, Start

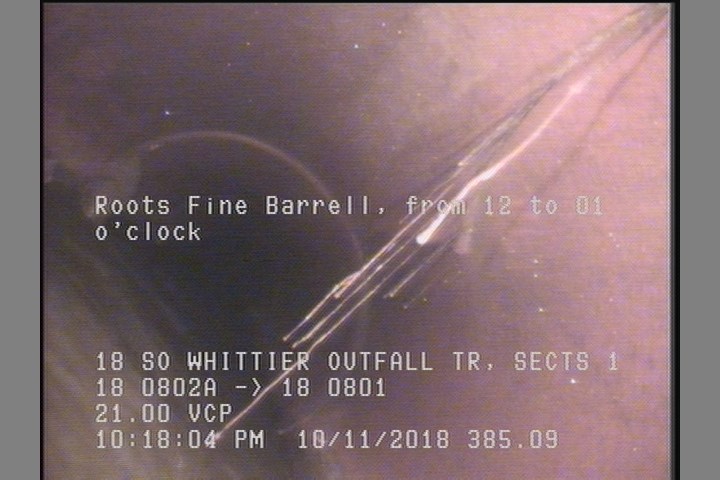

  • Roots Fine Barrell, from 08 to 04 o'clock, Start

    385.1 ft. - Roots Fine Barrell, from 08 to 04 o'clock, Start

All inspections of P14662Work order 729694

Observations (20)

DistanceCodeObservation
63.6MGOABANDONED MH
7.1FL—
0AMH18 0802A
282.9FM—
0MWM—
375.8CL—
456.5MGOCONNECTION AT MH 9 O'CLOCK
303.4CL—
453.2FM—
387.7RFJ—
385.1RFB—
375.8FM—
453.2RFB—
0MGOCONNECTION AT MH 9 O'CLOCK
2.3FL—
7.1FM—
453.2RFJ—
456.6MGOCONNECTION AT MH 3 O'CLOCK
0MWL—
456.6AMH18 0801

Properties (4)

additional_info
SC365212
custom_field_two
2
customer
LACSD
datetime
2018-10-11T21:53:54-07:00
