Wastewater/Activity/PacpInspection/1.0Oct 10, 2018, 10:11 AM
C 0653_C 0652 _10102018_031432.mpg
- Date
- 10/10/2018
- W/O
- 729692
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00266
- PipeID
- P23919
- Time
- 3:11 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6142
- Sewer Name
- C JOINT OUTFALL C - UNIT 3F
- City
- long beach
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729692_TV03162_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- C 0653
- Downstream MH
- C 0652
- Dir. of Survey
- Downstream
- Length Surveyed
- 307.2 ft.
- Total Length
- 307.2 ft.
- Structural Index
- 2
- Structural Quick
- 3121
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

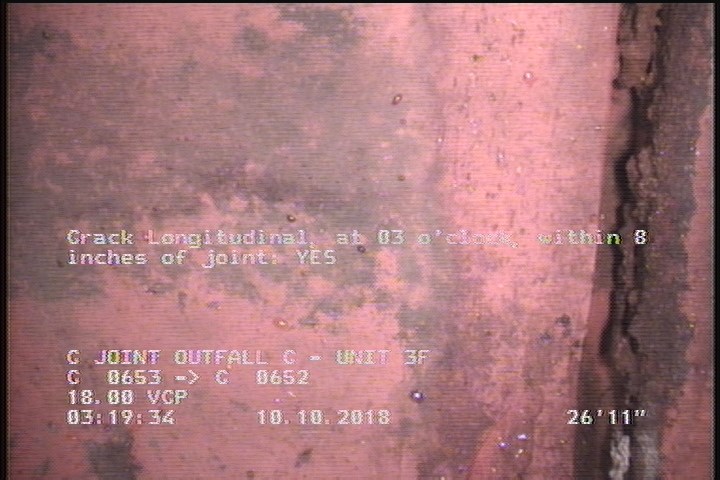

26.9 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

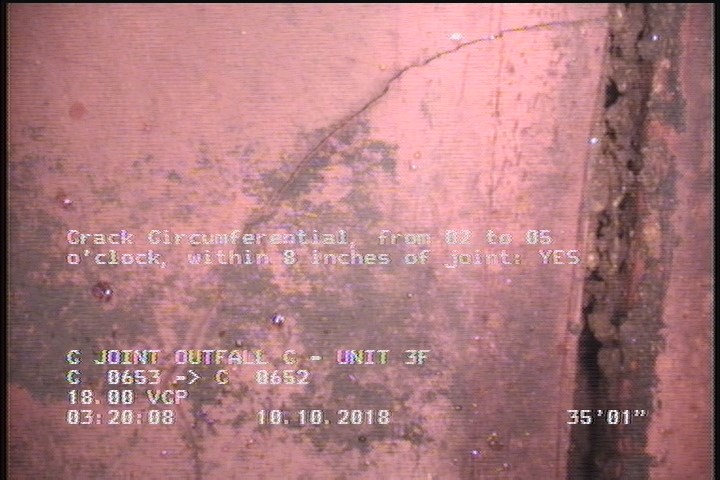

35.1 ft. - Crack Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES

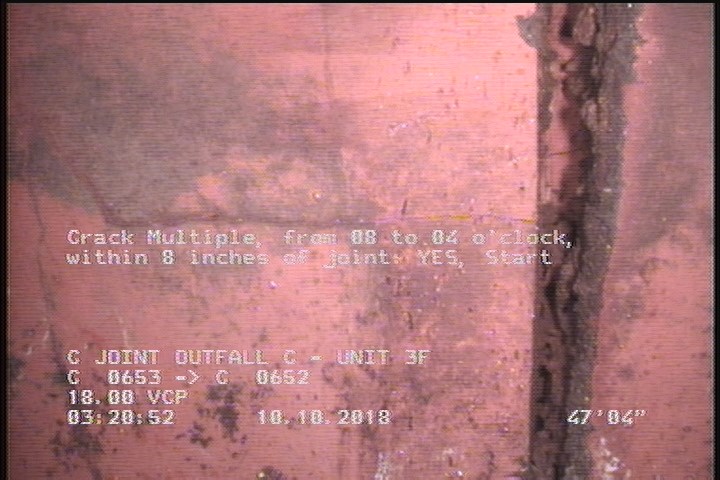

47.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 35.1 | CC | — |
| 0 | AMH | C 0653 |
| 47.4 | CM | — |
| 303.1 | CM | — |
| 0 | MWL | — |
| 26.9 | CL | — |
| 307.2 | AMH | C 0652 |
Properties (4)
- additional_info
- SC365209
- customer
- LACSD
- datetime
- 2018-10-10T03:11:36-07:00
- year_laid
- 37482
