Wastewater/Activity/PacpInspection/1.0Oct 17, 2018, 05:06 AM
C 0345_C 0344 _16102018_220655.mp4
- Date
- 10/16/2018
- W/O
- 729482
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00138
- PipeID
- P09808
- Time
- 10:06 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6154
- Sewer Name
- C JOINT OUTFALL C - UNIT 7B
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729482_TV03115_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- C 0344
- Downstream MH
- C 0345
- Dir. of Survey
- Upstream
- Length Surveyed
- 452 ft.
- Total Length
- 452 ft.
- Structural Index
- 3
- Structural Quick
- 5D3Q
- Structural Rating
- 390
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 390
Observation photos (4)

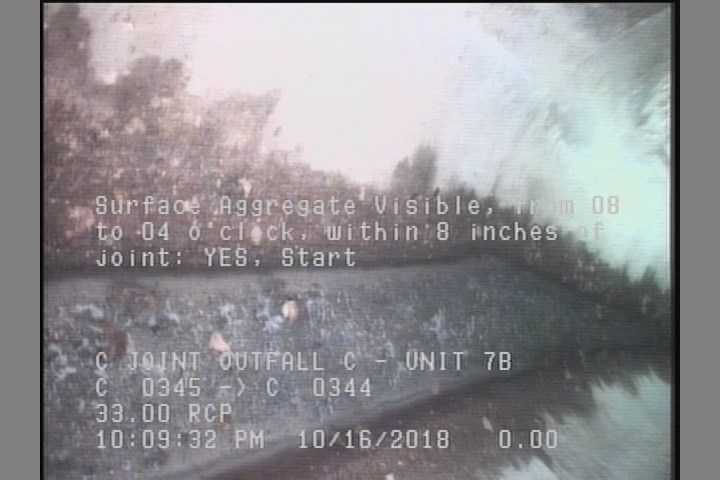

3.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

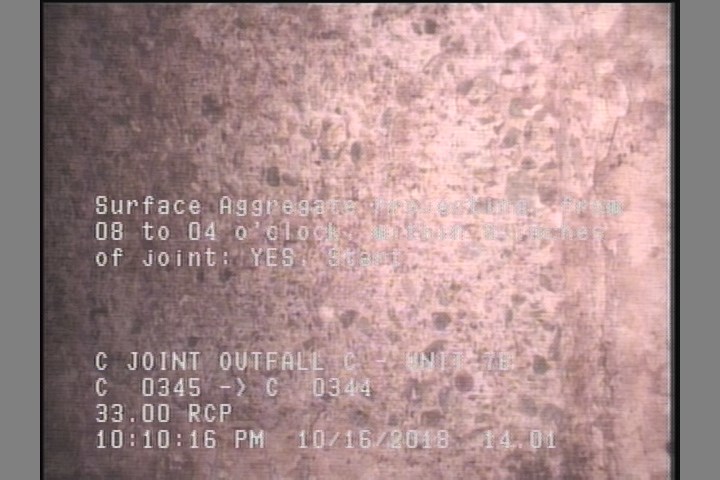

14 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

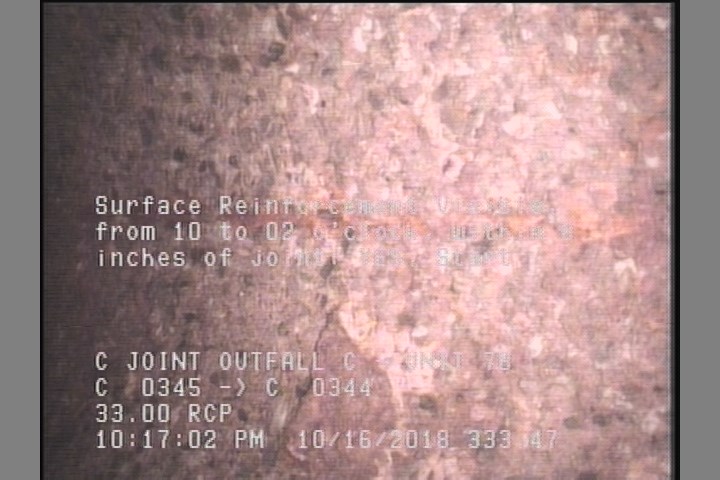

333.5 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

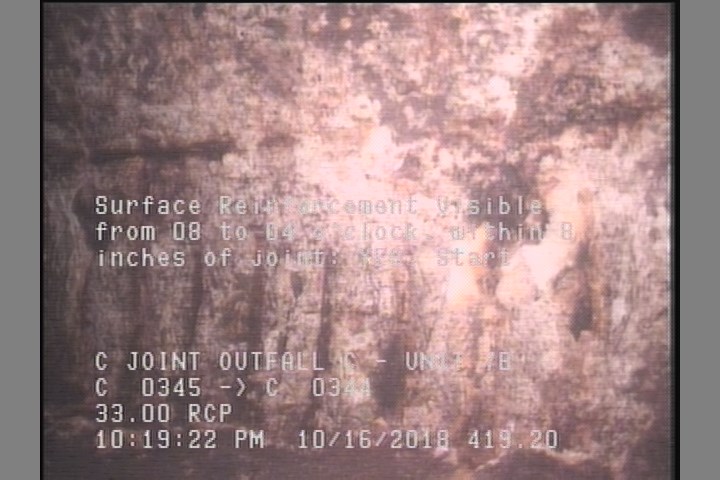

419.2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 14 | SAV | — |
| 333.5 | SRV | — |
| 452 | SRV | — |
| 452 | SAP | — |
| 419.2 | SRV | — |
| 14 | SAP | — |
| 0 | AMH | C 0344 |
| 419.2 | SRV | — |
| 3.6 | SAV | — |
| 452 | AMH | C 0345 |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC365221
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-16T22:06:49-07:00
