Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 2, 2018, 08:34 AM

  • 29 0439_29 0419 _02102018_013614.mp4

Date
10/02/2018
W/O
729479
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00989
PipeID
P24476
Time
1:34 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6121
Sewer Name
29 LEWIS AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
RFIR_WO_729479_TV29059_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0419
Downstream MH
29 0439
Dir. of Survey
Upstream
Length Surveyed
166.6 ft.
Total Length
166.6 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
99
O&M Index
2
O&M Quick
2E00
O&M Rating
64
Overall Index
3
Overall Quick
—
Overall Rating
163
Pipe schematic from manhole 29 0419 to 29 0439
MH: 29 0419MH: 29 0439upstream0 ft. ACOM - Cleanout Mainline, Survey Ends - 29 04390 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish2.5 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"5.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"8.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"84.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"134.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"157.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start163.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start166.6 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK166.6 ft. MWM - Water Mark, 5 %of cross sectional area166.6 ft. MWL - Water Level, 5 %of cross sectional area166.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK166.6 ft. AMH - Downstream Manhole, Survey Begins - 29 0419

Observation photos (2)

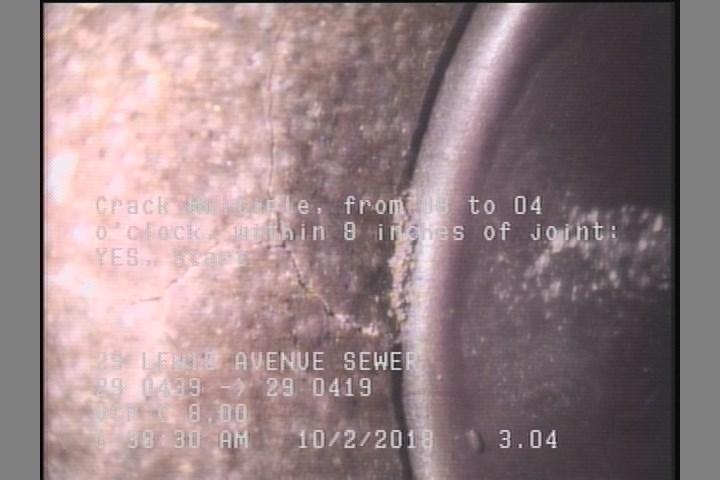

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

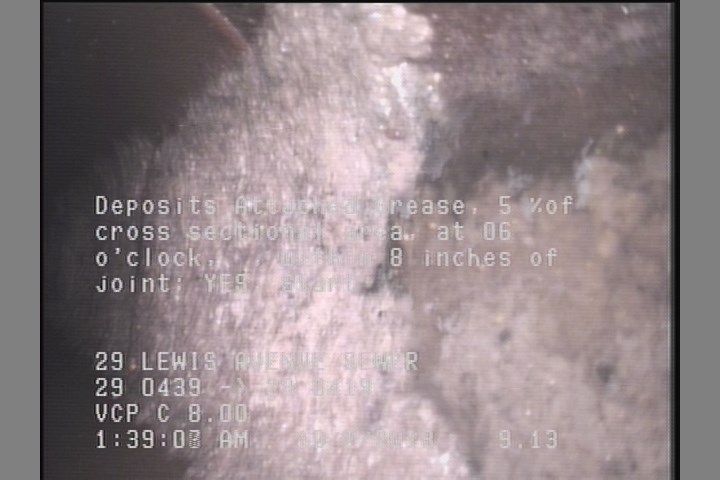

  • Deposits Attached Grease, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    9.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

All inspections of P24476Work order 729479

Observations (15)

DistanceCodeObservation
166.6ACOM29 0439
3CM—
166.6CM—
9.1DAGS—
161.5TF—
0MGOCONNECTION AT MH 9 O'CLOCK
82.1TF—
0MWM—
166.6DAGS—
32.5TF—
0MWL—
164.1TFC—
157.9TF—
0MGOCONNECTION AT MH 3 O'CLOCK
0AMH29 0419

Properties (4)

additional_info
SC364841
custom_field_two
3
customer
LACSD
datetime
2018-10-02T01:34:58-07:00
