Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 3, 2018, 04:42 AM

  • 29 0459_29 0458 _02102018_214207.mp4

Date
10/02/2018
W/O
729479
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00989
PipeID
P24501
Time
9:42 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6122
Sewer Name
29 LEWIS AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
RFIR_WO_729479_TV29059_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0458
Downstream MH
29 0459
Dir. of Survey
Upstream
Length Surveyed
338.2 ft.
Total Length
338.2 ft.
Structural Index
3
Structural Quick
413K
Structural Rating
189
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
195
Pipe schematic from manhole 29 0458 to 29 0459
MH: 29 0458MH: 29 0459upstream0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 29 04599.2 ft. RFB - Roots Fine Barrell, at 03 o'clock9.2 ft. H - Hole, at 03 o'clock, within 8 inches of joint: NO11.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"59.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"62.7 ft. RBL - Roots Ball Lateral, at 02 o'clock, 65 %62.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"73.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"103.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"108.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"129 ft. FM - Fracture Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES129 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"165.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"206.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"215.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"254.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"266.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"298 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start298.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"300.2 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES313.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"338.2 ft. MWM - Water Mark, 10 %of cross sectional area338.2 ft. AMH - Downstream Manhole, Survey Begins - 29 0458338.2 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (5)

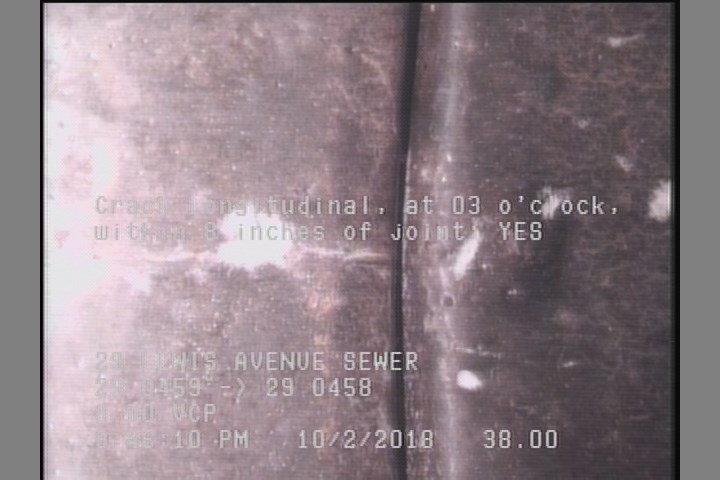

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    38 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

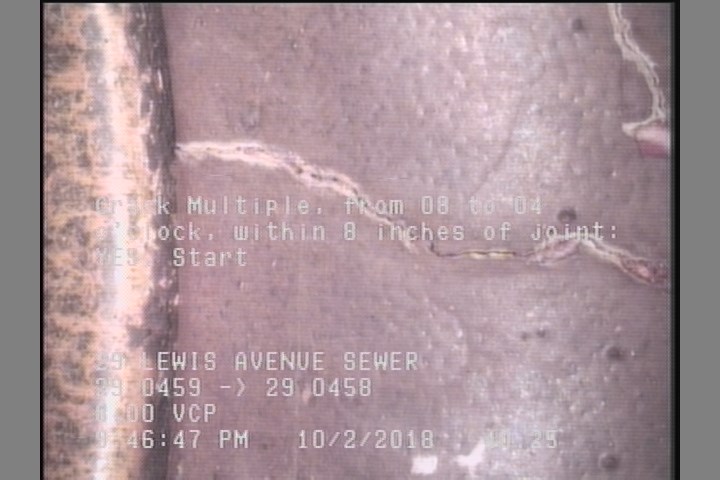

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    40.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

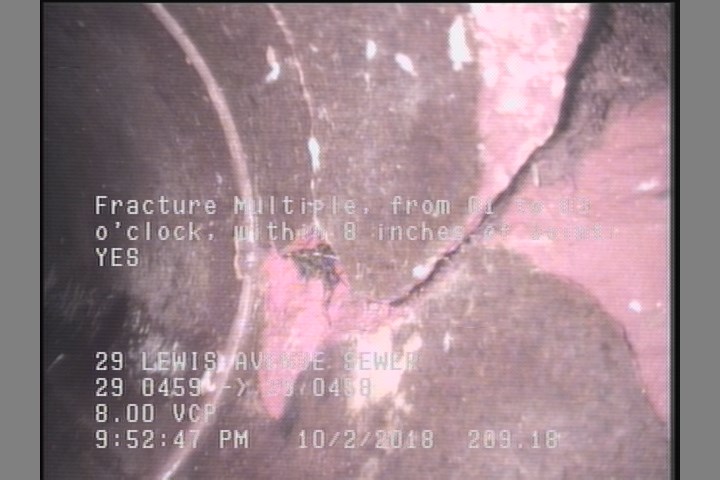

  • Fracture Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

    209.2 ft. - Fracture Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

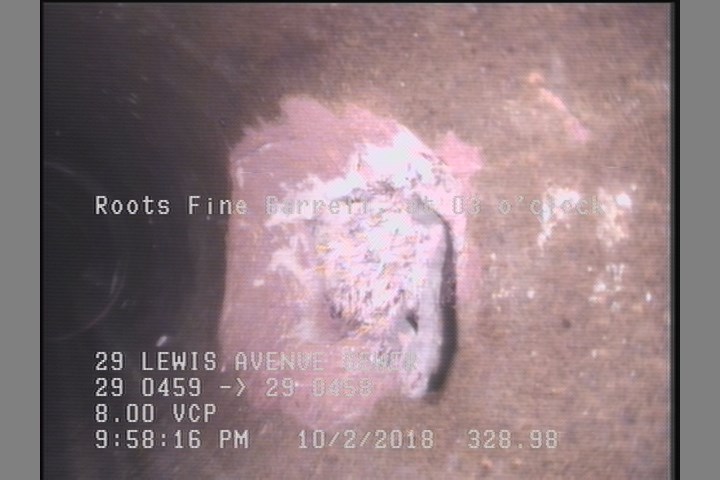

  • Roots Fine Barrell, at 03 o'clock

    329 ft. - Roots Fine Barrell, at 03 o'clock

  • Hole, at 03 o'clock, within 8 inches of joint: NO

    329 ft. - Hole, at 03 o'clock, within 8 inches of joint: NO

All inspections of P24501Work order 729479

Observations (25)

DistanceCodeObservation
0MWM—
172.6TFC—
275.5RBL—
131.3TF—
83.9TF—
122.6TF—
39.7TF—
338.2CM—
229.3TF—
326.8TF—
209.2FM—
38CL—
278.7TF—
0AMH29 0458
40.2CM—
275.5TF—
235.1TF—
209.2TF—
264.5TF—
329RFB—
338.2AMH29 0459
0MWL—
329H—
25TFC—
71.9TF—

Properties (4)

additional_info
SC364842
custom_field_two
2
customer
LACSD
datetime
2018-10-02T21:42:01-07:00
