Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 2, 2018, 10:02 AM

  • 29 0438_29 0432 _02102018_030448.mp4

Date
10/02/2018
W/O
729479
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00989
PipeID
P24475
Time
3:02 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6121
Sewer Name
29 LEWIS AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
RFIR_WO_729479_TV29059_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0432
Downstream MH
29 0438
Dir. of Survey
Upstream
Length Surveyed
135.4 ft.
Total Length
135.4 ft.
Structural Index
3
Structural Quick
513D
Structural Rating
83
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
83
Pipe schematic from manhole 29 0432 to 29 0438
MH: 29 0432MH: 29 0438upstream0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. ACOM - Cleanout Mainline, Survey Ends - 29 04383.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"5.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"34 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"57.8 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"125.8 ft. B - Broken, from 01 to 03 o'clock, within 8 inches of joint: YES131.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start135.4 ft. MWL - Water Level, 5 %of cross sectional area135.4 ft. AMH - Downstream Manhole, Survey Begins - 29 0432135.4 ft. MWM - Water Mark, 10 %of cross sectional area135.4 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK

Observation photos (2)

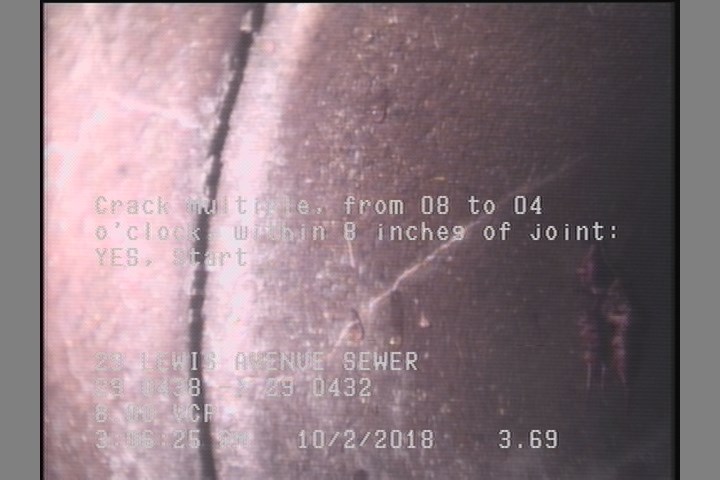

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

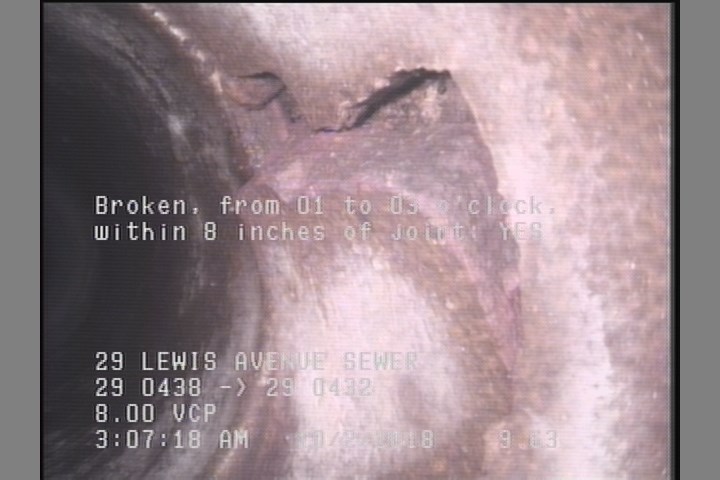

  • Broken, from 01 to 03 o'clock, within 8 inches of joint: YES

    9.6 ft. - Broken, from 01 to 03 o'clock, within 8 inches of joint: YES

All inspections of P24475Work order 729479

Observations (12)

DistanceCodeObservation
77.6TFC—
129.7TF—
9.6B—
0MWL—
3.7CM—
135.4CM—
131.7TF—
101.4TF—
135.4ACOM29 0438
0AMH29 0432
0MWM—
0MGOCONNECTION AT MH 9 O'CLOCK

Properties (4)

additional_info
SC364841
custom_field_two
2
customer
LACSD
datetime
2018-10-02T03:02:59-07:00
