Wastewater/Activity/PacpInspection/1.0Oct 2, 2018, 09:18 AM
29 0422_29 0421 _02102018_021935.mp4
- Date
- 10/02/2018
- W/O
- 729479
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00989
- PipeID
- P24459
- Time
- 2:18 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6121
- Sewer Name
- 29 LEWIS AVENUE SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729479_TV29059_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0421
- Downstream MH
- 29 0422
- Dir. of Survey
- Upstream
- Length Surveyed
- 200.5 ft.
- Total Length
- 200.5 ft.
- Structural Index
- 3
- Structural Quick
- 3F00
- Structural Rating
- 108
- O&M Index
- 2
- O&M Quick
- 2600
- O&M Rating
- 12
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 120
Observation photos (3)

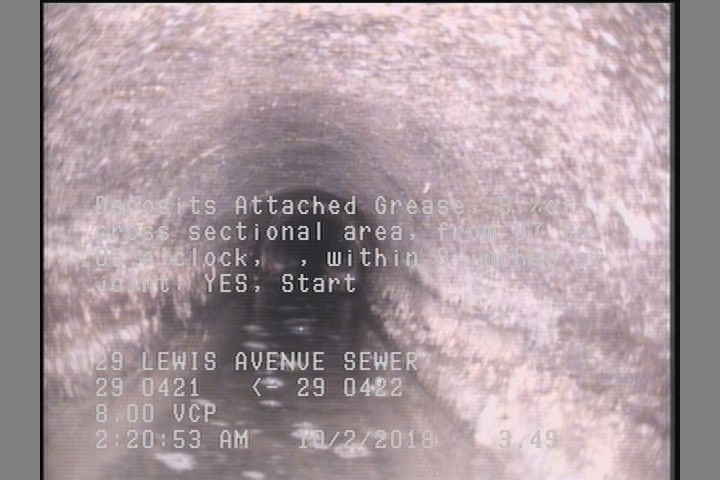

3.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

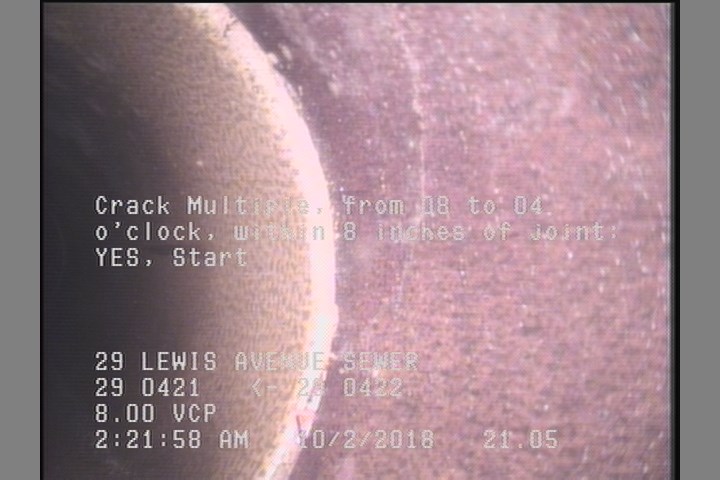

21 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

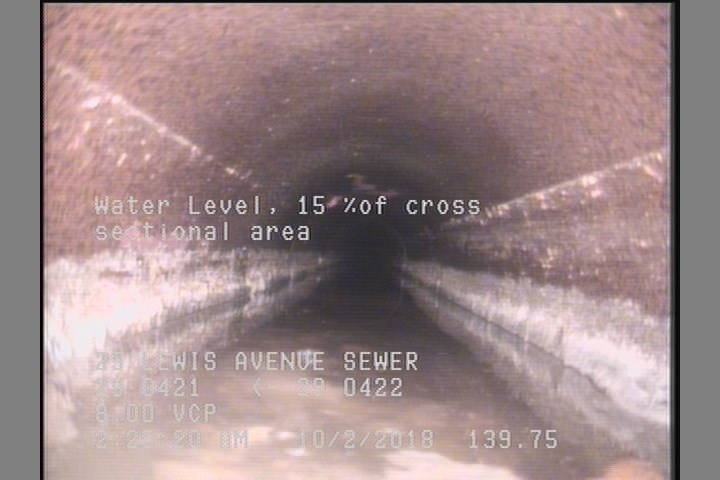

139.8 ft. - Water Level, 15 %of cross sectional area
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 29 0421 |
| 21 | CM | — |
| 200.5 | AMH | 29 0422 |
| 0 | MWM | — |
| 200.4 | CM | — |
| 139.8 | MWL | — |
| 32.1 | DAGS | — |
| 0 | MWL | — |
| 200.5 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 3.4 | DAGS | — |
| 108.6 | TF | — |
| 6.4 | TFA | — |
Properties (4)
- additional_info
- SC364841
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-02T02:18:53-07:00
