Wastewater/Activity/PacpInspection/1.0Oct 11, 2018, 09:13 AM
02 1264_02 1263_10102018_213713.mp4
- Date
- 10/11/2018
- W/O
- 729725
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00288
- PipeID
- P04670
- Time
- 2:13 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6144
- Sewer Name
- 02 MONTEREY PARK DIVERSION TRUNK
- City
- monterey park
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_729725_TV02100_OCT2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1264
- Downstream MH
- 02 1263
- Dir. of Survey
- Downstream
- Length Surveyed
- 414.4 ft.
- Total Length
- 414.4 ft.
- Structural Index
- 3
- Structural Quick
- 3O00
- Structural Rating
- 246
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 246
Observation photos (2)

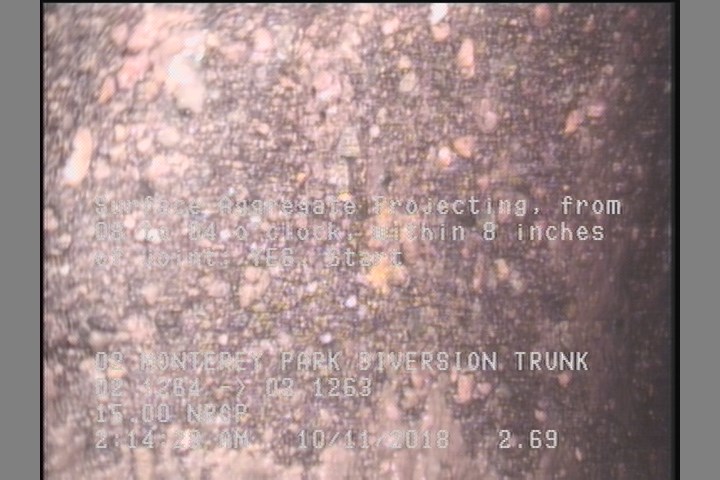

2.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

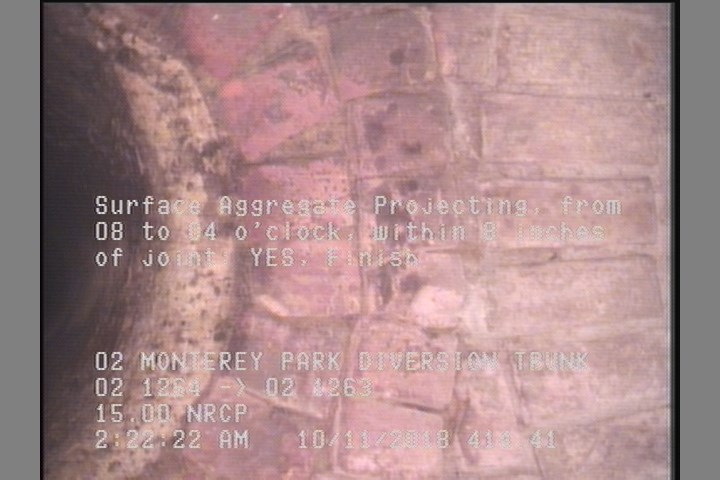

414.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 414.4 | AMH | 02 1263 |
| 2.6 | SAP | — |
| 0 | AMH | 02 1264 |
| 0 | MWL | — |
| 0 | MWM | — |
| 414.4 | SAP | — |
Properties (4)
- additional_info
- SC365211
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-11T02:13:10-07:00
