Wastewater/Activity/PacpInspection/1.0Oct 11, 2018, 10:27 AM
02 2317_02 1260_11102018_032847.mp4
- Date
- 10/11/2018
- W/O
- 729725
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00288
- PipeID
- P08497
- Time
- 3:27 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6144
- Sewer Name
- 02 MONTEREY PARK DIVERSION TRUNK
- City
- monterey park
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_729725_TV02100_OCT2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1260
- Downstream MH
- 02 2317
- Dir. of Survey
- Upstream
- Length Surveyed
- 16.7 ft.
- Total Length
- 16.7 ft.
- Structural Index
- 3
- Structural Quick
- 3323
- Structural Rating
- 15
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (2)

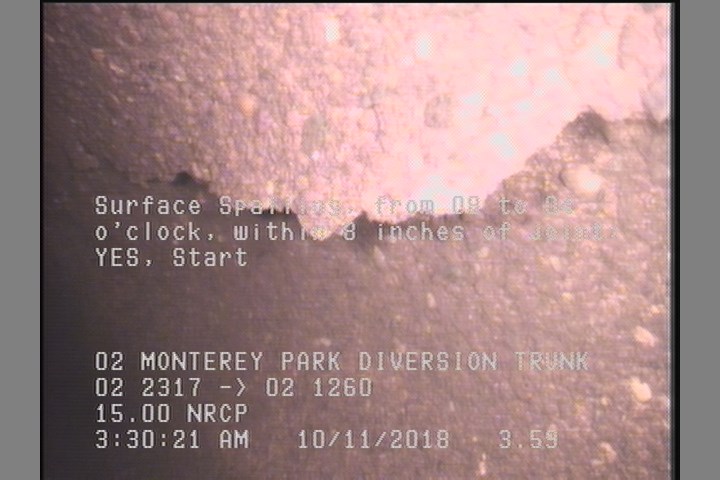

3.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

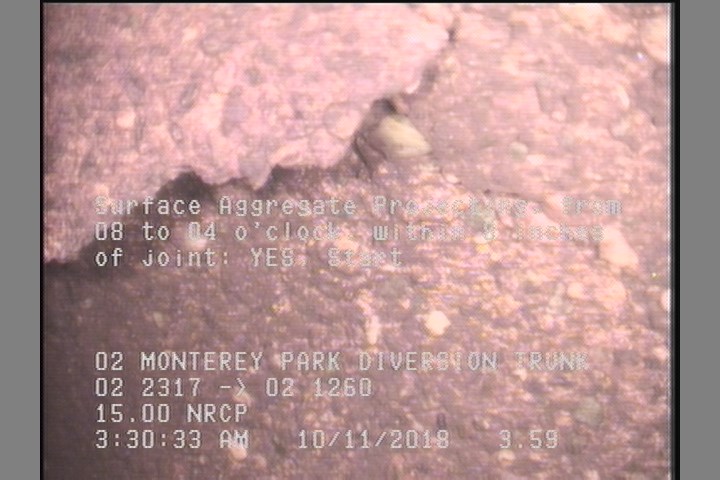

3.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MWM | — |
| 3.6 | SSS | — |
| 3.6 | SAP | — |
| 16.7 | AMH | 02 2317 |
| 16.7 | SSS | — |
| 0 | AMH | 02 1260 |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 16.7 | SAP | — |
Properties (4)
- additional_info
- SC365211
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-11T03:27:52-07:00
