Wastewater/Activity/PacpInspection/1.0Oct 16, 2018, 06:02 AM
F 0071B_F 0071A _15102018_230336.mp4
- Date
- 10/15/2018
- W/O
- 729480
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00035
- PipeID
- P10158
- Time
- 11:02 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6151
- Sewer Name
- F JOINT OUTFALL F - UNIT 3A
- City
- BELLFLOWER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729480_TV02313_OCT2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 66 in.
- Width
- 66 in.
- Upstream MH
- F 0071A
- Downstream MH
- F 0071B
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (3)

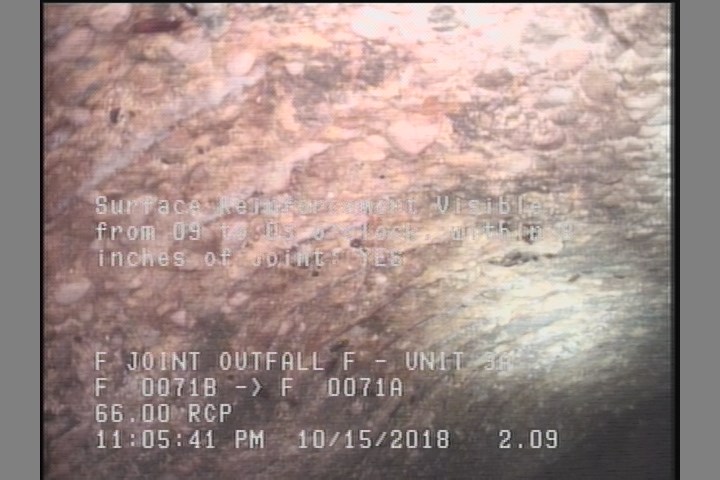

2.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

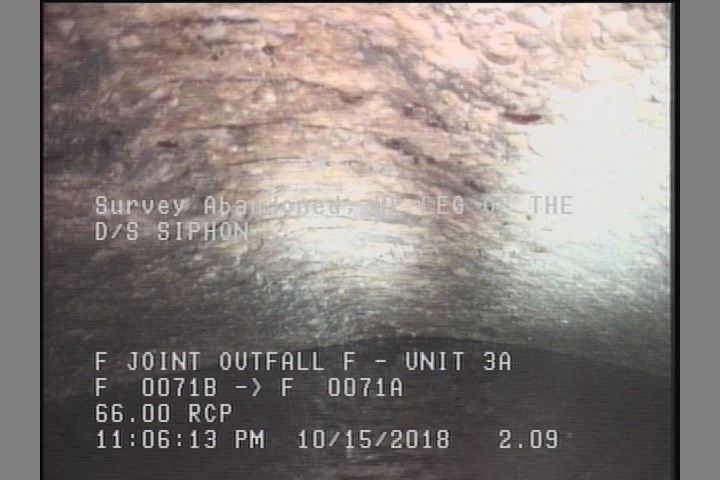

2.1 ft. - Survey Abandoned - UP LEG OF THE D/S SIPHON

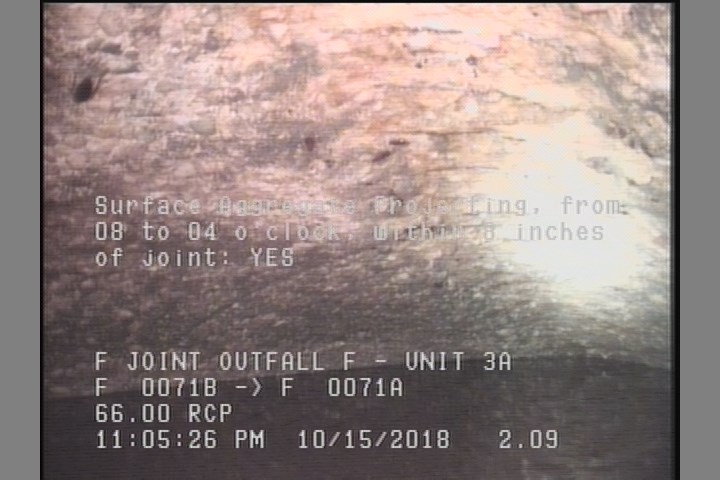

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | F 0071A |
| 2.1 | SRV | — |
| 0 | MWL | — |
| 2.1 | MSA | UP LEG OF THE D/S SIPHON |
| 0 | MWM | — |
| 2.1 | SAP | — |
Properties (4)
- additional_info
- SC365218
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-15T23:02:58-07:00
