Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 16, 2018, 05:08 PM

  • 08 0476_08 0475 _15102018_104503.mp4

Date
10/16/2018
W/O
729477
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00025
PipeID
P00533
Time
10:08 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6062
Sewer Name
08 216TH STREET RELOCATION TRUNK
City
TORRANCE
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
13
Purpose
Routine Assessment
Project
RFIR_WO_729477_TV08101_OCT2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Width
48 in.
Upstream MH
08 0476
Downstream MH
08 0475
Dir. of Survey
Downstream
Length Surveyed
719.8 ft.
Total Length
719.8 ft.
Structural Index
5
Structural Quick
5\00
Structural Rating
720
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
5
Overall Quick
—
Overall Rating
724
Pipe schematic from manhole 08 0476 to 08 0475
MH: 08 0476MH: 08 0475downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 04760 ft. SRVZ - Surface Reinforcement Visible Unknown, at 03 o'clock, within 8 inches of joint: NO0 ft. MWL - Water Level, 60 %of cross sectional area2 ft. MGO - General Observation - MAGNEZIUM H.O COATING START8.5 ft. SRVZ - Surface Reinforcement Visible Unknown, from 10 to 02 o'clock, within 8 inches of joint: YES, Start41.1 ft. SRVZ - Surface Reinforcement Visible Unknown, from 11 to 02 o'clock, within 8 inches of joint: NO - HANGING COMING OF FROM THE PIPE281.2 ft. SRVZ - Surface Reinforcement Visible Unknown, from 12 to 02 o'clock, within 8 inches of joint: NO - HANGING713.7 ft. SRVZ - Surface Reinforcement Visible Unknown, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish713.8 ft. MGO - General Observation - MAGNEZIUM H.O COATING FINISH719.8 ft. AMH - Downstream Manhole, Survey Ends - 08 0475

Observation photos (4)

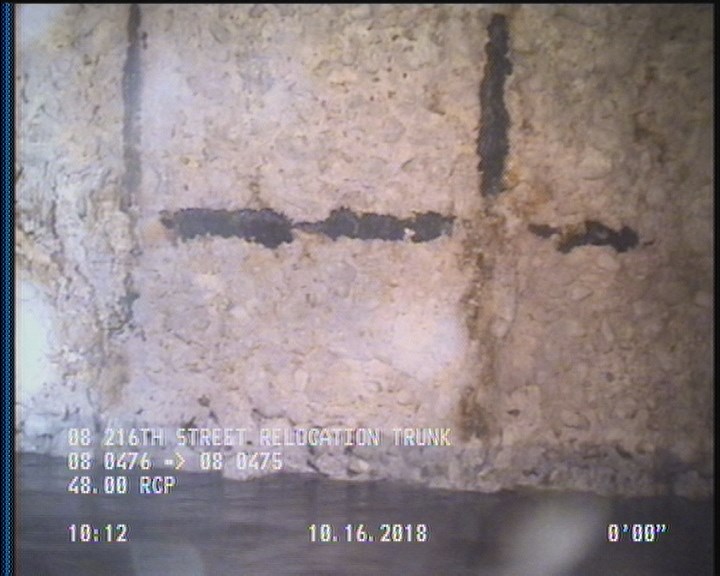

  • Surface Reinforcement Visible Unknown, at 03 o'clock, within 8 inches of joint: NO

    0 ft. - Surface Reinforcement Visible Unknown, at 03 o'clock, within 8 inches of joint: NO

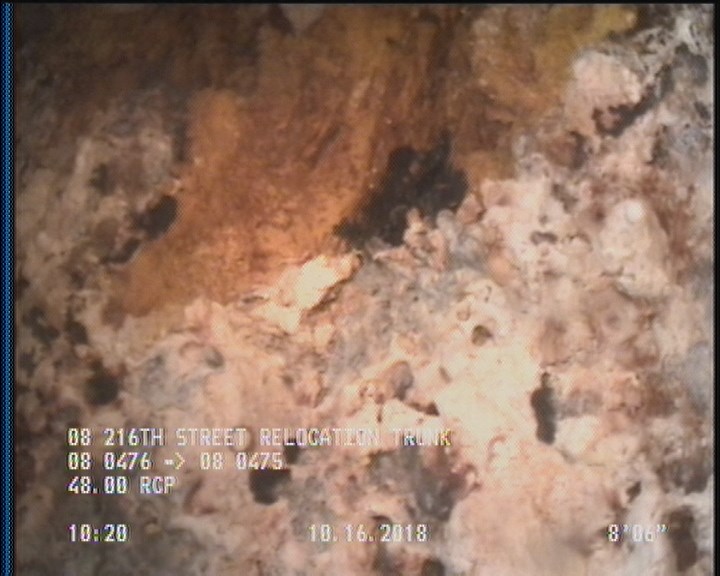

  • Surface Reinforcement Visible Unknown, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    8.5 ft. - Surface Reinforcement Visible Unknown, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

  • Surface Reinforcement Visible Unknown, from 11 to 02 o'clock, within 8 inches of joint: NO - HANGING COMING OF FROM THE PIPE

    41.1 ft. - Surface Reinforcement Visible Unknown, from 11 to 02 o'clock, within 8 inches of joint: NO - HANGING COMING OF FROM THE PIPE

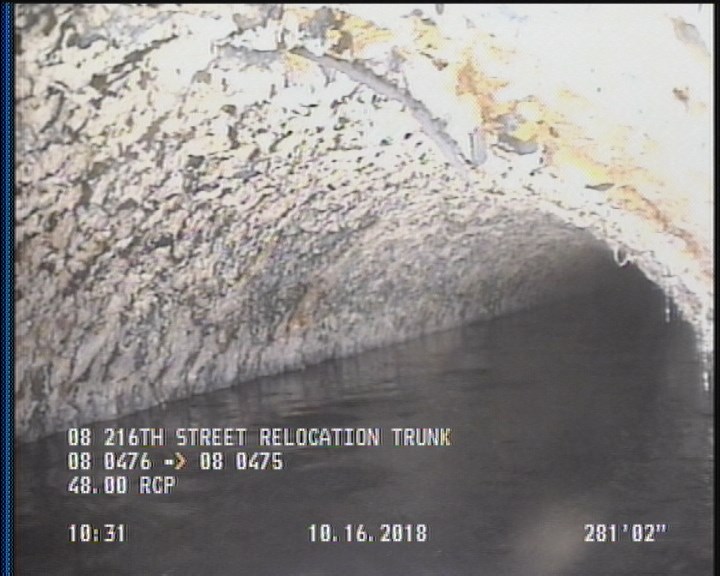

  • Surface Reinforcement Visible Unknown, from 12 to 02 o'clock, within 8 inches of joint: NO - HANGING

    281.2 ft. - Surface Reinforcement Visible Unknown, from 12 to 02 o'clock, within 8 inches of joint: NO - HANGING

All inspections of P00533Work order 729477

Observations (11)

DistanceCodeObservation
713.8MGOMAGNEZIUM H.O COATING FINISH
0MWM—
41.1SRVZHANGING COMING OF FROM THE PIPE
0AMH08 0476
0SRVZ—
2MGOMAGNEZIUM H.O COATING START
8.5SRVZ—
713.7SRVZ—
281.2SRVZHANGING
719.8AMH08 0475
0MWL—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2018-10-16T10:08:46-07:00
