Wastewater/Activity/PacpInspection/1.0Oct 16, 2018, 09:12 PM
08 0596_D 0008 _16102018_141400.mp4
- Date
- 10/16/2018
- W/O
- 729477
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00025
- PipeID
- P00530
- Time
- 2:12 PM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6062
- Sewer Name
- 08 216TH STREET RELOCATION TRUNK
- City
- TORRANCE
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729477_TV08101_OCT2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- 08 0596
- Downstream MH
- D 0008
- Dir. of Survey
- Downstream
- Length Surveyed
- 713.4 ft.
- Total Length
- 713.4 ft.
- Structural Index
- 5
- Structural Quick
- 5[00
- Structural Rating
- 705
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 709
Observation photos (1)

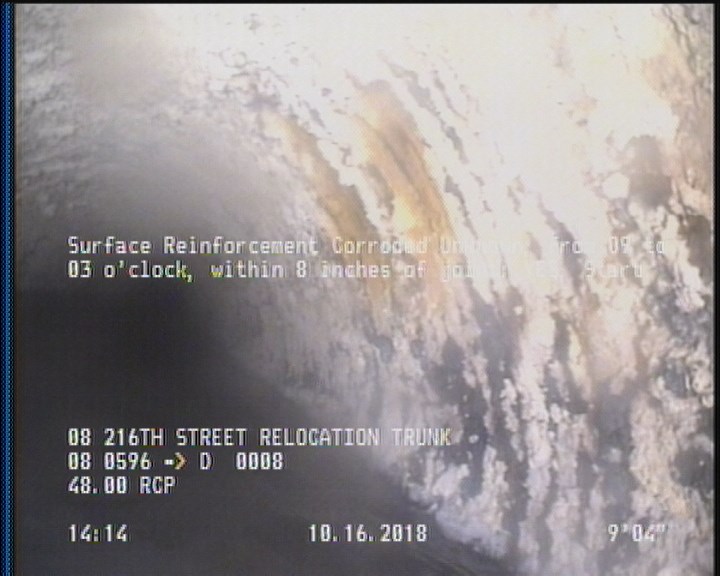

9.4 ft. - Surface Reinforcement Corroded Unknown, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 9.4 | SRCZ | — |
| 713.4 | AMH | D 0008 |
| 713.3 | SRCZ | — |
| 2 | MGO | MAGNEZIUM H.O COATING START |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 08 0596 |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-10-16T14:12:24-07:00
