Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 24, 2018, 11:17 AM

  • 16 0101_16 0100 _09242018_041750.mp4

Date
09/24/2018
W/O
729452
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00641
PipeID
P13139
Time
4:17 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6040
Sewer Name
16 ALLEN AVENUE TRUNK, SECTION 5
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
14
Purpose
Routine Assessment
Project
RFIR_WO_729452_TV16009_OCT2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
16 0100
Downstream MH
16 0101
Dir. of Survey
Upstream
Length Surveyed
380 ft.
Total Length
380 ft.
Structural Index
3
Structural Quick
3N00
Structural Rating
225
O&M Index
2
O&M Quick
2N00
O&M Rating
150
Overall Index
3
Overall Quick
—
Overall Rating
375
Pipe schematic from manhole 16 0100 to 16 0101
MH: 16 0100MH: 16 0101upstream0 ft. AMH - Upstream Manhole, Survey Ends - 16 01012.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE2.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish375.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start378 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start380 ft. AMH - Downstream Manhole, Survey Begins - 16 0100380 ft. MGO - General Observation - COCKROACHES IN MANHOLE380 ft. MWM - Water Mark, 25 %of cross sectional area380 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (4)

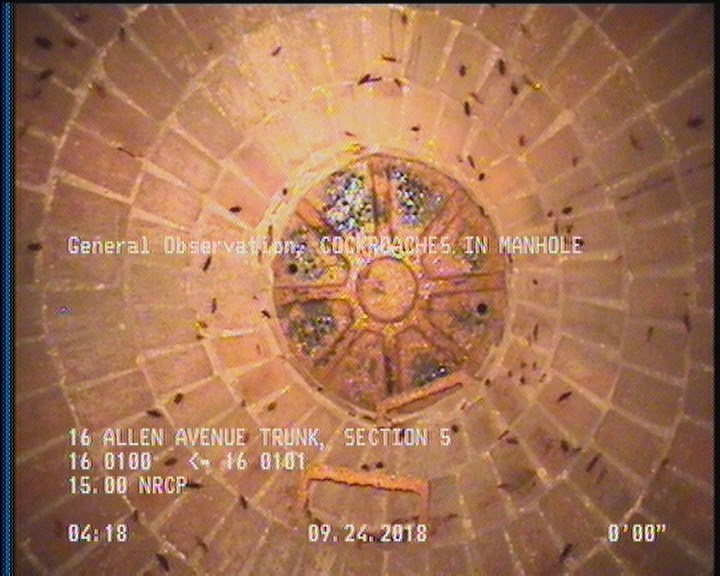

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

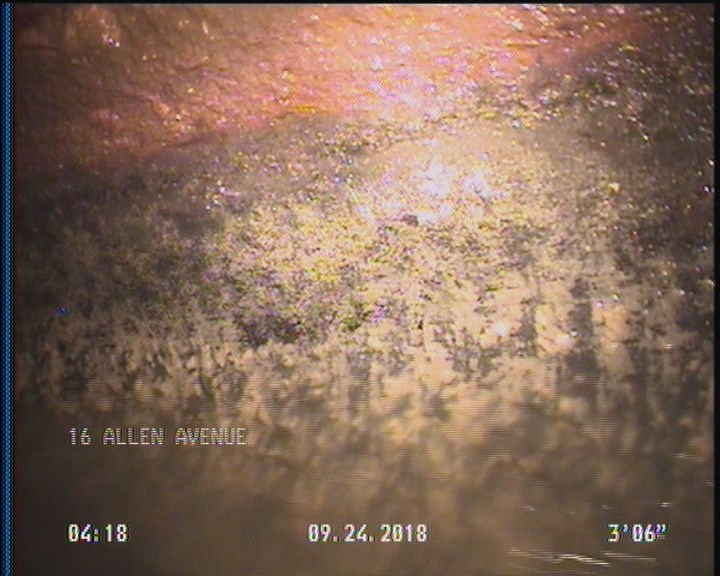

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

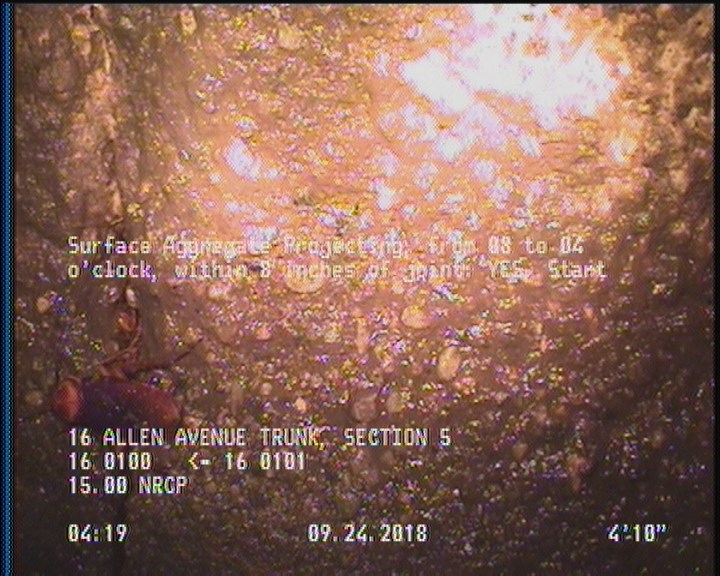

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

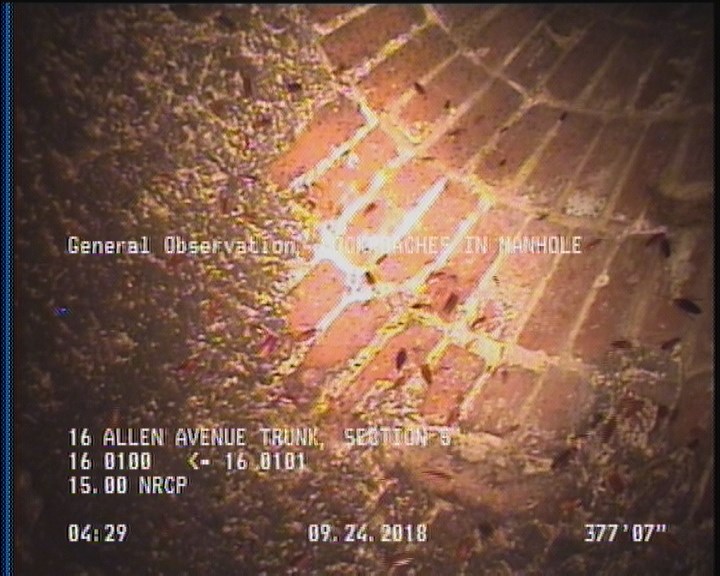

  • General Observation - COCKROACHES IN MANHOLE

    377.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P13139Work order 729452

Observations (10)

DistanceCodeObservation
377.5SAP—
377.5MGOCOCKROACHES IN MANHOLE
4.8SAP—
2DAGS—
0AMH16 0100
380AMH16 0101
0MGOCOCKROACHES IN MANHOLE
0MWM—
377.5DAGS—
0MWL—

Properties (4)

additional_info
SC365102
custom_field_two
2
customer
LACSD
datetime
2018-09-24T04:17:18-07:00
