Wastewater/Activity/PacpInspection/1.0Sep 24, 2018, 10:18 AM
16 0095_16 0083 _09242018_031858.mp4
- Date
- 09/24/2018
- W/O
- 729452
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00641
- PipeID
- P13133
- Time
- 3:18 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6040
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTION 5
- City
- SAN MARINO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729452_TV16009_OCT2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 16 0095
- Downstream MH
- 16 0083
- Dir. of Survey
- Downstream
- Length Surveyed
- 12.4 ft.
- Total Length
- 12.4 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

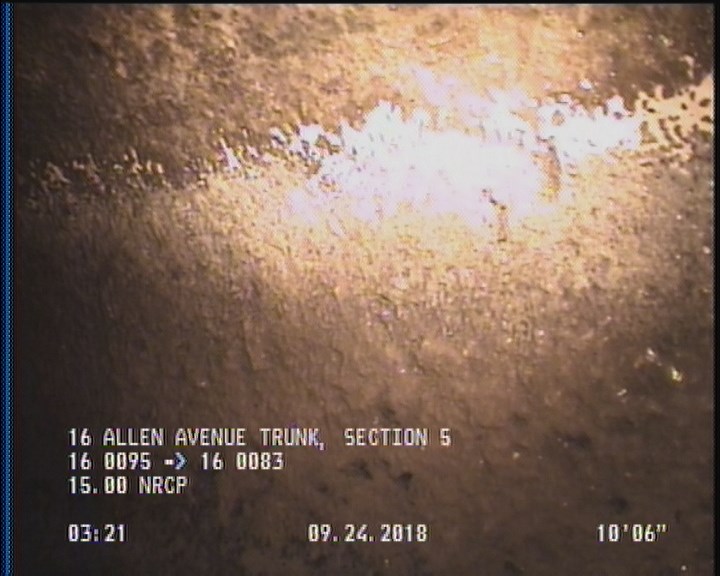

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

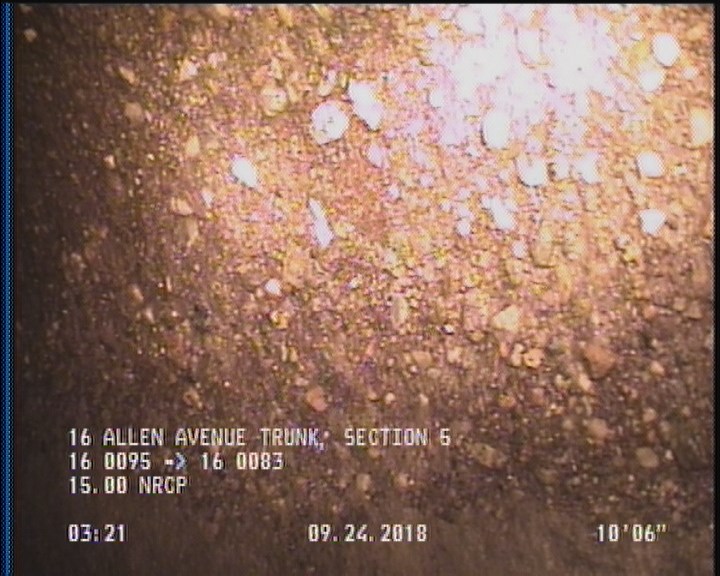

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

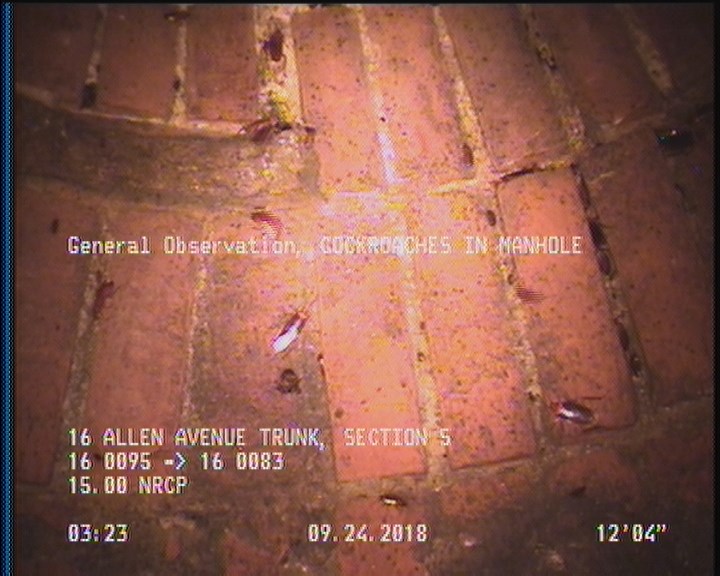

12.4 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 11 O'CLOCK |
| 12.4 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 12.4 | AMH | 16 0083 |
| 2 | DAGS | — |
| 10.6 | SAP | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 10.6 | DAGS | — |
| 12.4 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 16 0095 |
| 2 | SAP | — |
Properties (4)
- additional_info
- SC365102
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-24T03:18:19-07:00
