Wastewater/Activity/PacpInspection/1.0Oct 12, 2018, 09:11 AM
02 0005_02 0132_12102018_021218.mp4
- Date
- 10/12/2018
- W/O
- 729318
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00234
- PipeID
- P03030
- Time
- 2:11 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6147
- Sewer Name
- 02 ARTESIA EXTENSION TRUNK
- City
- BELLFLOWER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729318_TV02263_OCT2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 02 0005
- Downstream MH
- 02 0132
- Dir. of Survey
- Downstream
- Length Surveyed
- 7.3 ft.
- Total Length
- 7.3 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

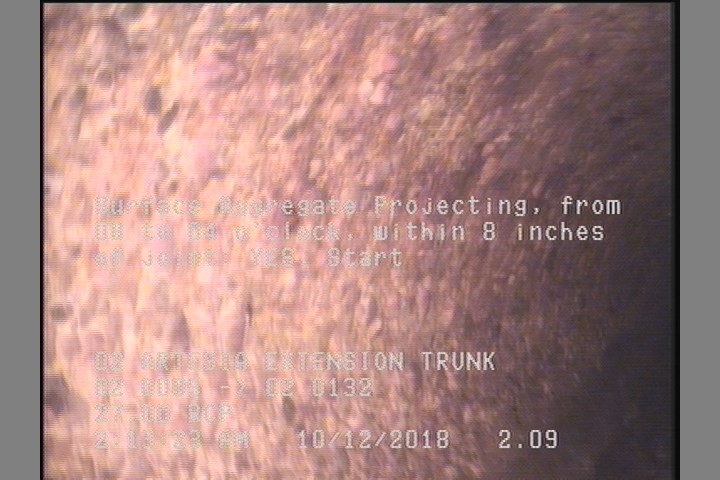

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
3.4 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
7.3 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 7.3 | SAP | — |
| 0 | AMH | 02 0005 N |
| 2.1 | SAP | — |
| 7.3 | MSA | DOWN LEG OF THE U/S SIPHON |
| 3.4 | SRV | — |
| 7.3 | SRV | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC365214
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-10-12T02:11:55-07:00
