Wastewater/Activity/PacpInspection/1.0Sep 27, 2018, 10:02 AM
16 0421_16 0420 _09272018_030218.mp4
- Date
- 09/27/2018
- W/O
- 729317
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00638
- PipeID
- P13470
- Time
- 3:02 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6048
- Sewer Name
- 16 ALHAMBRA ROAD TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729317_TV16109_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 16 0421
- Downstream MH
- 16 0420
- Dir. of Survey
- Downstream
- Length Surveyed
- 250.7 ft.
- Total Length
- 250.7 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2I11
- O&M Rating
- 99
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 104
Observation photos (4)

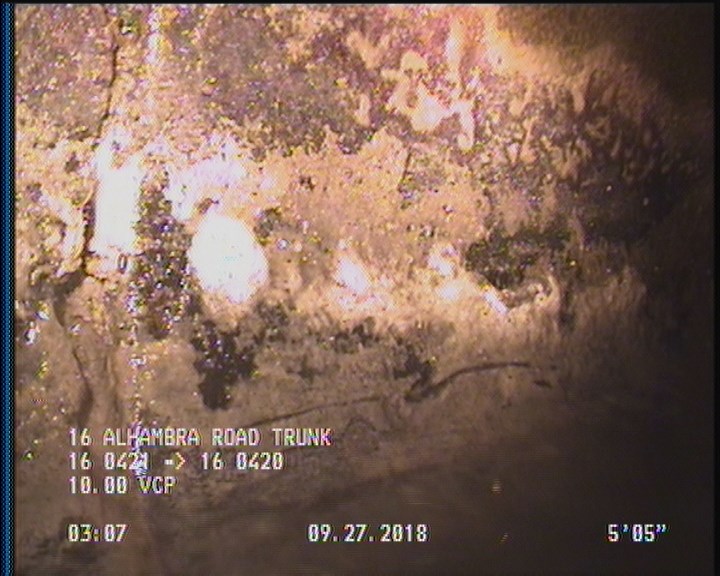

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

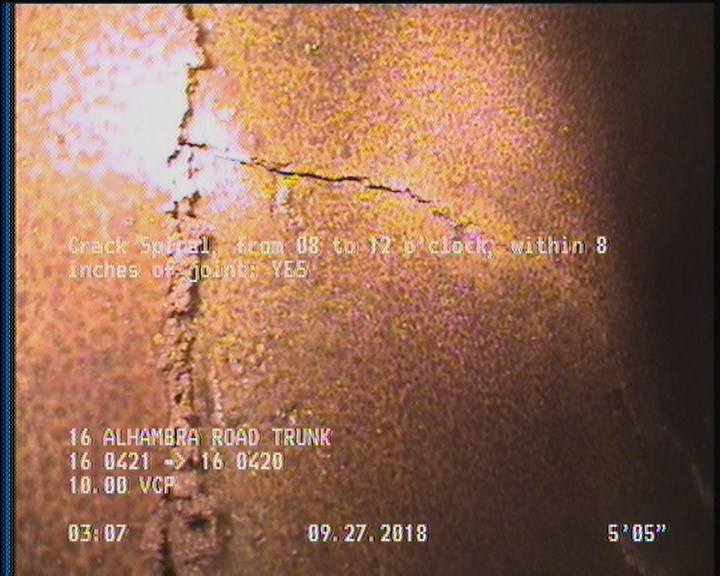

5.4 ft. - Crack Spiral, from 08 to 12 o'clock, within 8 inches of joint: YES

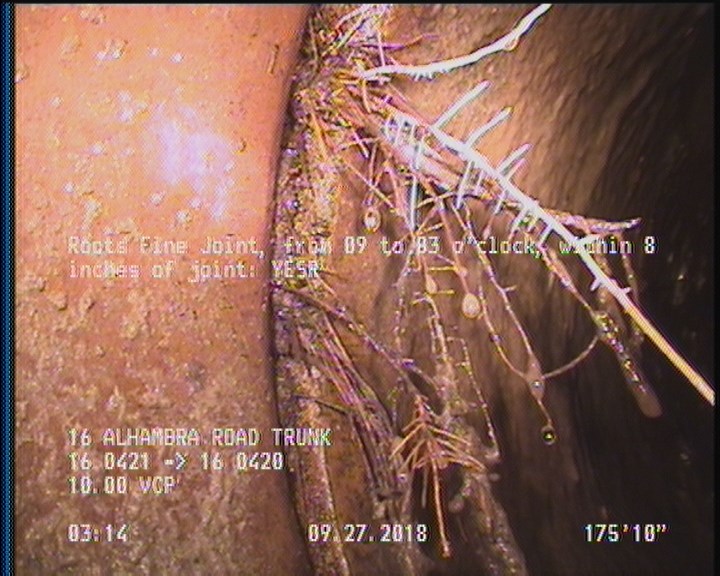

175.8 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YESR

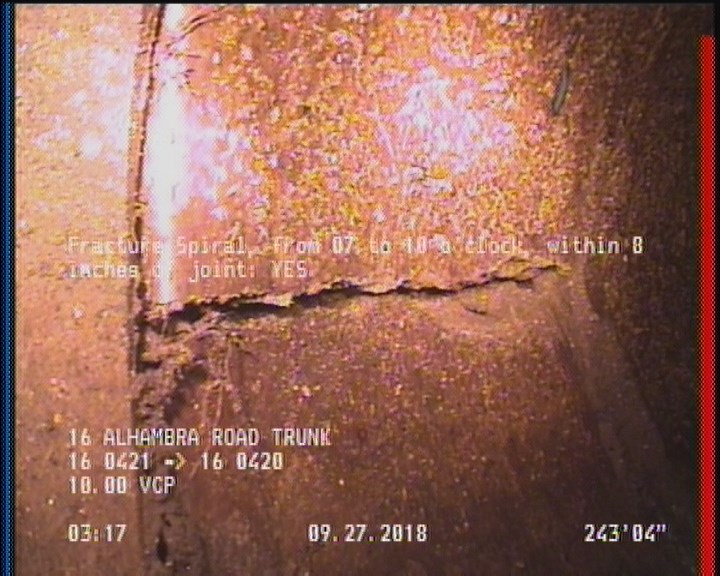

243.3 ft. - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH |
| 5.4 | CS | — |
| 105 | TFA | — |
| 177 | TFA | — |
| 0 | AMH | 16 0421 |
| 2 | DAGS | — |
| 250.7 | AMH | 16 0420 |
| 175.8 | RFJ | — |
| 0 | MWL | — |
| 243.3 | FS | — |
| 0 | MWM | — |
| 248.6 | DAGS | — |
Properties (4)
- additional_info
- SC365111
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-27T03:02:04-07:00
