Wastewater/Activity/PacpInspection/1.0Oct 24, 2018, 06:19 AM
14 0651_14 0650 _23102018_225552.mp4
- Date
- 10/23/2018
- W/O
- 729315
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00584
- PipeID
- P18254
- Time
- 11:19 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6180
- Sewer Name
- 14 WEST SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729315_TV14065_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 14 0650
- Downstream MH
- 14 0651
- Dir. of Survey
- Upstream
- Length Surveyed
- 356.9 ft.
- Total Length
- 356.9 ft.
- Structural Index
- 4
- Structural Quick
- 4131
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 142
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 149
Observation photos (4)

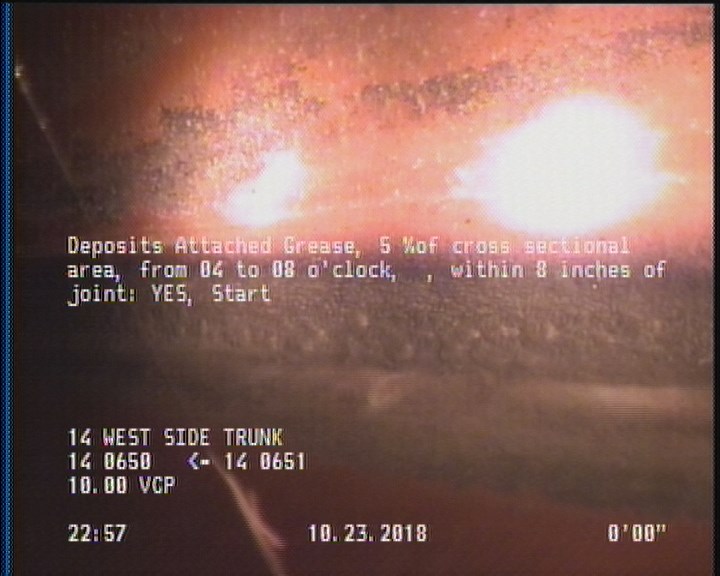

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

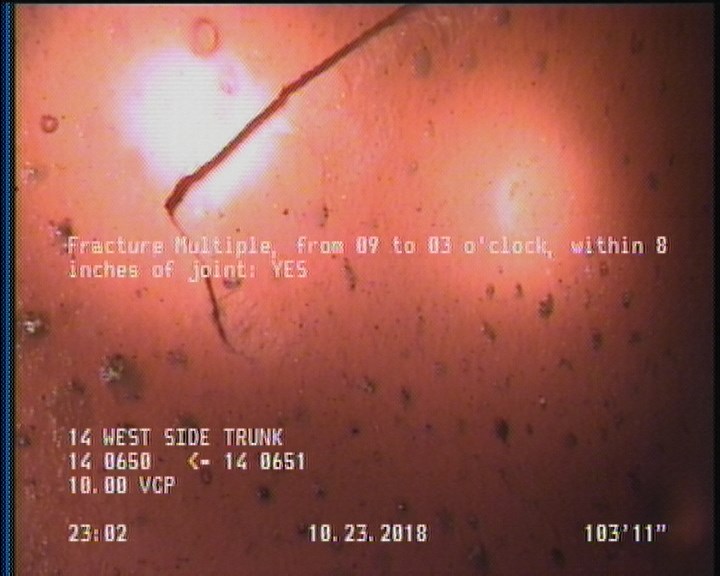

103.9 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

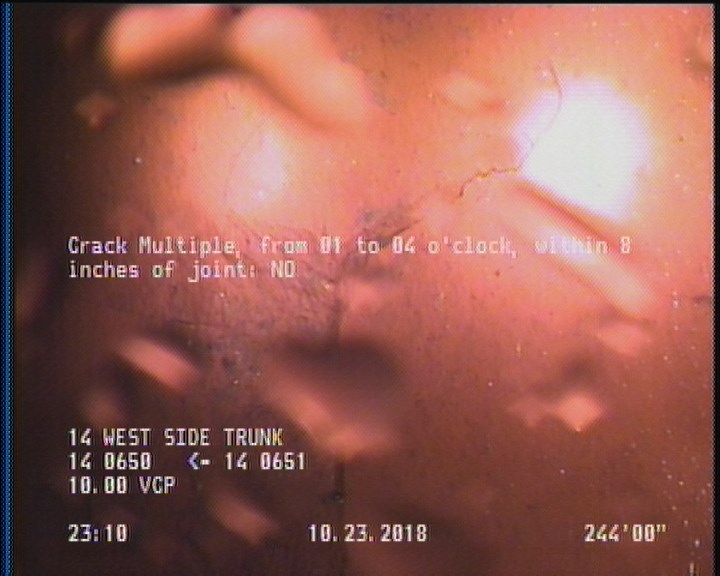

244 ft. - Crack Multiple, from 01 to 04 o'clock, within 8 inches of joint: NO

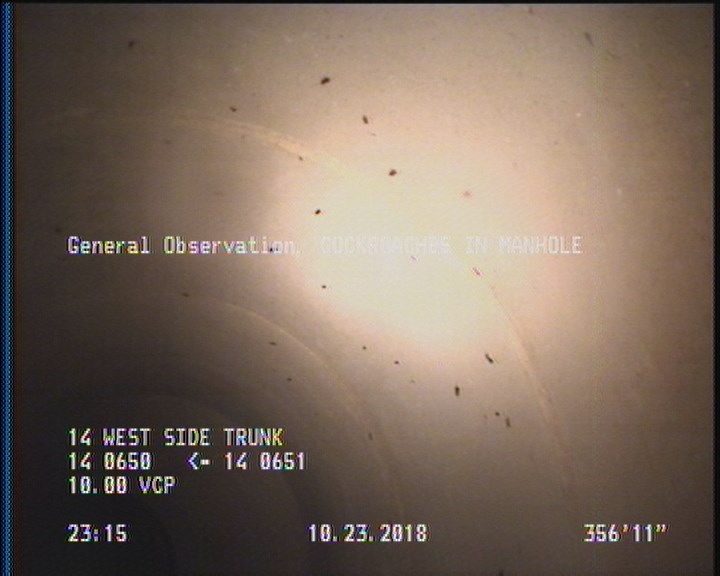

356.9 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 103.9 | FM | — |
| 106.2 | TFA | — |
| 356.9 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 356.9 | MGO | COCKROACHES IN MANHOLE |
| 244 | CM | — |
| 0 | MWM | — |
| 356.9 | AMH | 14 0651 |
| 0 | MWL | — |
| 2 | DAGS | — |
| 0 | AMH | 14 0650 |
| 245.2 | TFA | — |
| 242.9 | TBA | — |
| 354.7 | DAGS | — |
| 108.8 | TFA | — |
Properties (4)
- additional_info
- SC365144
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-23T23:19:34-07:00
