Wastewater/Activity/PacpInspection/1.0Oct 23, 2018, 08:01 AM
14 0180_14 0179_23102018_010203.mp4
- Date
- 10/23/2018
- W/O
- 729315
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00584
- PipeID
- P18219
- Time
- 1:01 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6178
- Sewer Name
- 14 WEST SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729315_TV14065_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0180
- Downstream MH
- 14 0179
- Dir. of Survey
- Downstream
- Length Surveyed
- 246.4 ft.
- Total Length
- 246.4 ft.
- Structural Index
- 3
- Structural Quick
- 3I00
- Structural Rating
- 144
- O&M Index
- 2
- O&M Quick
- 412I
- O&M Rating
- 102
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 246
Observation photos (2)

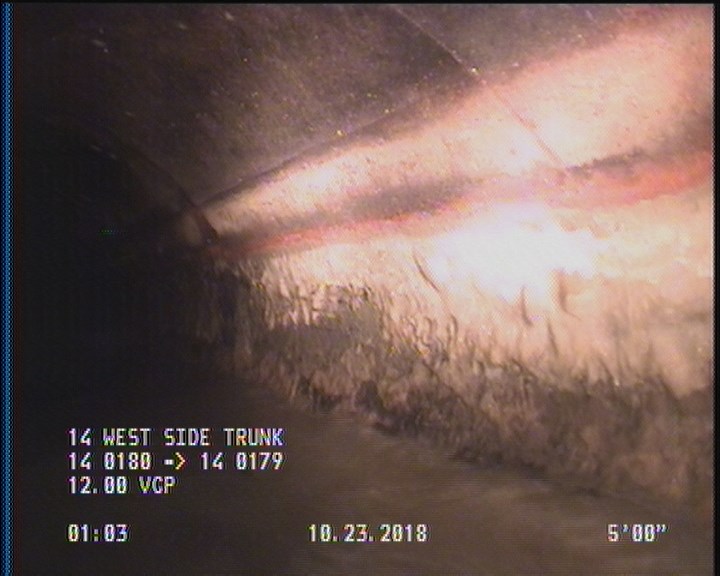

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

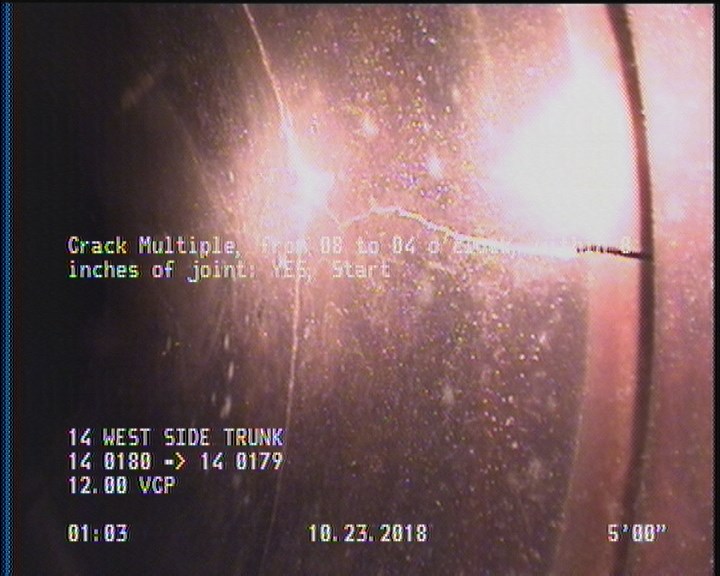

5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 246.4 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 244.7 | CM | — |
| 0 | AMH | 14 0180 |
| 244.7 | DAGS | — |
| 2 | DAGS | — |
| 246.4 | AMH | 14 0179 |
| 5 | CM | — |
Properties (4)
- additional_info
- SC365142
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-23T01:01:47-07:00
