Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 7, 2018, 05:25 PM

  • H 0644_H 0643_1172018_103141.mp4

Date
11/07/2018
W/O
0736432
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00192
PipeID
P11050
Time
9:25 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7847
Sewer Name
H JOINT OUTFALL H - UNIT 8J
City
BALDWIN PARK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Capital Improvement Program Assesment
Project
20181107DF_JOINT_OUTFALL_H_UNIT_8J
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
H 0644
Downstream MH
H 0643
Dir. of Survey
Downstream
Length Surveyed
335.5 ft.
Total Length
335.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole H 0644 to H 0643
MH: H 0644MH: H 0643downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:46 AM0.1 ft. MWL - Water Level, 30 %of cross sectional area0.1 ft. MWM - Water Mark, 35 %of cross sectional area5.8 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG11.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open30.4 ft. MGP - General Photograph - NO STACK/ABANDONED MH @ 30'45.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4", 4"50 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open81.4 ft. MGP - General Photograph111.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open121.5 ft. MGP - General Photograph127.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"168.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open197.2 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 4" - Open205 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"229.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open237.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"282.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"315.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open319.3 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"323.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open327.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open333.6 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 85% MAG334.2 ft. MGO - General Observation - ROACHES @ MH335 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach335.5 ft. MGO - General Observation - Grease Throughout The Reach (5%)335.5 ft. AMH - Downstream Manhole, Survey Ends - 11:08 AM

Observation photos (4)

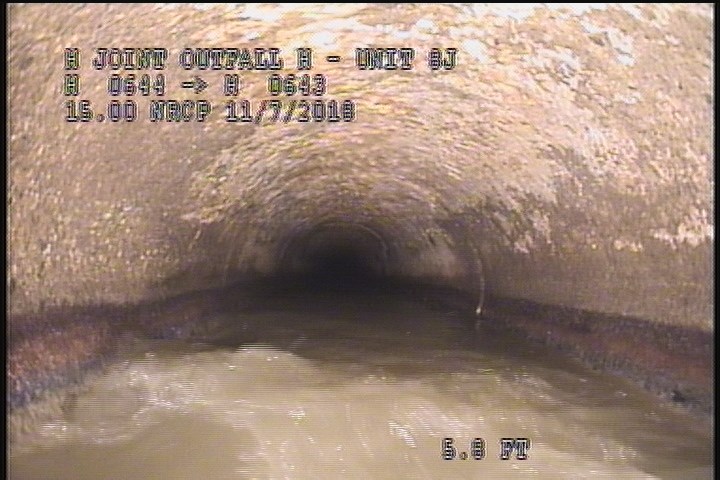

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

    5.8 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

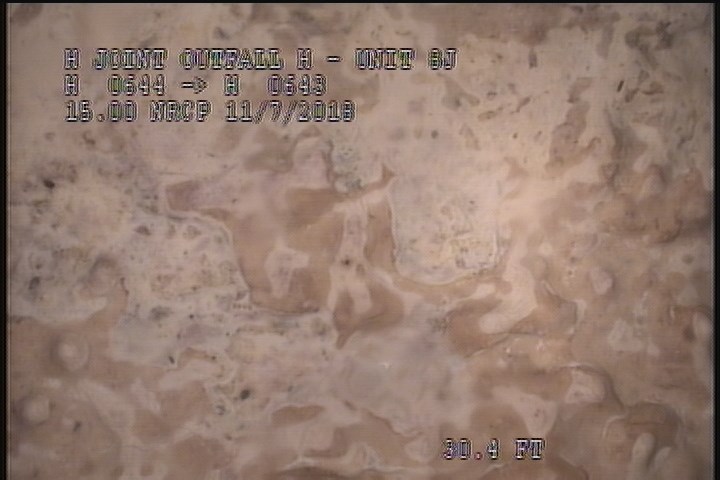

  • General Photograph - NO STACK/ABANDONED MH @ 30'

    30.4 ft. - General Photograph - NO STACK/ABANDONED MH @ 30'

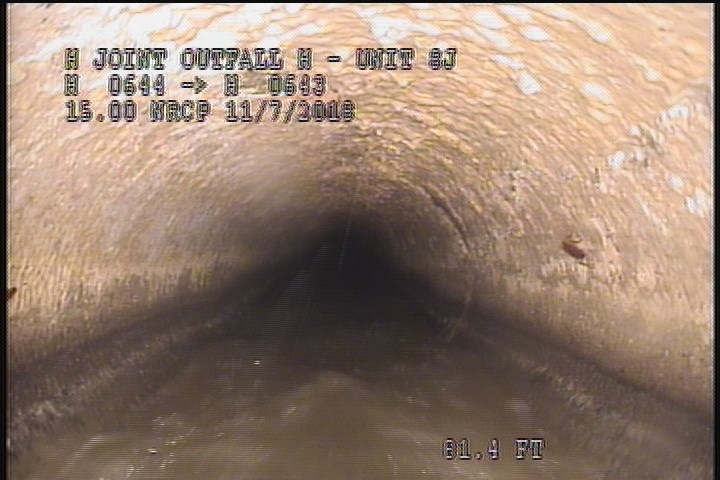

  • General Photograph

    81.4 ft. - General Photograph

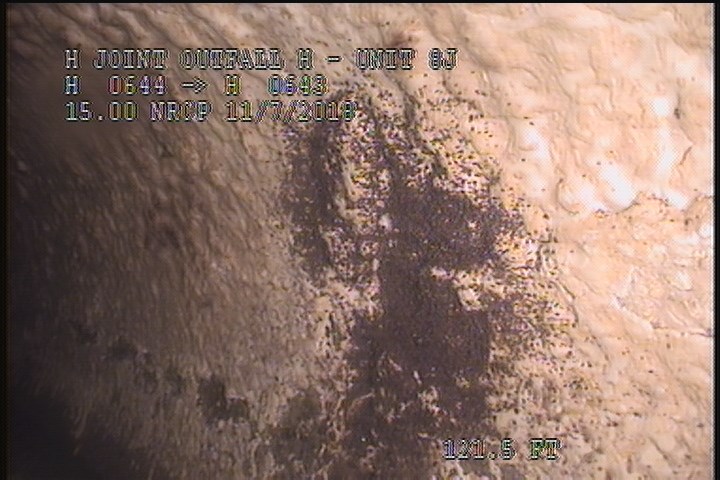

  • General Photograph

    121.5 ft. - General Photograph

All inspections of P11050Work order 0736432

Observations (27)

DistanceCodeObservation
319.3TFA—
127.9TFA—
5.8SZ85% MAG
45.8TFA—
334.2MGOROACHES @ MH
323.6TFOpen
335.5MGOGrease Throughout The Reach (5%)
30.4MGPNO STACK/ABANDONED MH @ 30'
168.4TFOpen
282.8TFA—
81.4MGP—
111.3TFOpen
0.1MWL—
335MGOPeeling & Flaking Throughout The Reach
229.5TFOpen
327.6TFOpen
121.5MGP—
315.4TFOpen
197.2TBOpen
0AMH9:46 AM
11.8TFOpen
0.1MWM—
333.6SZ85% MAG
335.5AMH11:08 AM
205TFA—
50TFOpen
237.7TFA—

Properties (5)

additional_info
PAPERWORK SHOWS THE FOOTAGEWRONG (30'). THE CORRECT FOOTAGE IS 335'.
customer
LACSD
datetime
2018-11-07T09:25:13-08:00
documentation
FRANKLIN, IGNACIO, CASTILLO, RUVALCABA
is_lateral_inspection
false
