Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 5, 2018, 09:00 PM

  • H 0645_H 0644_1152018_130333.mp4

Date
11/05/2018
W/O
0736432
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00192
PipeID
P11051
Time
1:00 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7845
Sewer Name
H JOINT OUTFALL H - UNIT 8J
City
BALDWIN PARK
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Capital Improvement Program Assesment
Project
20181105SHO_JOINT_OUTFALL_H_UNIT_8J
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
H 0645
Downstream MH
H 0644
Dir. of Survey
Downstream
Length Surveyed
171.3 ft.
Total Length
171.3 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole H 0645 to H 0644
MH: H 0645MH: H 0644downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 06455.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start5.5 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start10.2 ft. MGO - General Observation - 50% MAG COAT115.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"147.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"171.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish171.3 ft. AMH - Downstream Manhole, Survey Ends - H 0644171.3 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

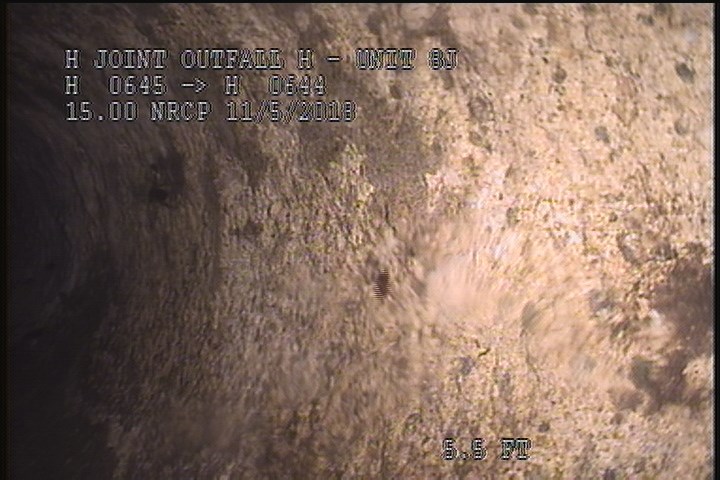

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    5.5 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

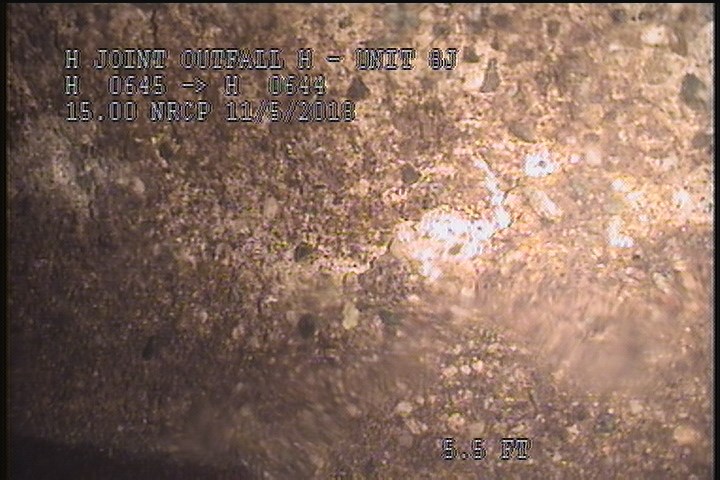

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    5.5 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P11051Work order 0736432

Observations (11)

DistanceCodeObservation
171.3SAP—
5.5SSS—
10.2MGO50% MAG COAT
171.3AMHH 0644
171.3SSS—
147.3TF—
0MWM—
5.5SAP—
0MWL—
115.8TFA—
0AMHH 0645

Properties (7)

additional_info
RFIR
custom_field_three
SPALLING & PROJ. AGG.
custom_field_two
2
customer
LACSD
datetime
2018-11-05T13:00:43-08:00
documentation
OBREGON, YOUNG, RUVALCABA, CASTILLO
is_lateral_inspection
false
