Wastewater/Activity/PacpInspection/1.0Nov 5, 2018, 07:05 PM
H 0646_H 0645_1152018_110835.mp4
- Date
- 11/05/2018
- W/O
- 0736432
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00192
- PipeID
- P11052
- Time
- 11:05 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7845
- Sewer Name
- H JOINT OUTFALL H - UNIT 8J
- City
- BALDWIN PARK
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 24
- Purpose
- Capital Improvement Program Assesment
- Project
- 20181105SHO_JOINT_OUTFALL_H_UNIT_8J
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- H 0646
- Downstream MH
- H 0645
- Dir. of Survey
- Downstream
- Length Surveyed
- 119.8 ft.
- Total Length
- 119.8 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

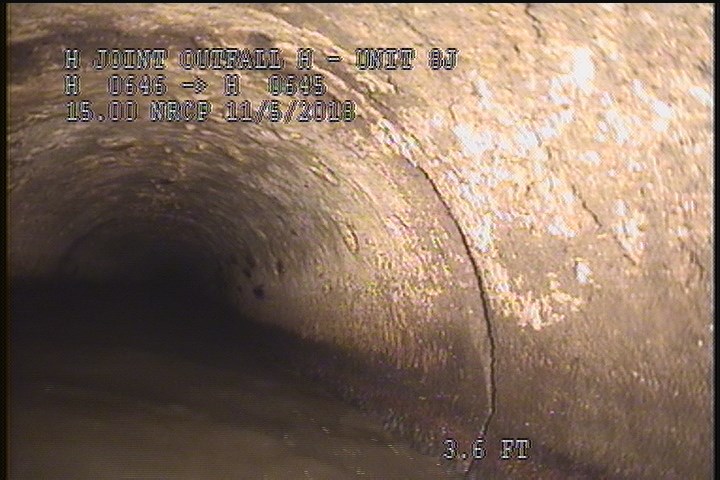

3.6 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

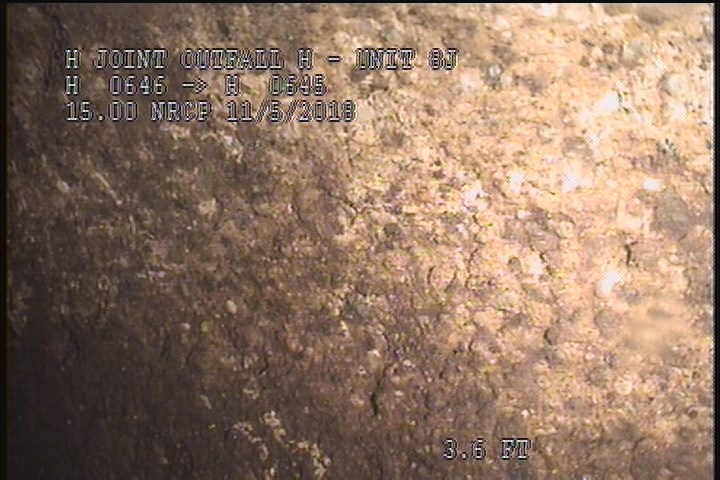

3.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 3.6 | SSS | — |
| 0 | AMH | MH 0646 |
| 119.8 | SSS | — |
| 60.1 | TF | — |
| 119.8 | AMH | MH 0645 |
| 0 | MWL | — |
| 7.7 | MGO | 75% MAG COAT |
| 119.8 | SAV | — |
| 0 | MGO | ACTIVE CONNECTION IN THE MH @ 3 |
| 3.6 | SAV | — |
| 0 | MWM | — |
Properties (7)
- additional_info
- RFIR
- custom_field_three
- SPALLING & VISIBLE AGG.
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-05T11:05:28-08:00
- documentation
- OBREGON, YOUNG, RUVALCABA, CASTILLO
- is_lateral_inspection
- false
