Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 5, 2018, 06:19 PM

  • H 0647_H 0646_1152018_104450.mp4

Date
11/05/2018
W/O
0736432
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00192
PipeID
P11053
Time
10:19 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7845
Sewer Name
H JOINT OUTFALL H - UNIT 8J
City
BALDWIN PARK
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Capital Improvement Program Assesment
Project
20181105SHO_JOINT_OUTFALL_H_UNIT_8J
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
H 0647
Downstream MH
H 0646
Dir. of Survey
Downstream
Length Surveyed
341.2 ft.
Total Length
341.2 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole H 0647 to H 0646
MH: H 0647MH: H 0646downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 06470 ft. MGO - General Observation - ACTIVE CONNECTION IN MH @ 30 ft. MWM - Water Mark, 30 %of cross sectional area4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4 ft. MGO - General Observation - 50% MAG COAT INTACT4 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start51.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"55.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"100.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"145.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"168.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"202.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"287.4 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"307.8 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"341.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish341.1 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish341.2 ft. AMH - Downstream Manhole, Survey Ends - MH 0646341.2 ft. MGO - General Observation - ACTIVE CONENCTION IN THE MH @ 3

Observation photos (2)

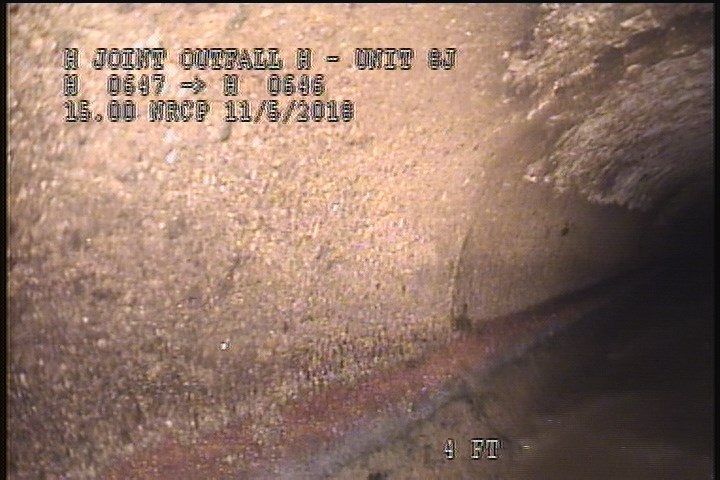

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

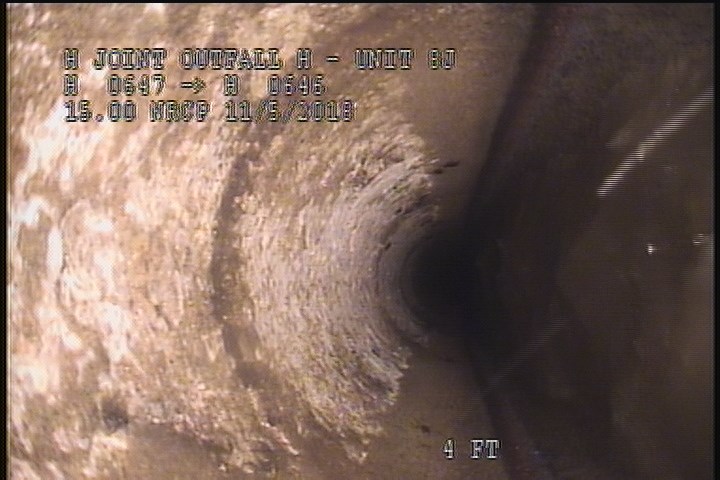

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    4 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P11053Work order 0736432

Observations (19)

DistanceCodeObservation
0MWL—
287.4TF—
341.1SAV—
202.6TF—
4SAV—
0AMHH 0647
0MGOACTIVE CONNECTION IN MH @ 3
51.1TFC—
4MGO50% MAG COAT INTACT
341.1SSS—
100.9TF—
168.9TFC—
341.2AMHMH 0646
0MWM—
55.5TF—
4SSS—
145.1TFC—
341.2MGOACTIVE CONENCTION IN THE MH @ 3
307.8TF—

Properties (7)

additional_info
RFIR
custom_field_three
SPALLING & VISIBLE AGG.
custom_field_two
2
customer
LACSD
datetime
2018-11-05T10:19:58-08:00
documentation
OBREGON, YOUNG, RUVALCABA, CASTILLO
is_lateral_inspection
false
