Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 5, 2018, 11:44 AM

  • 05 1581_05 1580_1152018_051237.mp4

Date
11/05/2018
W/O
0736672
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00485
PipeID
P06805
Time
3:44 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1040
Sewer Name
05 MARICOPA STREET TRUNK
City
TORANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
26
Purpose
Capital Improvement Program Assesment
Project
20181105MDM_MARICOPA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 1581
Downstream MH
05 1580
Dir. of Survey
Downstream
Length Surveyed
362.7 ft.
Total Length
362.7 ft.
Structural Index
2
Structural Quick
352A
Structural Rating
35
O&M Index
2
O&M Quick
3121
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
41
Pipe schematic from manhole 05 1581 to 05 1580
MH: 05 1581MH: 05 1580downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:15AM2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start7.4 ft. RFJ - Roots Fine Joint, from 02 to 03 o'clock, within 8 inches of joint: YESR - 1%7.4 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SLIGHT14.7 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE19.7 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H35.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL40.2 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SL40.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL50.2 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H55.2 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H55.2 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SL60.3 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H60.3 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - SL65.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS65.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS65.2 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS65.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS86.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped115.4 ft. RMJ - Roots Medium Joint, from 08 to 10 o'clock, 5 %, within 8 inches of joint: YESR269.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped361.9 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active361.9 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 40% HAIRLINE AT JOINTS361.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish361.9 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 20% HAIRLINE AT JOINTS361.9 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 15% SLIGHT AT JOINTS361.9 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active361.9 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 40% SLIGHT AT JOINTS362.7 ft. AMH - Downstream Manhole, Survey Ends - 5:45AM

Observation photos (1)

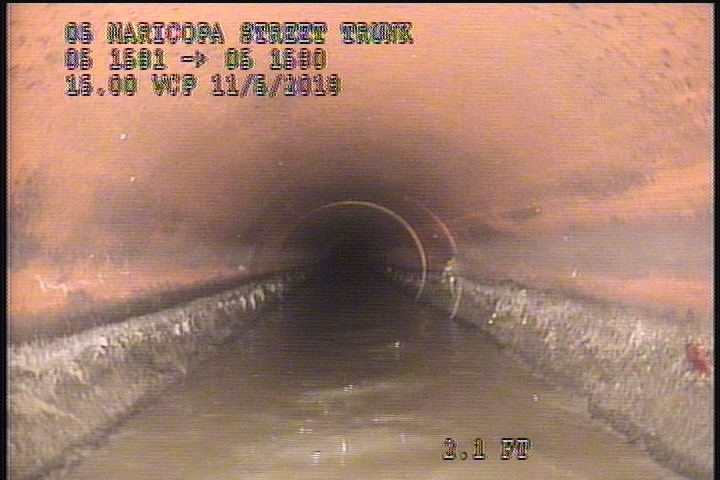

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P06805Work order 0736672

Observations (32)

DistanceCodeObservation
65.2FLSLIGHT AT JOINTS
361.9MGOConn. @ Mh, 9 O' Clock. Active
361.9FC40% HAIRLINE AT JOINTS
7.4RFJ1%
361.9DAGS—
361.9FL20% HAIRLINE AT JOINTS
65.2FCSLIGHT AT JOINTS
269.4TFCCapped
86.7TFCCapped
65.2FCHAIRLINE AT JOINTS
0MWM—
361.9FL15% SLIGHT AT JOINTS
0MGOConn. @ Mh, 3 O' Clock. OPEN
2.1DAGS—
0MWL—
361.9MGOConn. @ Mh, 3 O' Clock. Active
362.7AMH5:45AM
115.4RMJ—
361.9FC40% SLIGHT AT JOINTS
35.1FCSL
55.2FLH
14.7FCHAIRLINE
50.2FCH
55.2FLSL
60.3FCH
0AMH5:15AM
19.7FCH
40.2FCSL
65.2FLHAIRLINE AT JOINTS
7.4FCSLIGHT
60.3FCSL
40.2FLSL

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2018-11-05T03:44:35-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
