Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 5, 2018, 11:43 AM

  • 05 1582_05 1581_1152018_043559.mp4

Date
11/05/2018
W/O
0736672
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00485
PipeID
P06806
Time
3:43 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1040
Sewer Name
05 MARICOPA STREET TRUNK
City
TORANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
26
Purpose
Capital Improvement Program Assesment
Project
20181105MDM_MARICOPA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 1582
Downstream MH
05 1581
Dir. of Survey
Downstream
Length Surveyed
365.6 ft.
Total Length
365.6 ft.
Structural Index
2
Structural Quick
3A2F
Structural Rating
103
O&M Index
2
O&M Quick
3122
O&M Rating
11
Overall Index
2
Overall Quick
—
Overall Rating
114
Pipe schematic from manhole 05 1582 to 05 1581
MH: 05 1582MH: 05 1581downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:35AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area7.4 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SLIGHT7.4 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SL23.6 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL23.6 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL27.3 ft. RFJ - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR - 2%38.6 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL43.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE64.1 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SL64.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H73.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL89.1 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL95.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active95.2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES114.7 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H114.7 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H130.2 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SL130.3 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SL130.3 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SL145.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H155.8 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H155.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL176 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL180.8 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H191.2 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H196.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H201.6 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H201.6 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H202.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start211.8 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H221.9 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL226.8 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H226.8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H248.1 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H252.8 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H257.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H257.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H263.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H263.1 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - H268 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SL273.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped278.1 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H283.6 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL283.6 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL298.5 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H308.9 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H319.3 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H329.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H333.8 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR - 3%339.2 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 5 %, within 8 inches of joint: YESR339.2 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL349.5 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H349.5 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H349.5 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR - 3%360.6 ft. RFJ - Roots Fine Joint, from 02 to 04 o'clock, within 8 inches of joint: YESR360.6 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H365 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN365 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish365.6 ft. AMH - Downstream Manhole, Survey Ends - 5:10AM

Observation photos (1)

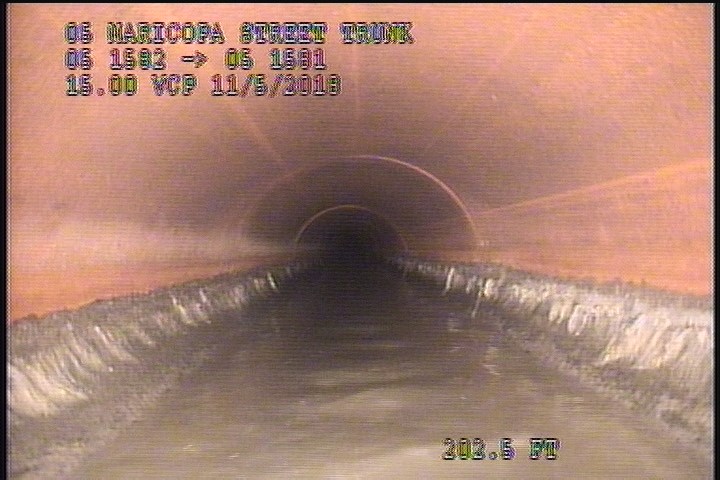

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    202.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P06806Work order 0736672

Observations (61)

DistanceCodeObservation
283.6FCSL
283.6FCSL
329.2FLH
365.6AMH5:10AM
201.6FCH
263.1FLH
23.6FCSL
273.9TFCCapped
201.6FCH
360.6RFJ—
89.1FCSL
145.7FLH
211.8FCH
226.8FCH
114.7FCH
263.1FCH
27.3RFJ2%
64.1FCSL
95.2TFActive
7.4FCSLIGHT
73.7FCSL
43.2FLHAIRLINE
64.1FLH
130.3FCSL
155.8FCH
180.8FCH
7.4FCSL
0AMH4:35AM
226.8FCH
360.6FCH
0MWL—
221.9FCSL
339.2RMJ—
268FCSL
155.8FCSL
349.5FCH
349.5FLH
130.2FCSL
23.6FCSL
95.2DAGS—
257.7FLH
365MGOConn. @ Mh, 3 O' Clock. OPEN
257.7FLH
333.8RFJ3%
319.3FCH
196.4FLH
114.7FCH
38.6FCSL
278.1FCH
191.2FCH
252.8FCH
298.5FCH
0MWM—
339.2FCSL
308.9FLH
202.5DAGS—
248.1FLH
176FCSL
365DAGS—
130.3FCSL
349.5RFJ3%
