Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 5, 2018, 11:07 AM

  • 05 1583_06 1582_1152018_030946.mp4

Date
11/05/2018
W/O
0736672
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00485
PipeID
P06807
Time
3:07 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1039
Sewer Name
05 MARICOPA STREET TRUNK
City
TORANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
26
Purpose
Capital Improvement Program Assesment
Project
20181105MDM_MARICOPA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 1583
Downstream MH
06 1582
Dir. of Survey
Downstream
Length Surveyed
174.9 ft.
Total Length
174.9 ft.
Structural Index
2
Structural Quick
4133
Structural Rating
33
O&M Index
2
O&M Quick
2211
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
38
Pipe schematic from manhole 05 1583 to 06 1582
MH: 05 1583MH: 06 1582downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:10AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active2.8 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: NO5.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start5.5 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE26.3 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - SLIGHT36.6 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H36.6 ft. RFJ - Roots Fine Joint, from 08 to 10 o'clock, within 8 inches of joint: YESR - 2%36.6 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H57.6 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL78.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped92.7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SL92.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL97.6 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H112.8 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL128.4 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL133.3 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H133.3 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H138.7 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H154.3 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H174.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish174.9 ft. AMH - Downstream Manhole, Survey Ends - 3:25AM

Observation photos (1)

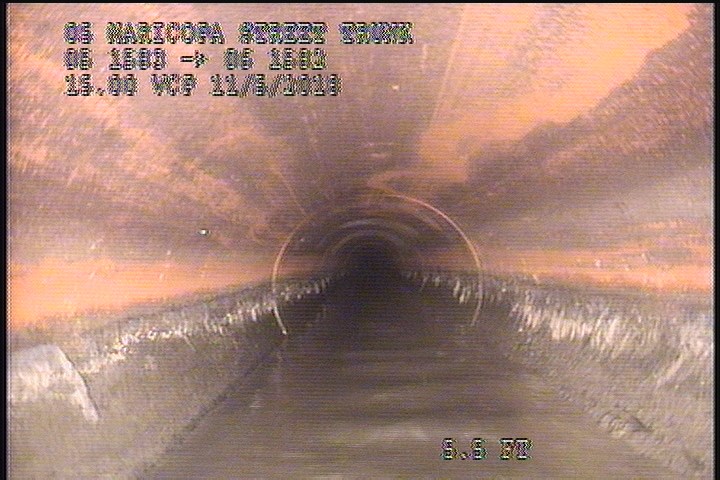

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    5.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P06807Work order 0736672

Observations (25)

DistanceCodeObservation
133.3FCH
78.8TFCCapped
0MWM—
92.7FLSL
0AMH3:10AM
36.6FCH
26.3FCSLIGHT
5.5DAGS—
97.6FCH
138.7FCH
57.6FCSL
133.3FCH
174.9AMH3:25AM
36.6RFJ2%
0MGOConn. @ Mh, 9 O' Clock. Active
92.7FLSL
2.8DAGS—
154.3FLH
112.8FMSL
0MWL—
5.5FCHAIRLINE
0MGOConn. @ Mh, 3 O' Clock. Active
128.4FCSL
174.3DAGS—
36.6FCH

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2018-11-05T03:07:17-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
