Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 5, 2018, 09:42 AM

  • 05 1585_05 1584_1152018_020434.mp4

Date
11/05/2018
W/O
0736672
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00485
PipeID
P06809
Time
1:42 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1039
Sewer Name
05 MARICOPA STREET TRUNK
City
TORANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
26
Purpose
Capital Improvement Program Assesment
Project
20181105MDM_MARICOPA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 1585
Downstream MH
05 1584
Dir. of Survey
Downstream
Length Surveyed
372.7 ft.
Total Length
372.7 ft.
Structural Index
2
Structural Quick
413B
Structural Rating
82
O&M Index
3
O&M Quick
4223
O&M Rating
15
Overall Index
2
Overall Quick
—
Overall Rating
97
Pipe schematic from manhole 05 1585 to 05 1584
MH: 05 1585MH: 05 1584downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:10AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area1 ft. MGO - General Observation - SEVERE DAMGE SHELF 9:002 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SLIGHT14.3 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL51.6 ft. MWM - Water Mark, 30 %of cross sectional area96.7 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE101.3 ft. RFJ - Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YESR - 2%106.6 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL106.6 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL117.7 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL121.7 ft. MWM - Water Mark, 50 %of cross sectional area126.8 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL140.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES140.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active147.6 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - H147.6 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL151.3 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active164.6 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL164.6 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SL168.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL168.7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H178.6 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SL178.6 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H178.6 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SL189.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H189.9 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H193.6 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H198.9 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H204.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL204.1 ft. MGO - General Observation - 15" VCP215.1 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL224.5 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL229.4 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H235.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active235.3 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES246.4 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL270.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H286.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open296.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H301.5 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H301.5 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL328.5 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL331.9 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL354 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H367.7 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL372.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish372.7 ft. AMH - Downstream Manhole, Survey Ends - 3:00AM

Observation photos (5)

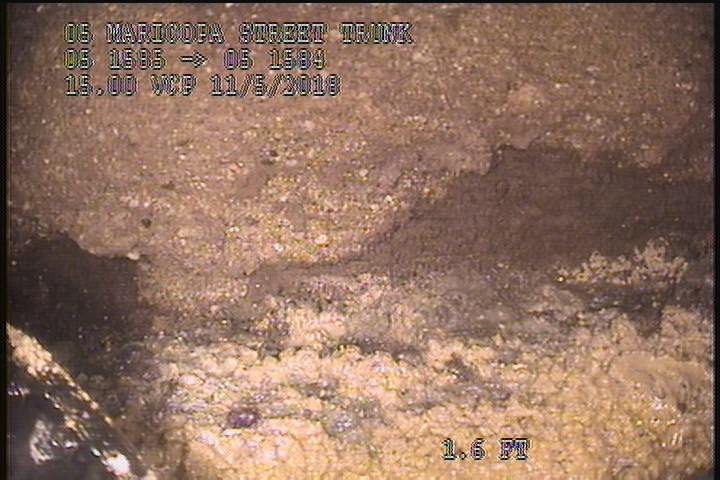

  • General Observation - SEVERE DAMGE SHELF 9:00

    1 ft. - General Observation - SEVERE DAMGE SHELF 9:00

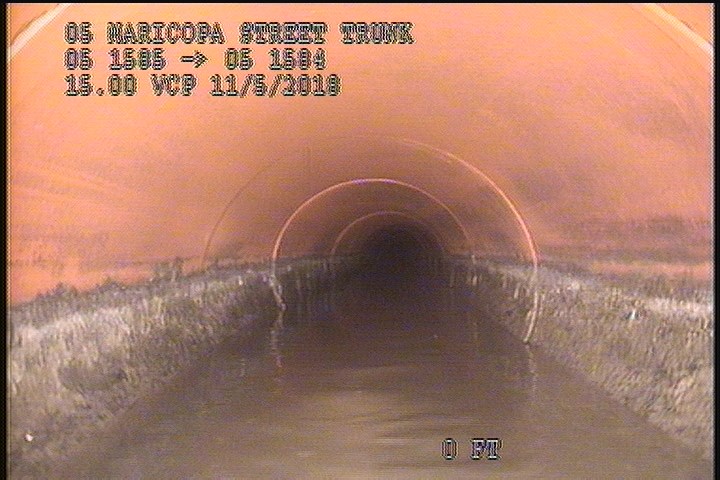

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

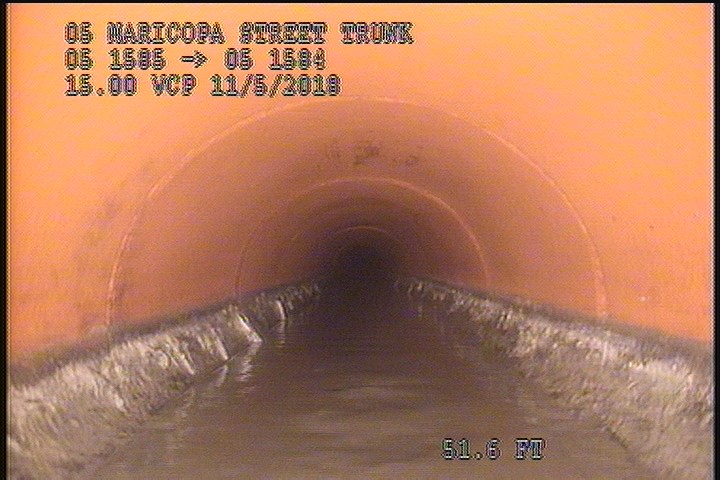

  • Water Mark, 30 %of cross sectional area

    51.6 ft. - Water Mark, 30 %of cross sectional area

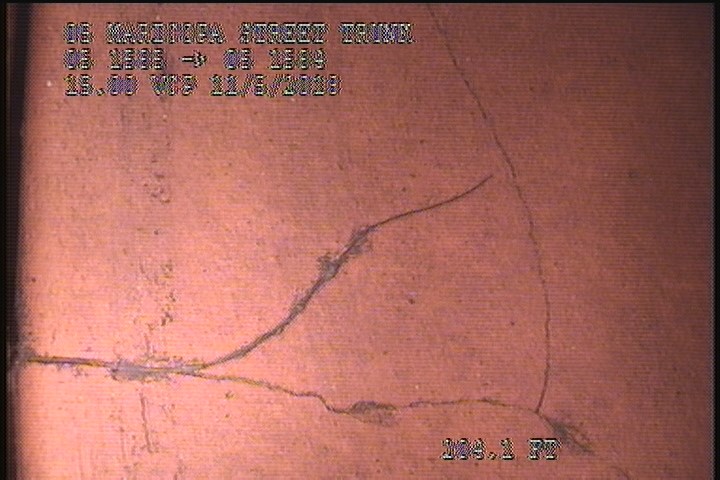

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL

    204.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL

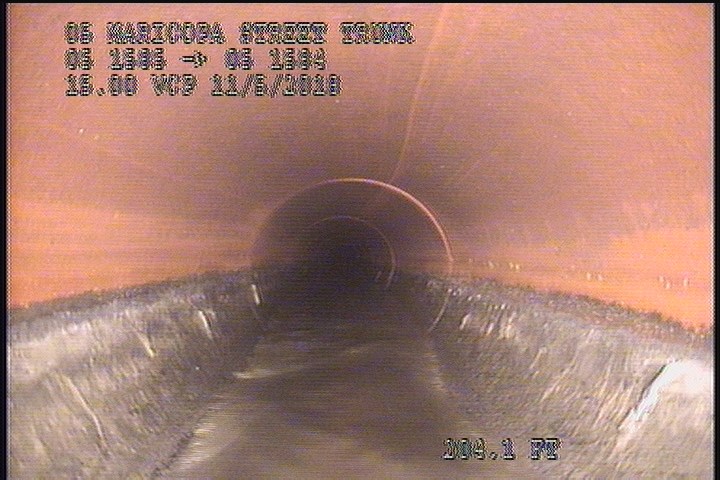

  • General Observation - 15" VCP

    204.1 ft. - General Observation - 15" VCP

All inspections of P06809Work order 0736672

Observations (50)

DistanceCodeObservation
117.7FCSL
7FLSLIGHT
193.6FLH
0AMH2:10AM
2DAGS—
101.3RFJ2%
204.1FMSL
164.6FCSL
51.6MWM—
178.6FCSL
106.6FCSL
198.9FLH
229.4FLH
189.9FLH
151.3TBActive
372.7AMH3:00AM
246.4FCSL
106.6FCSL
301.5FLH
286.7TFOpen
296.7FLH
126.8FCSL
140.8DAGS—
0MWL—
140.8TFActive
367.7FLSL
96.7FCHAIRLINE
178.6FLH
147.6FCH
235.3TFActive
14.3FCSL
372.2DAGS—
168.7FLSL
354FLH
204.1MGO15" VCP
224.5FCSL
235.3DAGS—
328.5FCSL
189.9FCH
164.6FCSL
168.7FLH
178.6FLSL
331.9FCSL
121.7MWM—
215.1FCSL
1MGOSEVERE DAMGE SHELF 9:00
301.5FCSL
147.6FCSL
0MWM—
270.9FLH

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2018-11-05T01:42:20-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
