Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 5, 2018, 08:43 AM

  • 05 1586_05 1585_1152018_005807.mp4

Date
11/05/2018
W/O
0736672
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00485
PipeID
P06810
Time
12:43 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1039
Sewer Name
05 MARICOPA STREET TRUNK
City
TORANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
26
Purpose
Capital Improvement Program Assesment
Project
20181105MDM_MARICOPA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 1585
Downstream MH
05 1586
Dir. of Survey
Upstream
Length Surveyed
297.3 ft.
Total Length
297.3 ft.
Structural Index
2
Structural Quick
3A2D
Structural Rating
84
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
86
Pipe schematic from manhole 05 1585 to 05 1586
MH: 05 1585MH: 05 1586upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:35AM5.5 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H5.5 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H12.4 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SL39.1 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H48.3 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES, - H64.6 ft. FC - Fracture Circumferential, from 11 to 04 o'clock, within 8 inches of joint: YES - SL68.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SL79.8 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H93.8 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL115.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H119.5 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL125 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SL130.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SL130.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SL135.8 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - SL144.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H144.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL151.2 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H164.6 ft. MWM - Water Mark, 20 %of cross sectional area164.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H187.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H191.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL191.7 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL197.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish197.1 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H197.1 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H207.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H207.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H212.4 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL212.4 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL217.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H231.7 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SL231.7 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H253 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H257.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H263.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H278.2 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SLIGHT278.2 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE295.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start297.3 ft. MWL - Water Level, 10 %of cross sectional area297.3 ft. MWM - Water Mark, 20 %of cross sectional area297.3 ft. AMH - Downstream Manhole, Survey Begins - 1:00AM

Observation photos (1)

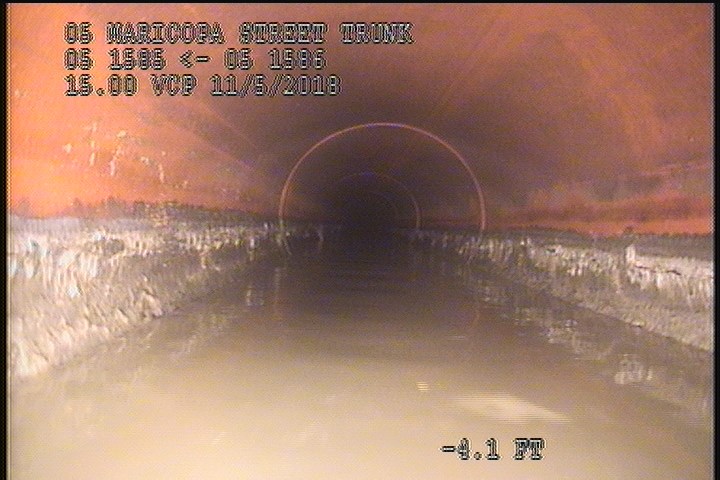

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P06810Work order 0736672

Observations (43)

DistanceCodeObservation
89.6FLH
100.2DAGS—
39.5FLH
84.9FCSL
291.8FCH
44.3FCH
105.6FCSL
203.5FCSL
79.5FLH
0MWL—
228.5FLSL
89.6FLH
166.4FLSL
100.2FCH
146.1FCH
19.1FLSLIGHT
19.1FCHAIRLINE
84.9FCSL
0MWM—
100.2FCH
166.4FLSL
2DAGS—
249FCH
105.6FCSL
152.7FCH
65.6FCSL
0AMH1:00AM
33.4FLH
132.7MWM—
284.9FCSL
152.7FCSL
258.2FCH
291.8FCH
177.8FCSL
181.5FLH
161.5FCSL
232.7FCSL
132.6FLH
297.3AMH1:35AM
217.5FCH
65.6FCH
109.6FLH
172.3FCSL

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2018-11-05T00:43:48-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
