Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 2, 2018, 07:58 AM

  • A 0355_A 0354_1122018_013053.mp4

Date
11/02/2018
W/O
0730367
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00325
PipeID
P08265
Time
12:58 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1037
Sewer Name
A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
City
ROSEMEAD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
16
Purpose
Routine Assessment
Project
20181002MDM_JOA_1A_SAN_JOSE_CREEK_WRP_INTRECEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
A 0355
Downstream MH
A 0354
Dir. of Survey
Downstream
Length Surveyed
801.8 ft.
Total Length
801.9 ft.
Structural Index
2
Structural Quick
2300
Structural Rating
6
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole A 0355 to A 0354
MH: A 0355MH: A 0354downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:20AM0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 0 %of cross sectional area - DRY LINE2 ft. MGO - General Observation - MAG COAT 98% START2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE182.1 ft. MGO - General Observation - MAG COAT 80% START182.1 ft. SSS - Surface Spalling, from 02 to 03 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE613.5 ft. MGO - General Observation - 33" RCP731 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISREING C0NCRETE731 ft. MGO - General Observation - 80% MAG COAT FINISH801.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - BLISTERING C0NCRETE801.9 ft. AMH - Downstream Manhole, Survey Ends - 2:45AM

Observation photos (7)

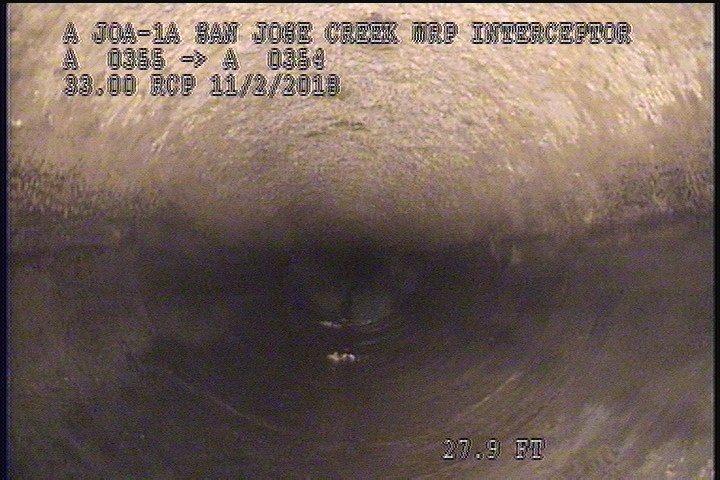

  • General Observation - MAG COAT 98% START

    2 ft. - General Observation - MAG COAT 98% START

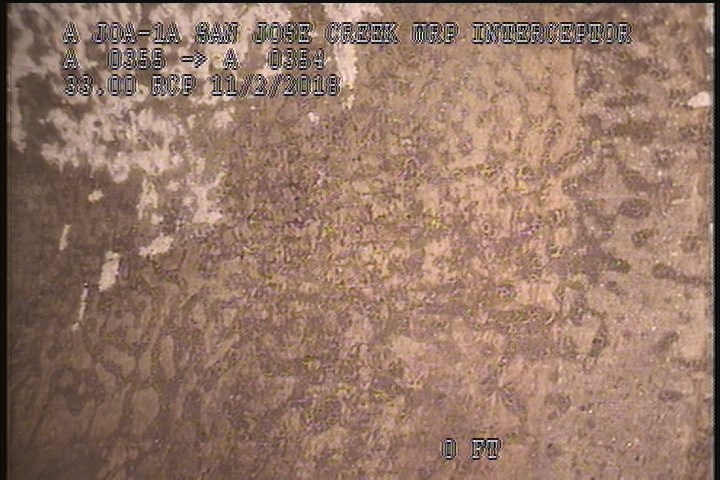

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING CONCRETE

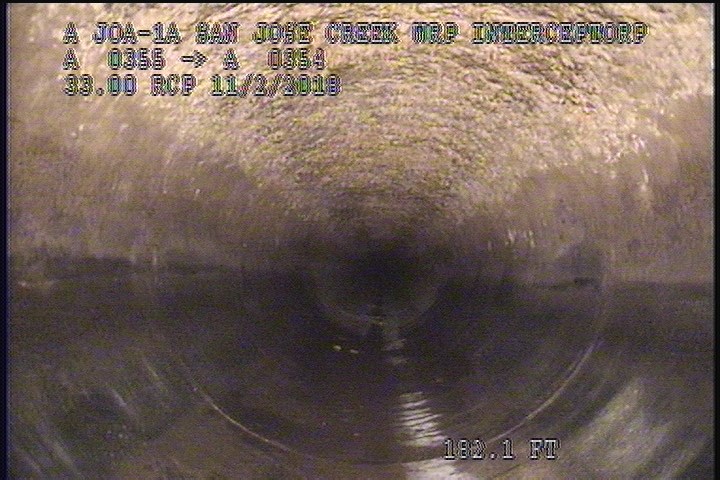

  • General Observation - MAG COAT 80% START

    182.1 ft. - General Observation - MAG COAT 80% START

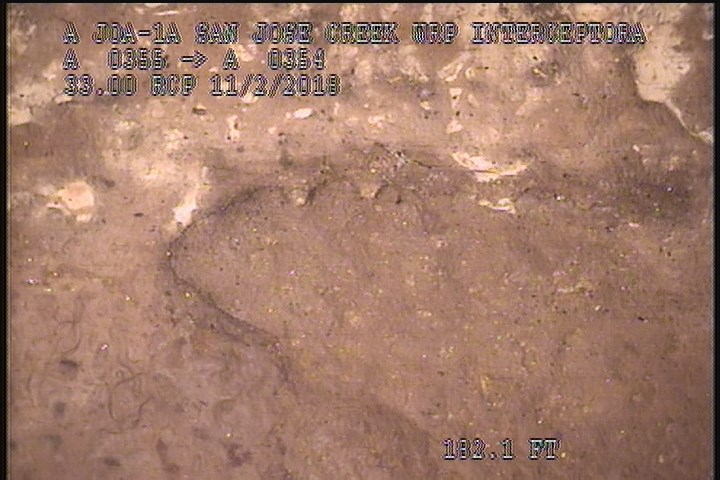

  • Surface Spalling, from 02 to 03 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

    182.1 ft. - Surface Spalling, from 02 to 03 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

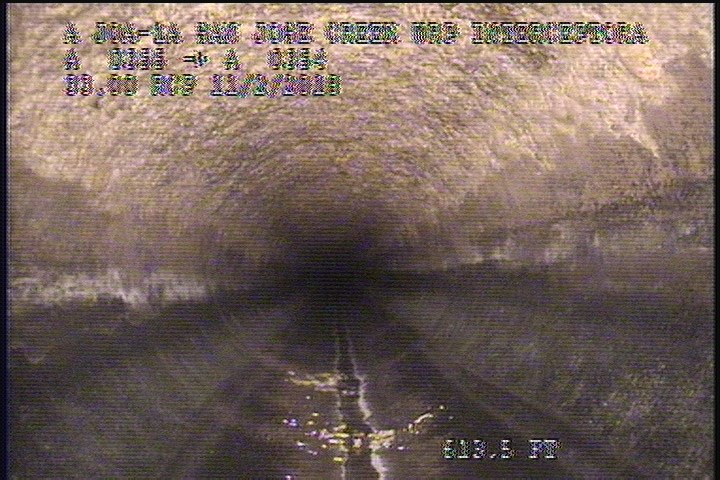

  • General Observation - 33" RCP

    613.5 ft. - General Observation - 33" RCP

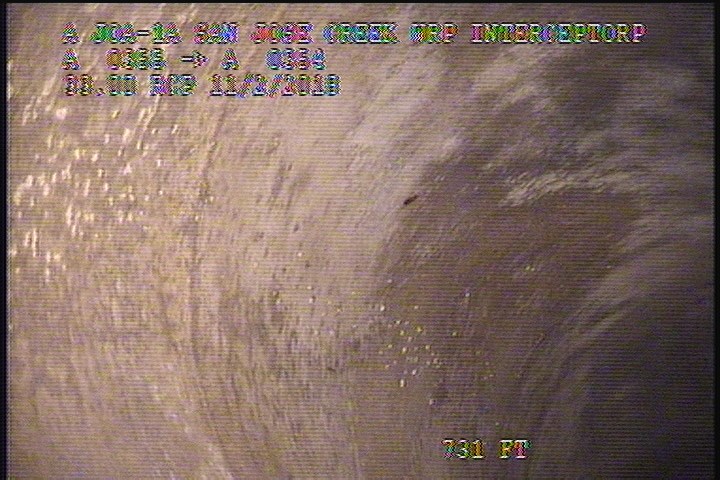

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISREING C0NCRETE

    731 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISREING C0NCRETE

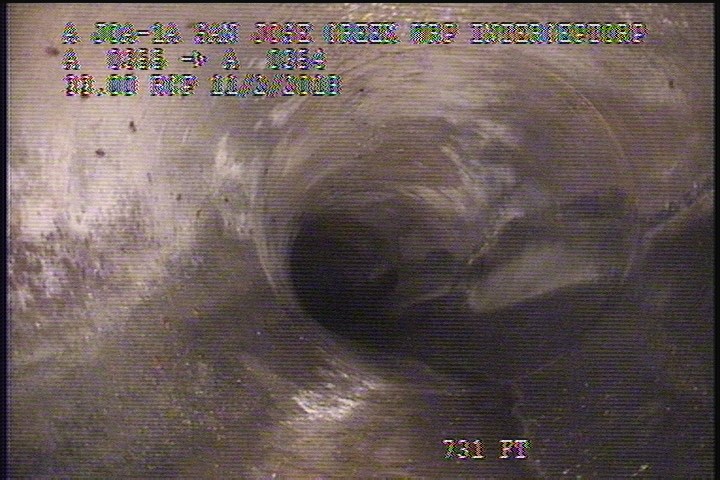

  • General Observation - 80% MAG COAT FINISH

    731 ft. - General Observation - 80% MAG COAT FINISH

All inspections of P08265Work order 0730367

Observations (12)

DistanceCodeObservation
801.9AMH2:45AM
801.2SSSBLISTERING C0NCRETE
182.1MGOMAG COAT 80% START
731SSSBLISREING C0NCRETE
2MGOMAG COAT 98% START
731MGO80% MAG COAT FINISH
182.1SSSBLISTERING CONCRETE
613.5MGO33" RCP
2SSSBLISTERING CONCRETE
0AMH1:20AM
0MWM—
0MWLDRY LINE

Properties (7)

custom_field_three
BLISTERING CONCRETE
custom_field_two
4
customer
LACSD
datetime
2018-11-02T00:58:40-07:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
year_laid
19800725
