Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 11, 2017, 05:25 AM

  • 18 0034_18 0033 _10072017_222647.mp4

Date
07/10/2017
W/O
641208
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00713
PipeID
P13850
Time
10:25 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4640
Sewer Name
18 WALNUT WAY TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
15
Purpose
Routine Assessment
Project
WO_641208_TV18059_JUN2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 0033
Downstream MH
18 0034
Dir. of Survey
Upstream
Length Surveyed
316.6 ft.
Total Length
316.7 ft.
Structural Index
3
Structural Quick
3L23
Structural Rating
195
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
195
Pipe schematic from manhole 18 0033 to 18 0034
MH: 18 0033MH: 18 0034upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 00341.5 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish18.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"23.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"31.1 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES73 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"79.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"125.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"131.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"133.3 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES167 ft. CL - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES168.6 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 6"169.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"174.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"228.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"258.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"288.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"314.4 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start314.4 ft. MGO - General Observation - MAG COAT316.7 ft. MWM - Water Mark, 10 %of cross sectional area316.7 ft. AMH - Downstream Manhole, Survey Begins - 18 0033316.7 ft. MGO - General Observation - CONNECTION AT MH 9 ACTIVE316.7 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (4)

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.3 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

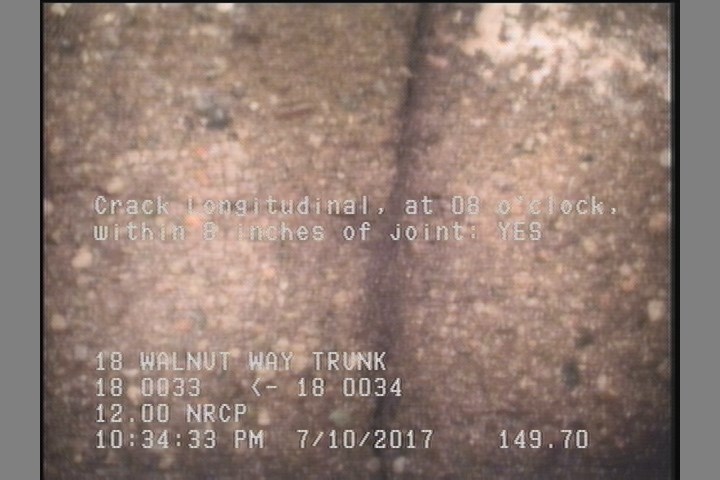

  • Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

    149.7 ft. - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

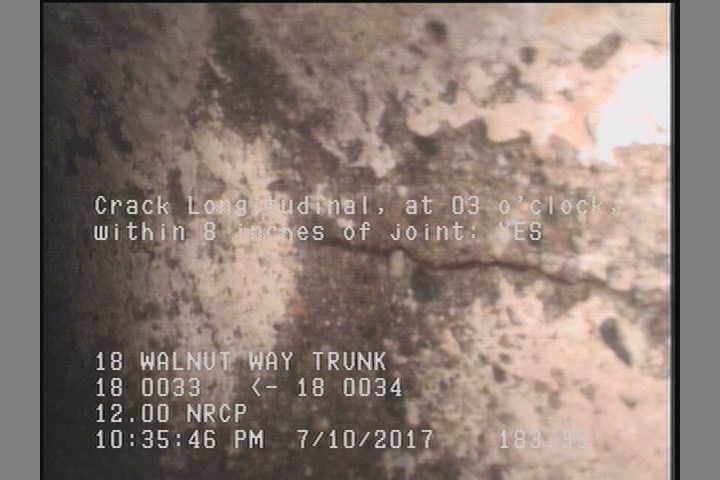

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    183.4 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

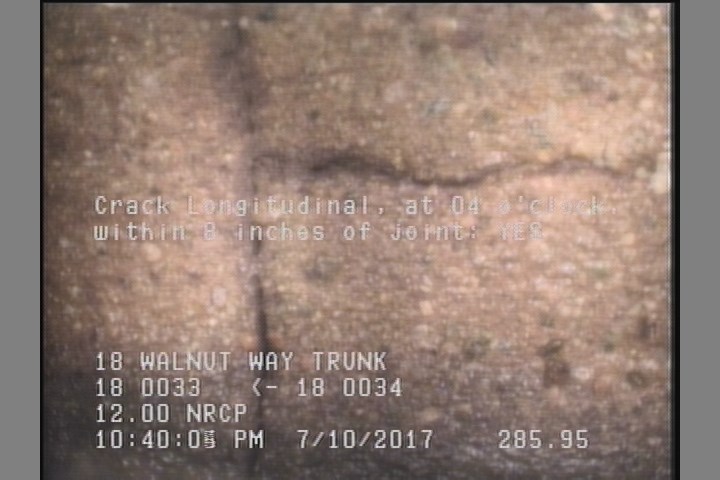

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    285.6 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

All inspections of P13850Work order 641208

Observations (23)

DistanceCodeObservation
0MWM—
2.3SAV—
148.1TF—
0AMH18 0033
2.3MGOMAG COAT
0MGOCONNECTION AT MH 9 ACTIVE
243.7TFC—
149.7CL—
147.1TFC—
297.9TF—
191.1TFC—
88.4TFC—
57.9TF—
0MWL—
142.3TFC—
28.6TFC—
316.7AMH18 0034
285.6CL—
237.4TF—
184.8TF—
315.2SAV—
183.4CL—
293TFC—

Properties (6)

additional_info
SC345386
custom_field_two
3
customer
LACSD
datetime
2017-07-10T22:25:43-07:00
documentation
PROPIPE
is_lateral_inspection
false
